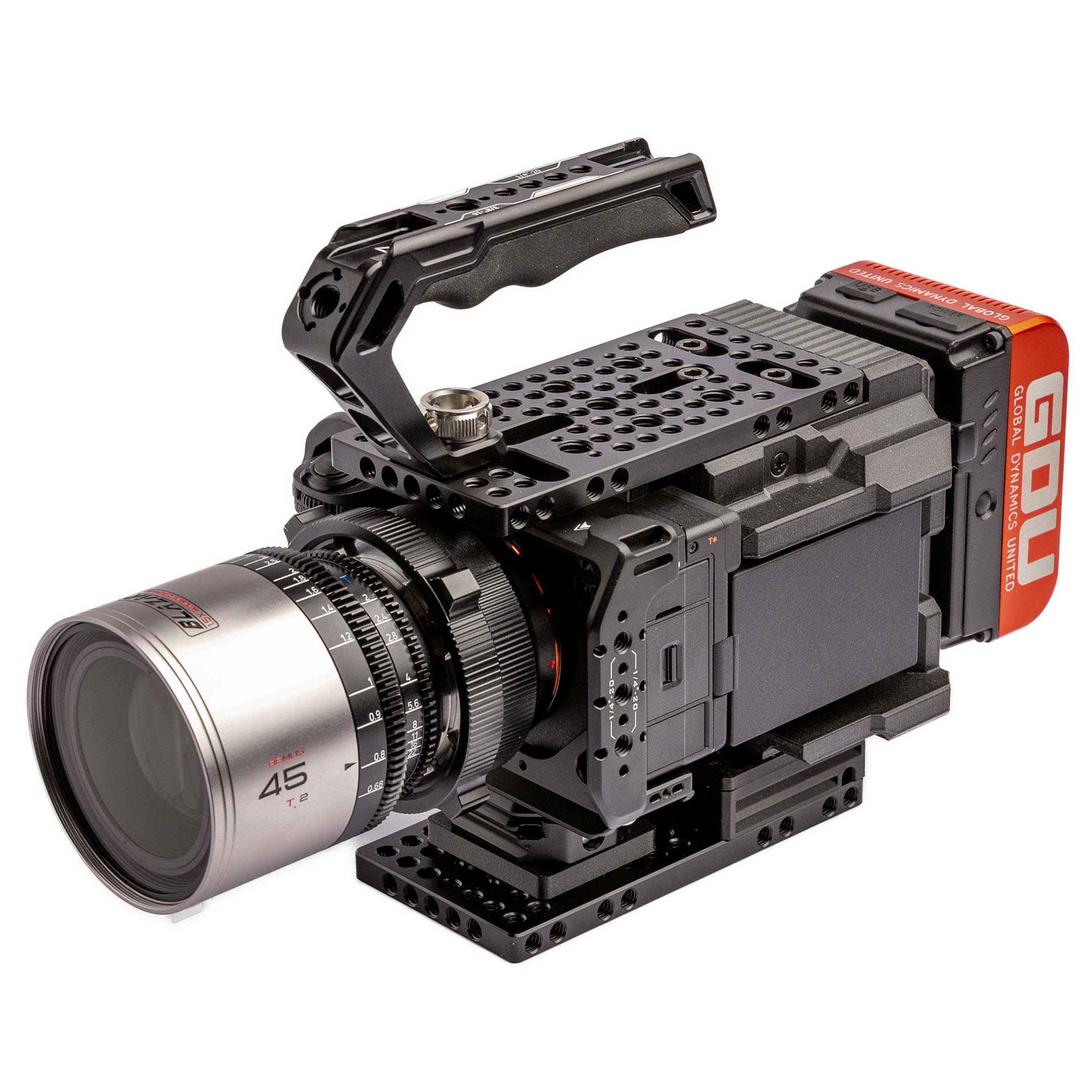

CineBack® V2 for Sony ZV-E10 and ZV-E10 II

Turn your Sony Sony ZV-E10 or ZV-E10 II into a cinema camera with CineBack® V2!

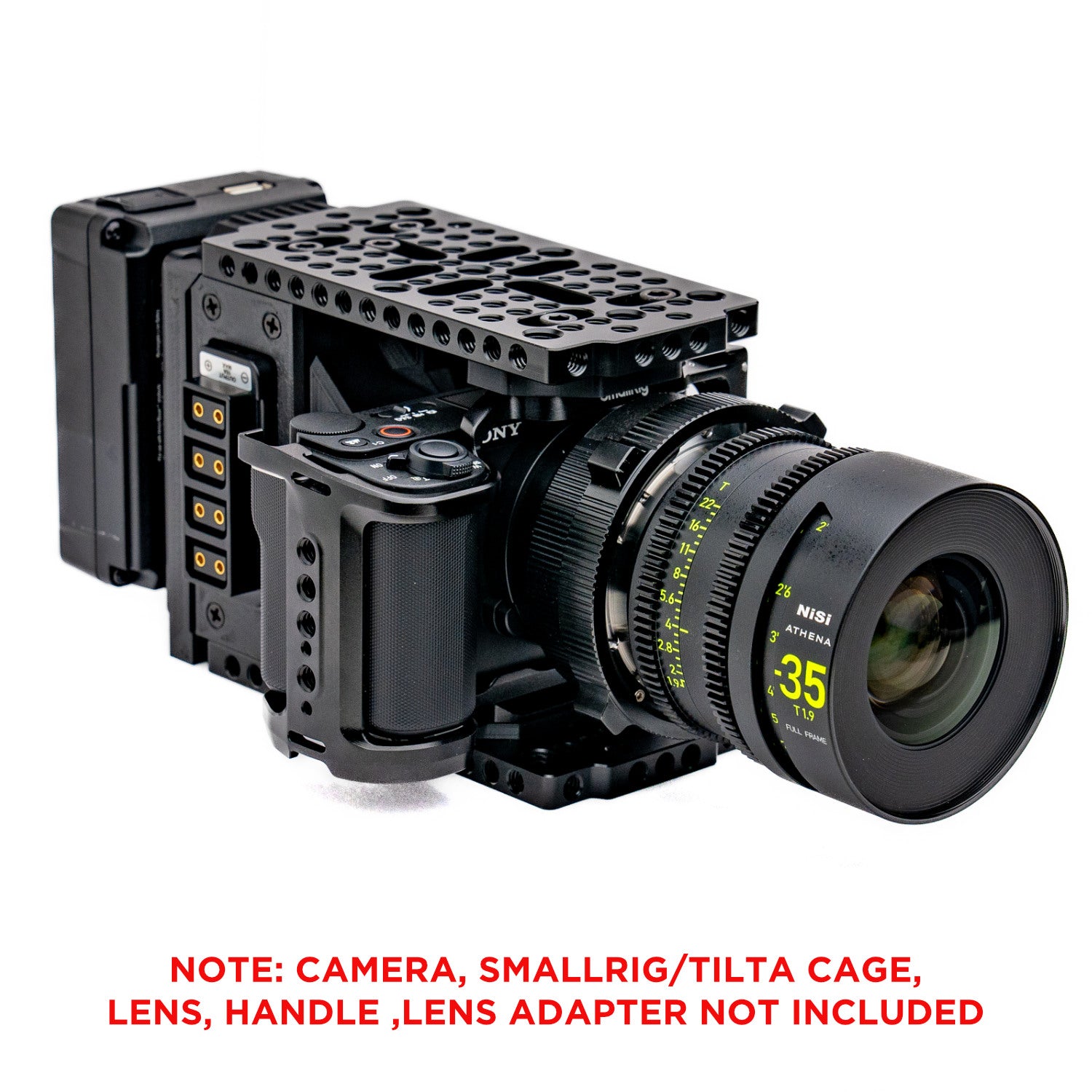

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, v-mount or gold mont power, D-tap and USB-C PD outputs, cable management and other features that you can learn about in the video and description below.

7 Sony Cameras in 1 CineBack®!

This CineBack® V2 is also compatible with the Sony ZV-E1, ZV-E10, ZV-E10 II, a7C, a7c II, a7C R, and the a6700. Wrong Camera? View Other CineBack® Models Here!

Required Gear

To get this version of CineBack® working, you will need a SmallRig Cage:

• SmallRig ZV-E10 Cage (Models 3531, 3538 or 3538B)

• SmallRig ZV-E10 II Cage (Model 4867)

CineBack® V2 ZV-E10/II Features

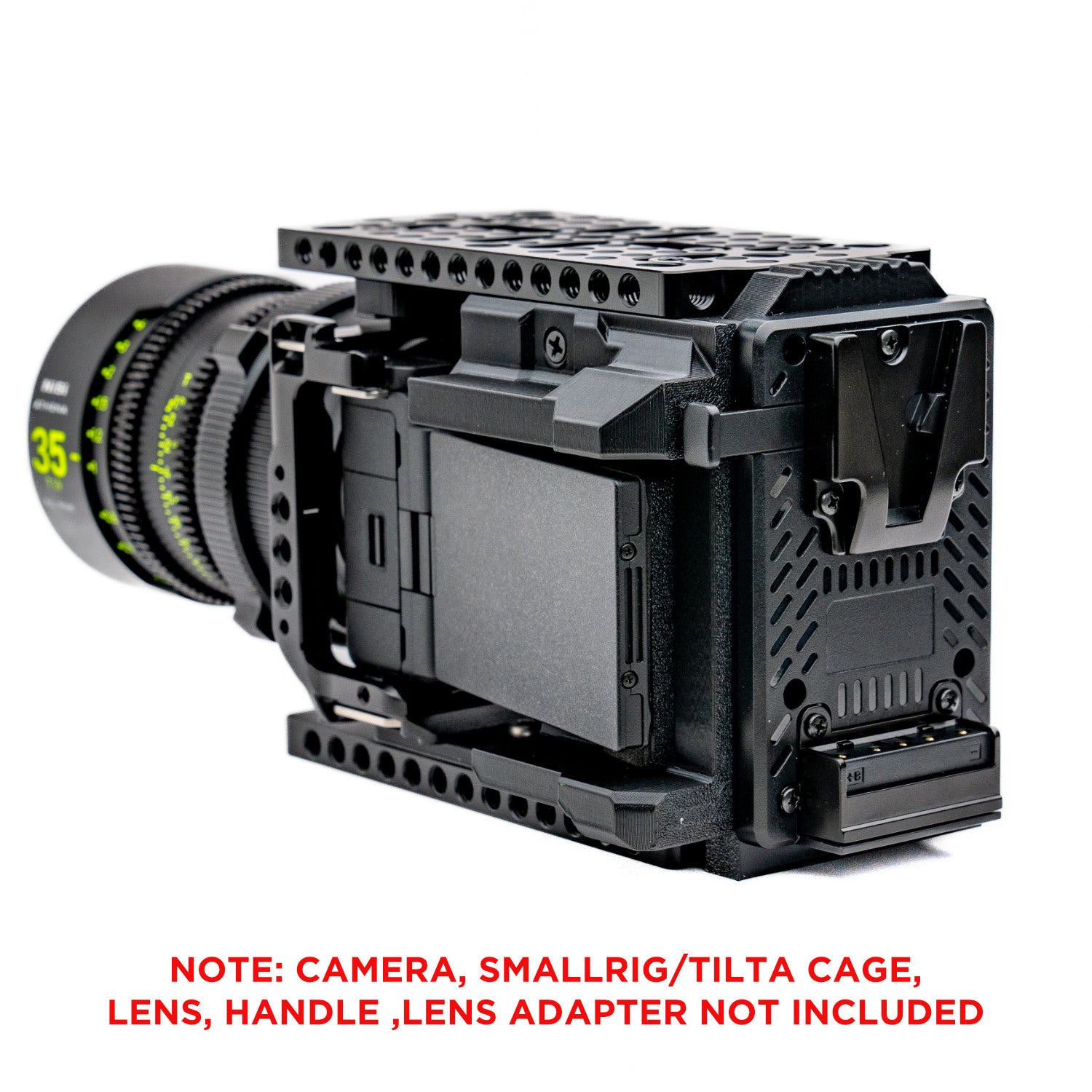

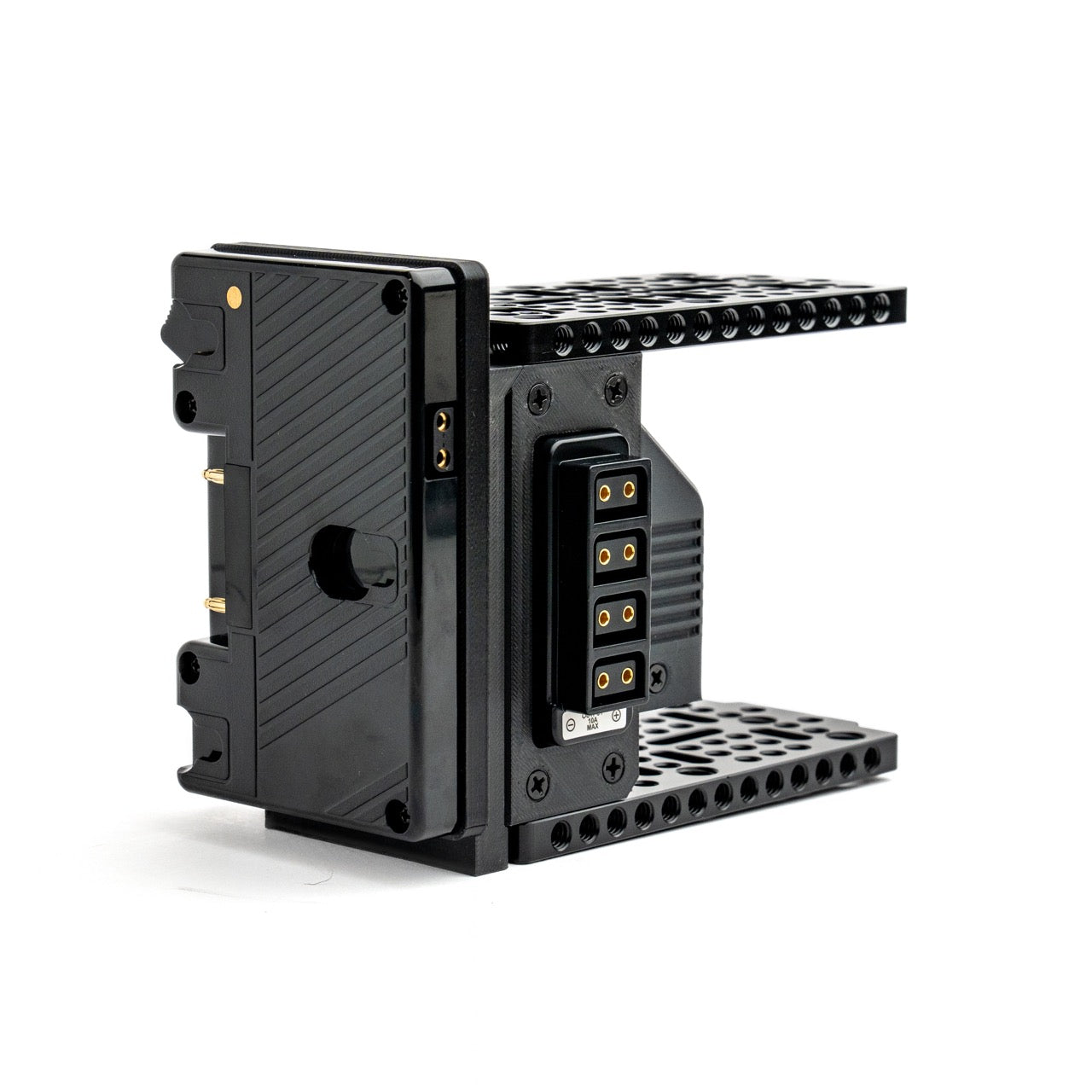

• V-Mount or Gold Mount battery plate for longer run time
• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here)

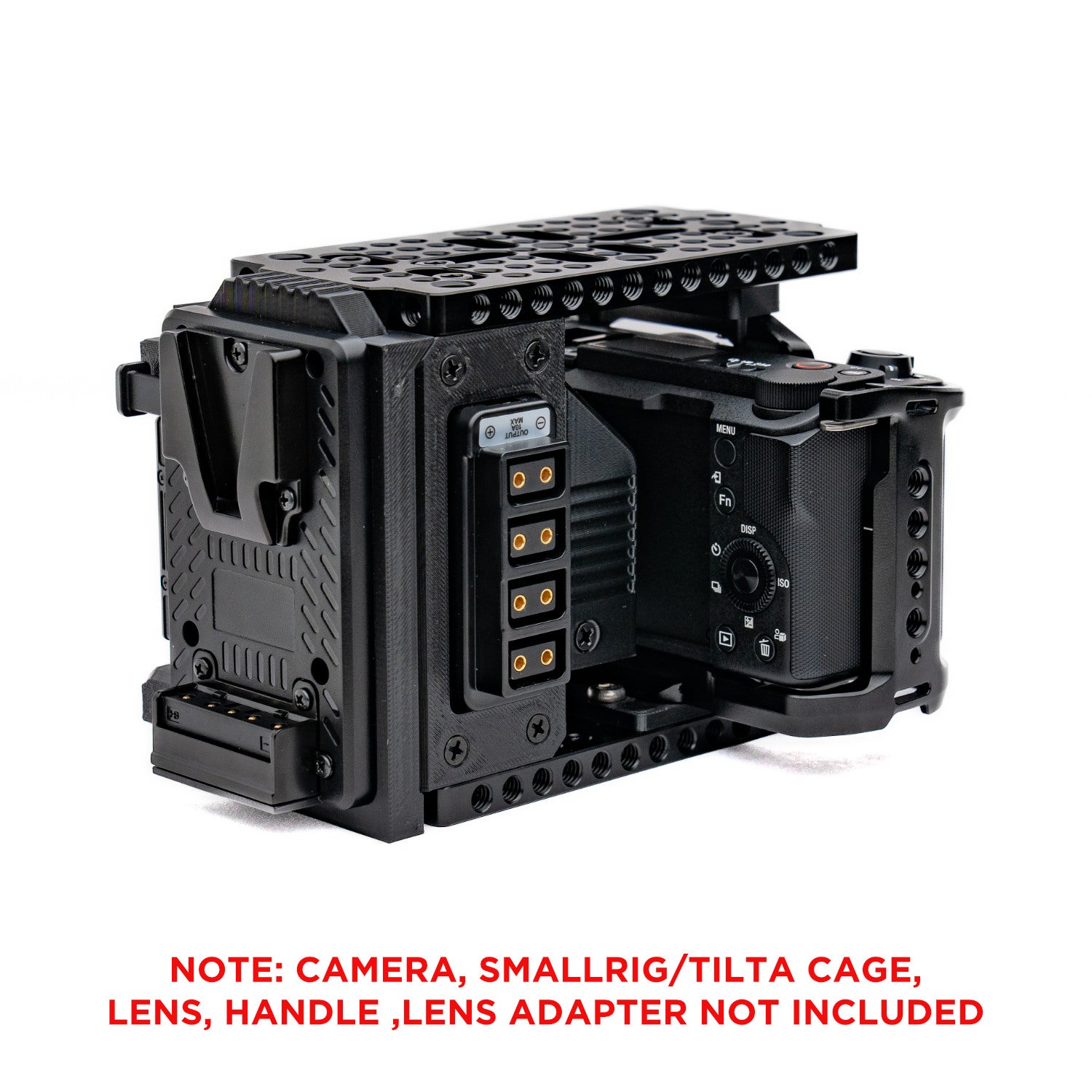

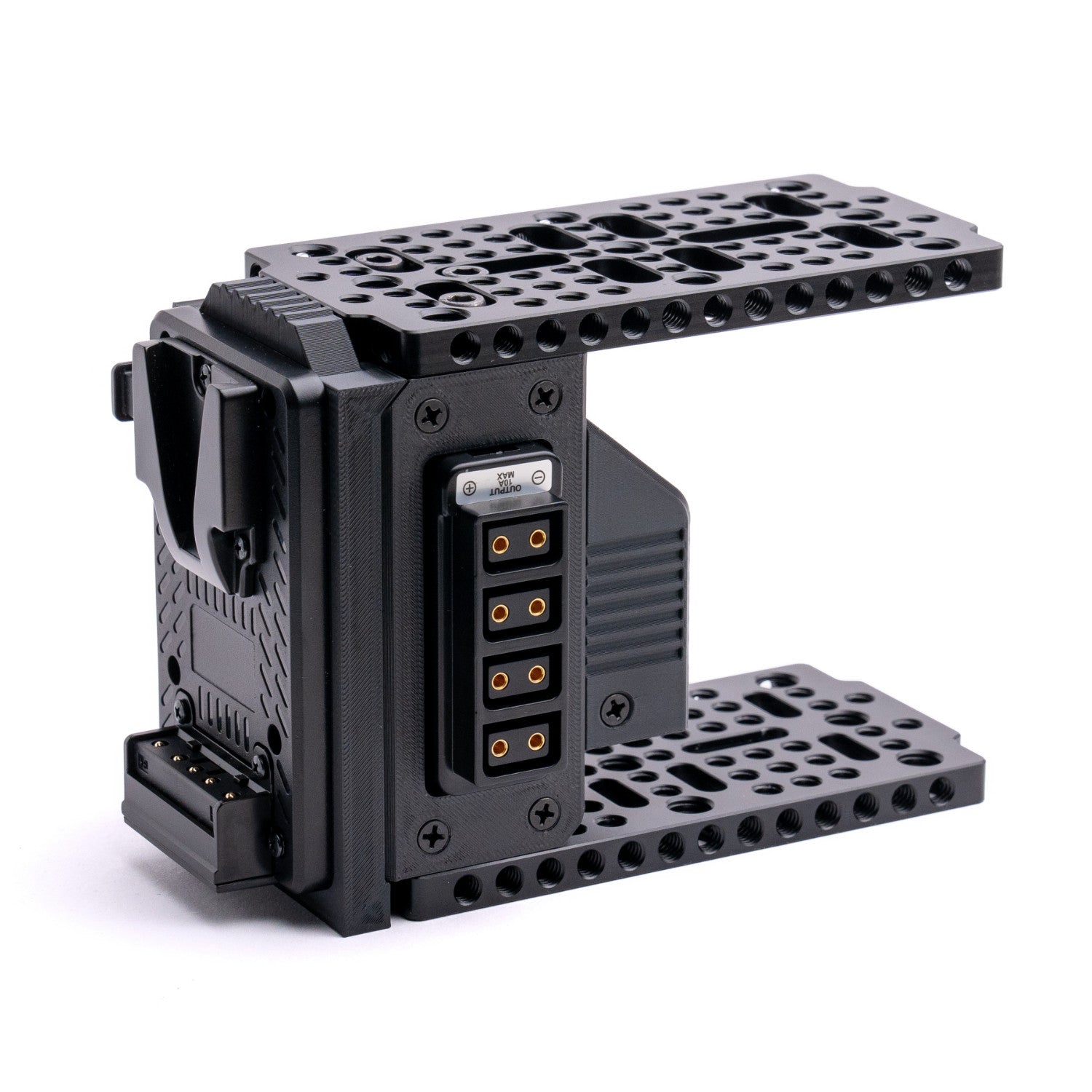

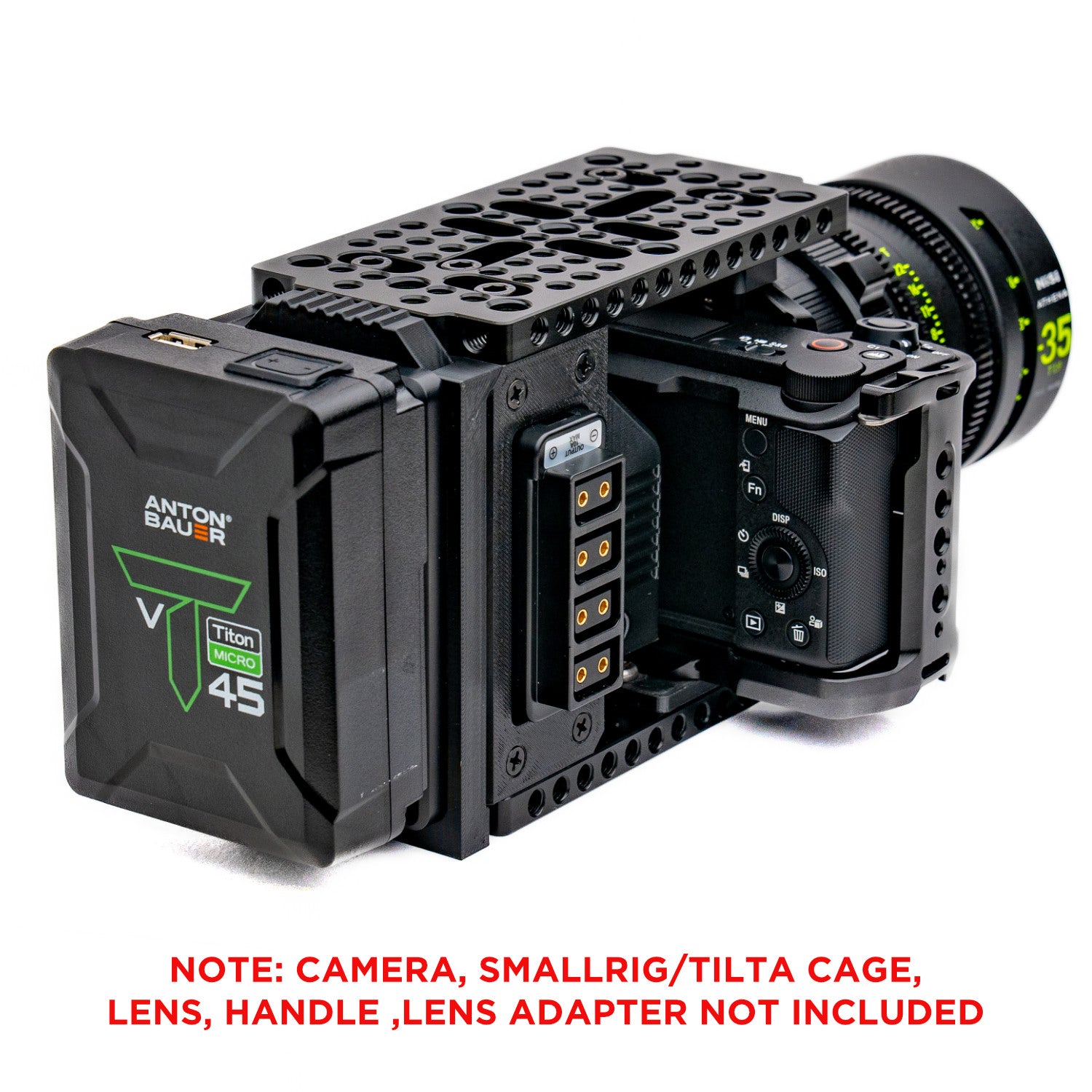

• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories
• Compatible with the CineBack® Quick Release Module

• Cable management and storage compartment and with cable routing built in (check out our USB-C right angle cables here)

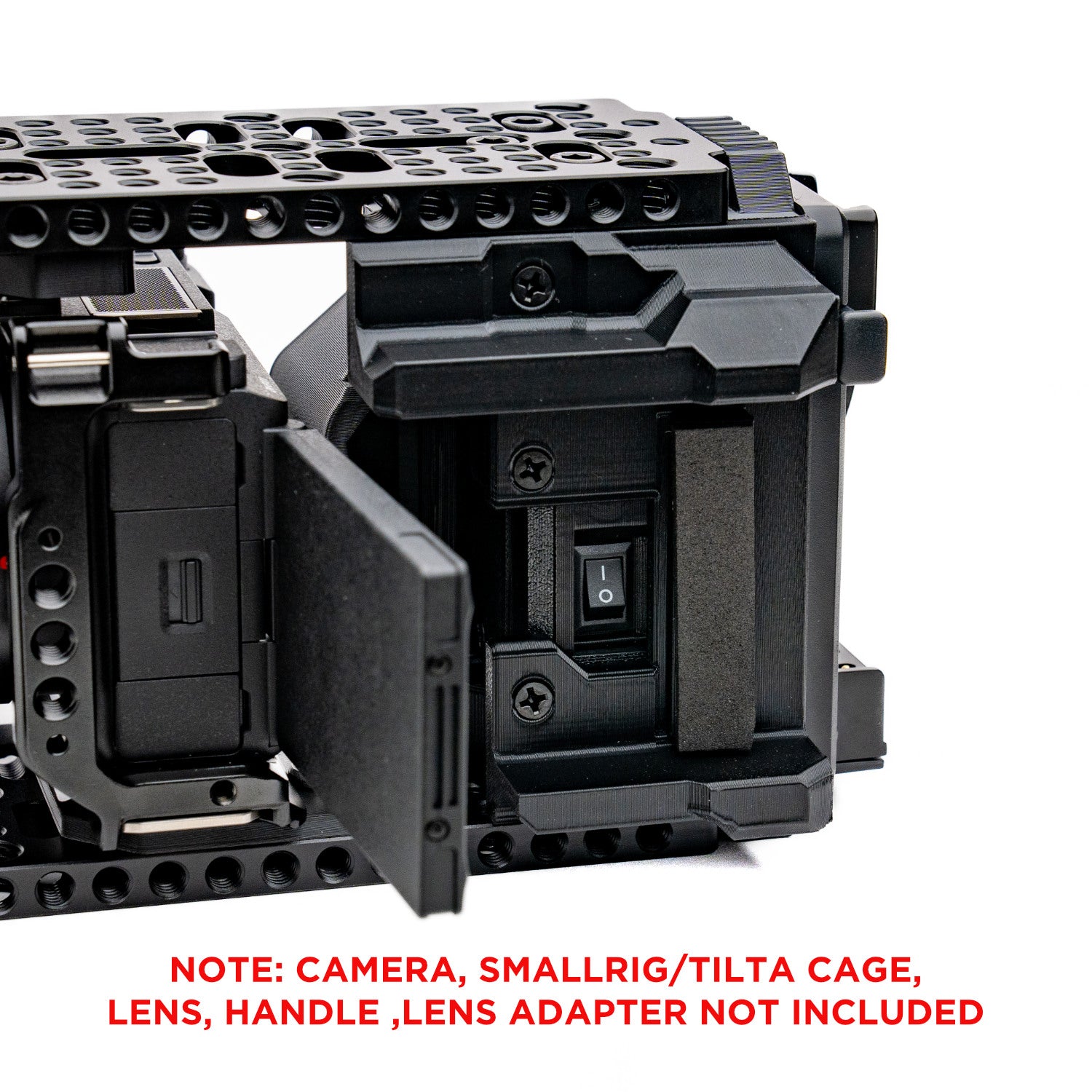

• Power switch to completely cut power so there is no battery drain

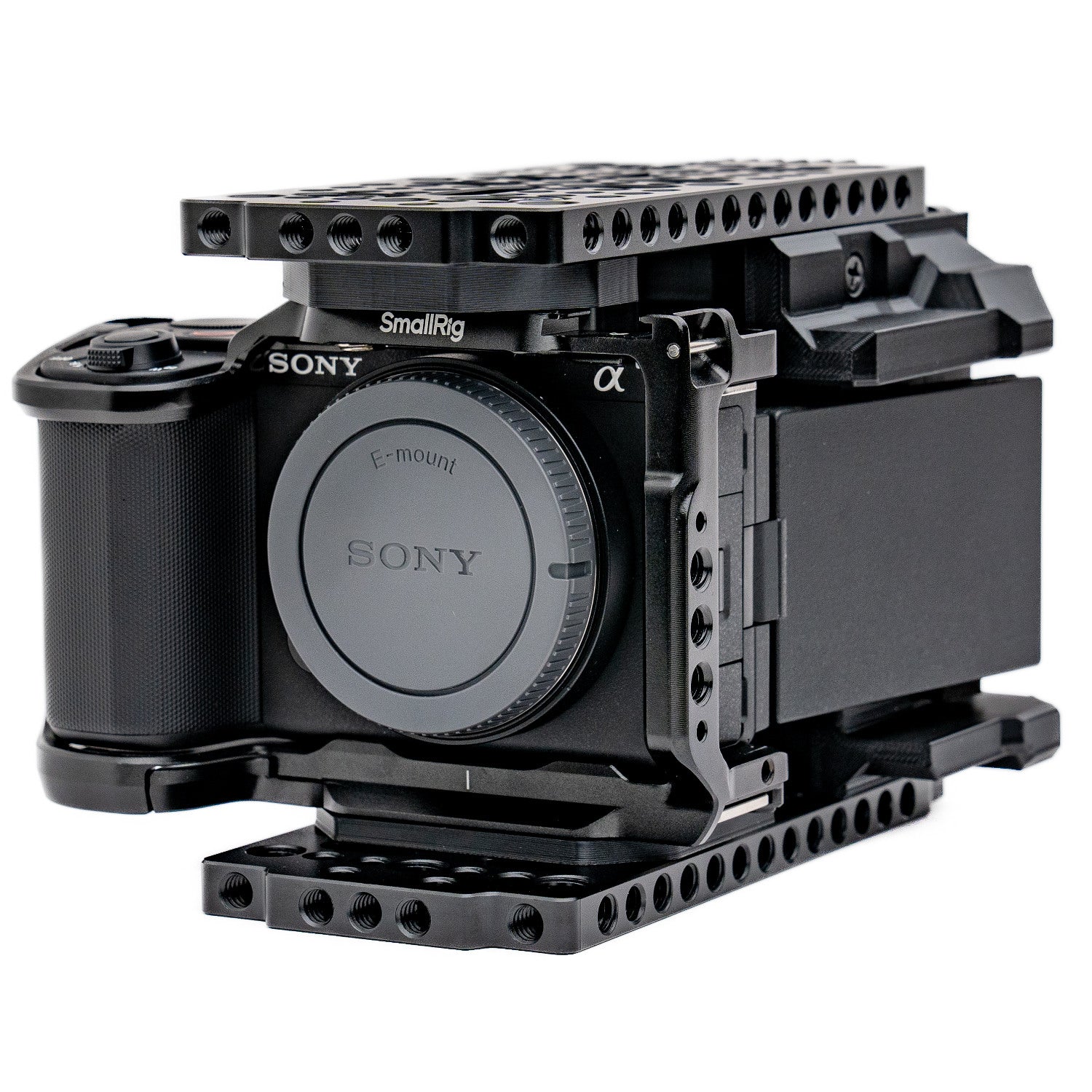

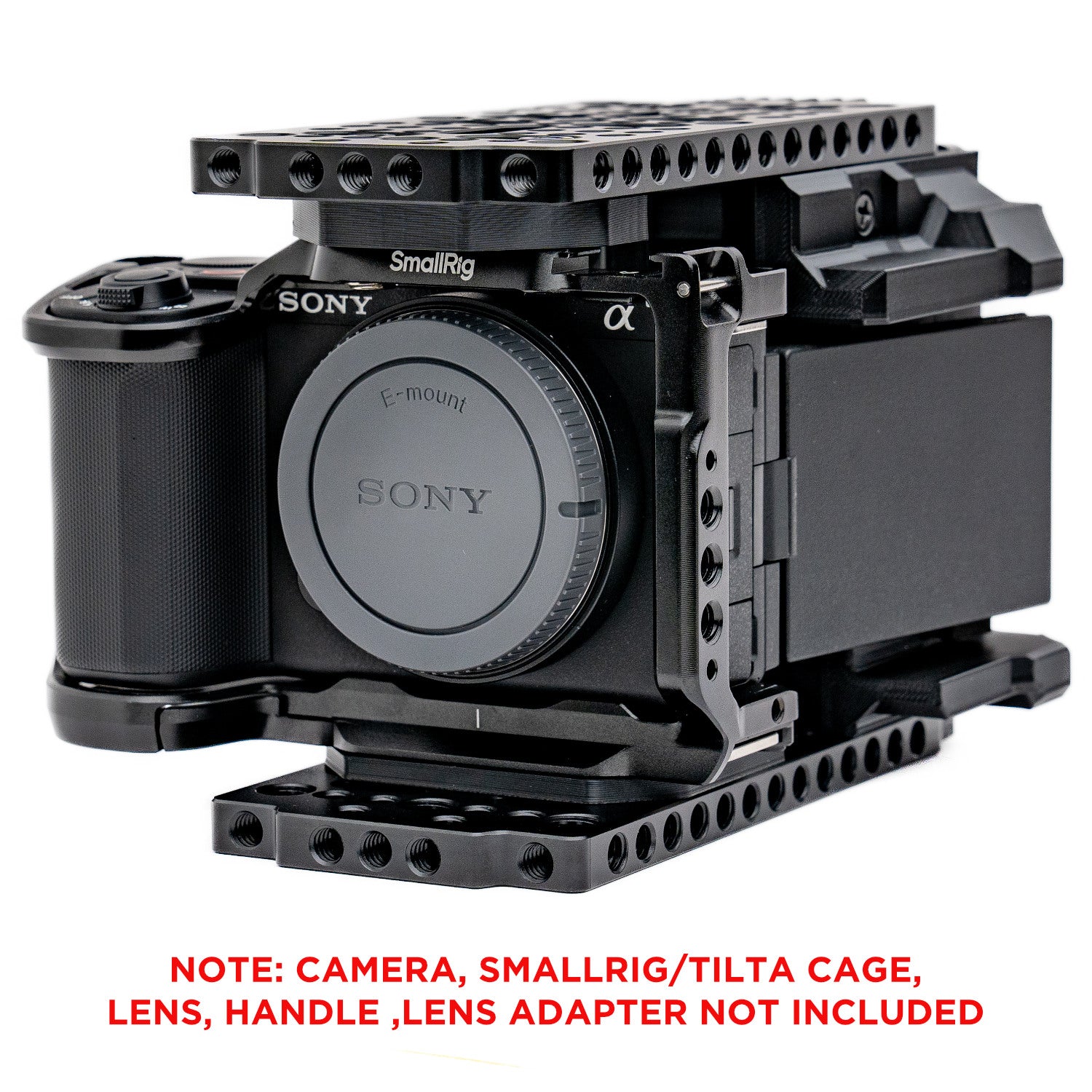

• Screen side mount allowing you to use your camera screen in cine mode, open or closed
• Top and bottom cheese plates for mounting accessories and other rigging gear
• Modular with future accessories possible (see all CineBack® accessories here)
• Compatible with the Tilta Cooling fan for a6700 (Fan only compatible with the Sony a6700)


Power Cables

You can power the camera from via the USB-C Power Delivery jacks on the side using our right angle USB-C cables which are the perfect length for CineBack®. Alternatively yo can also use the D-Tap jacks on CineBack® with a D-Tap dummy battery to power your camera.

Quick Release Compatibility

• Quick Release Module - This spacer kit allows you to use the Falcam F38 Quick Release Plate.
• Falcam F38 Quick Release Combo  - Use this with the Quick Release Kit mentioned above to add quick release functionality to your CineBack®

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices
• 36W max with standard 14-16V v-mount batteries and 65W max with 26V v-mount batteries
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
