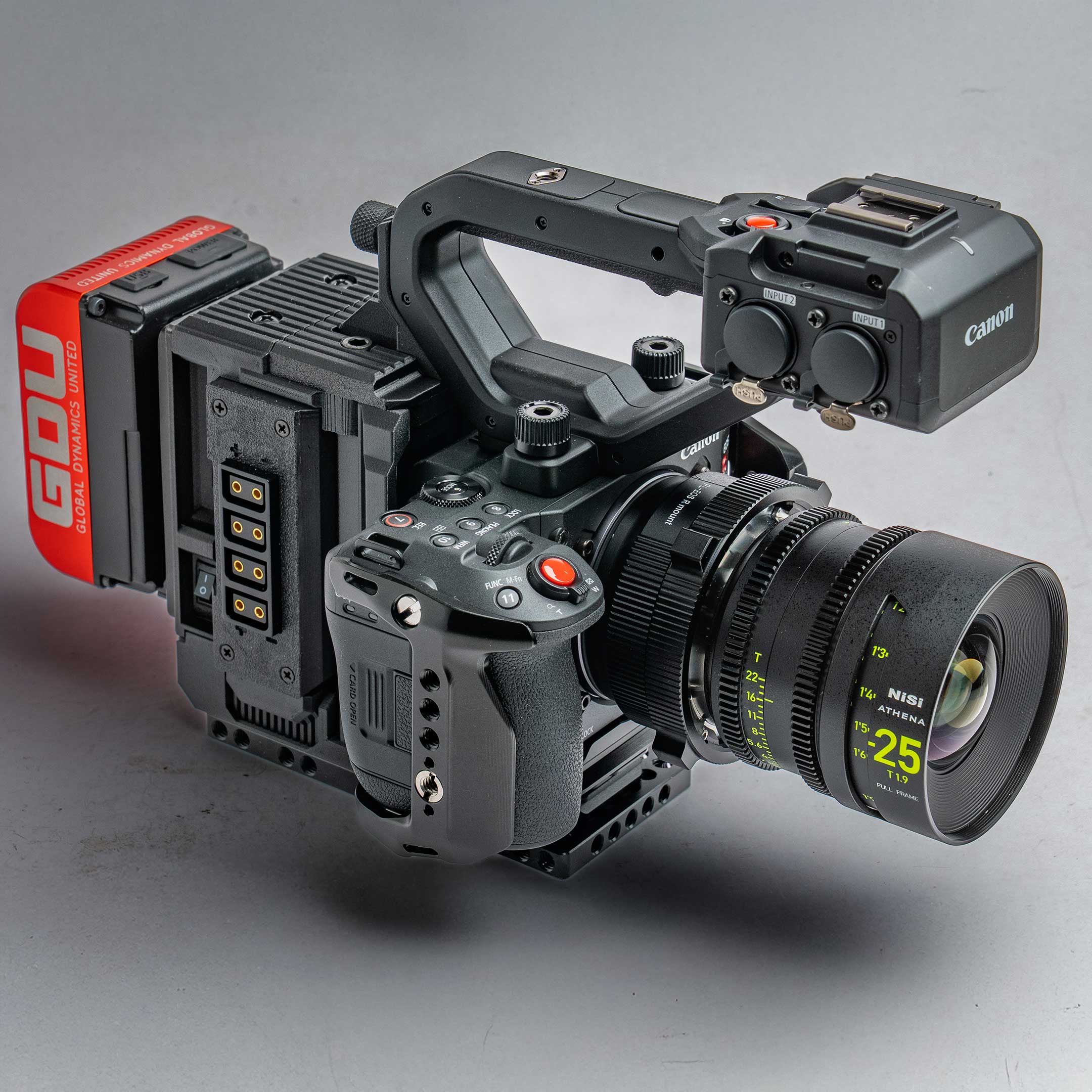

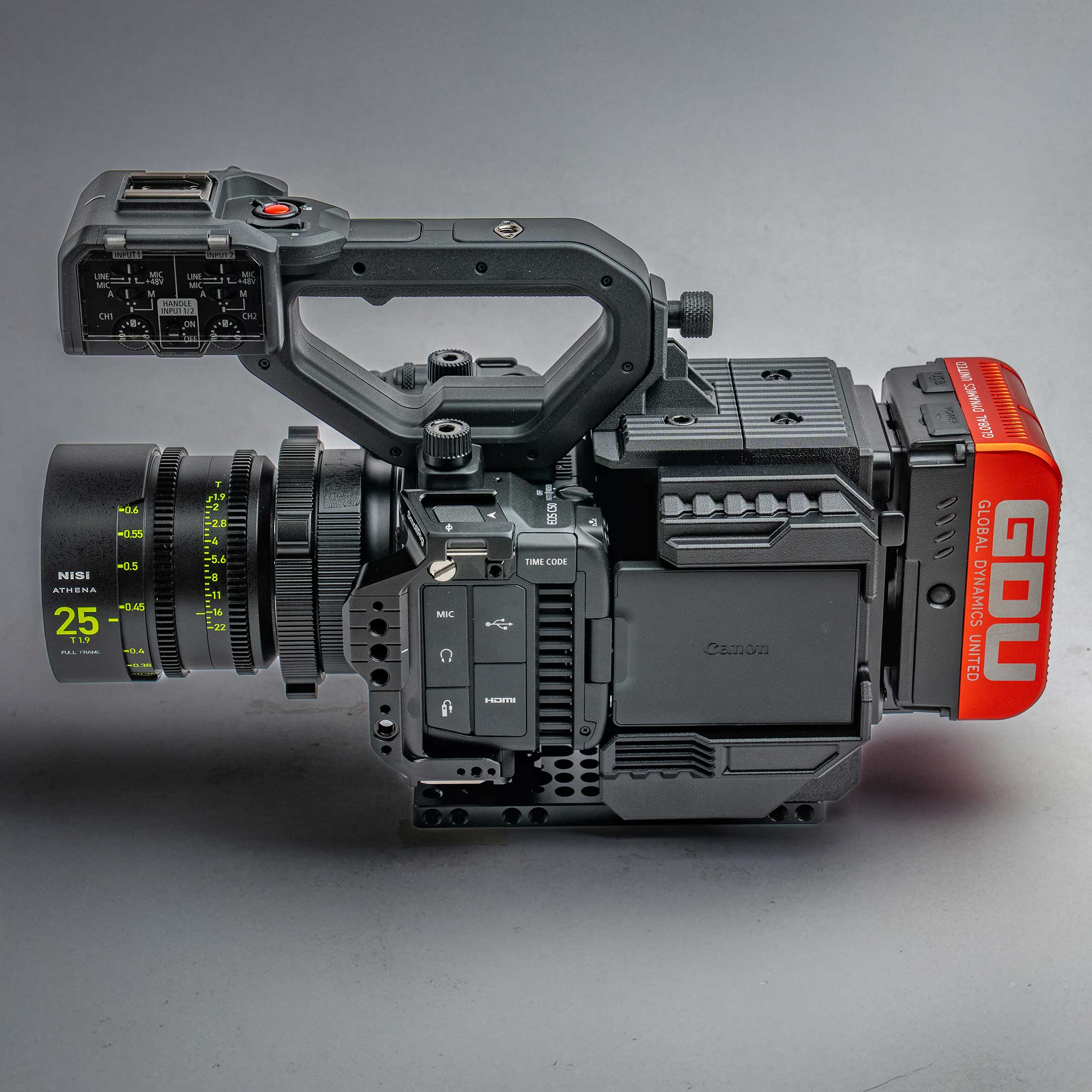

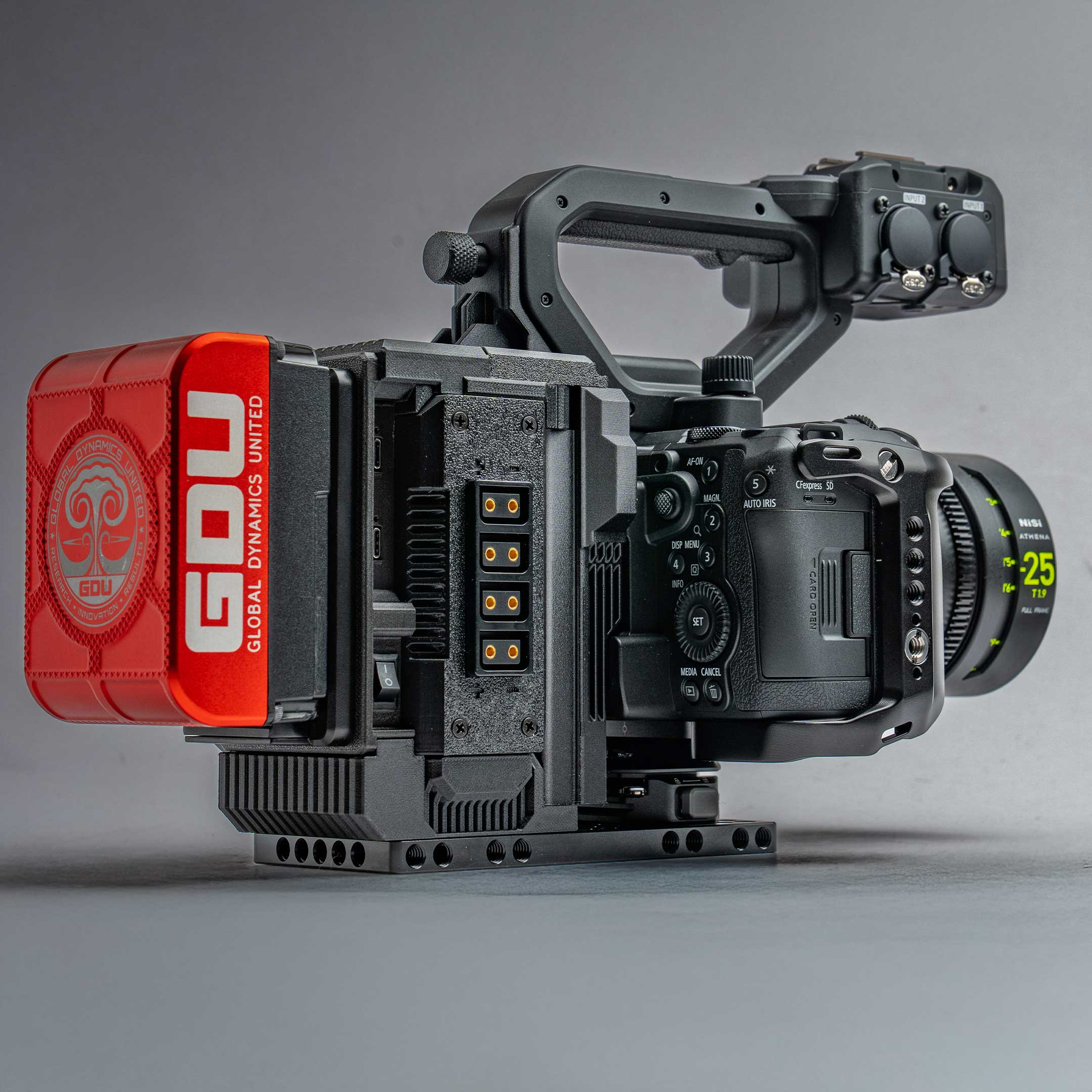

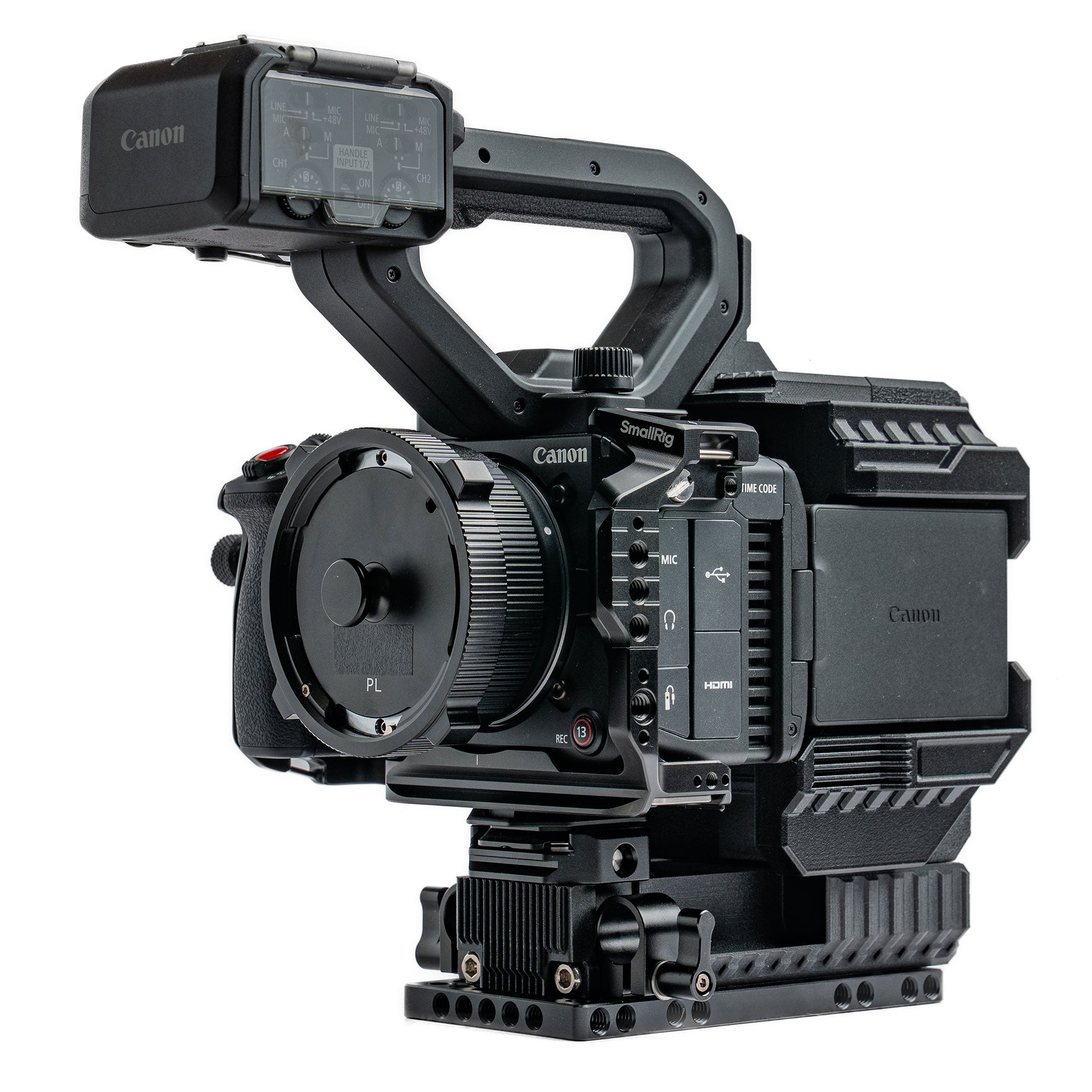

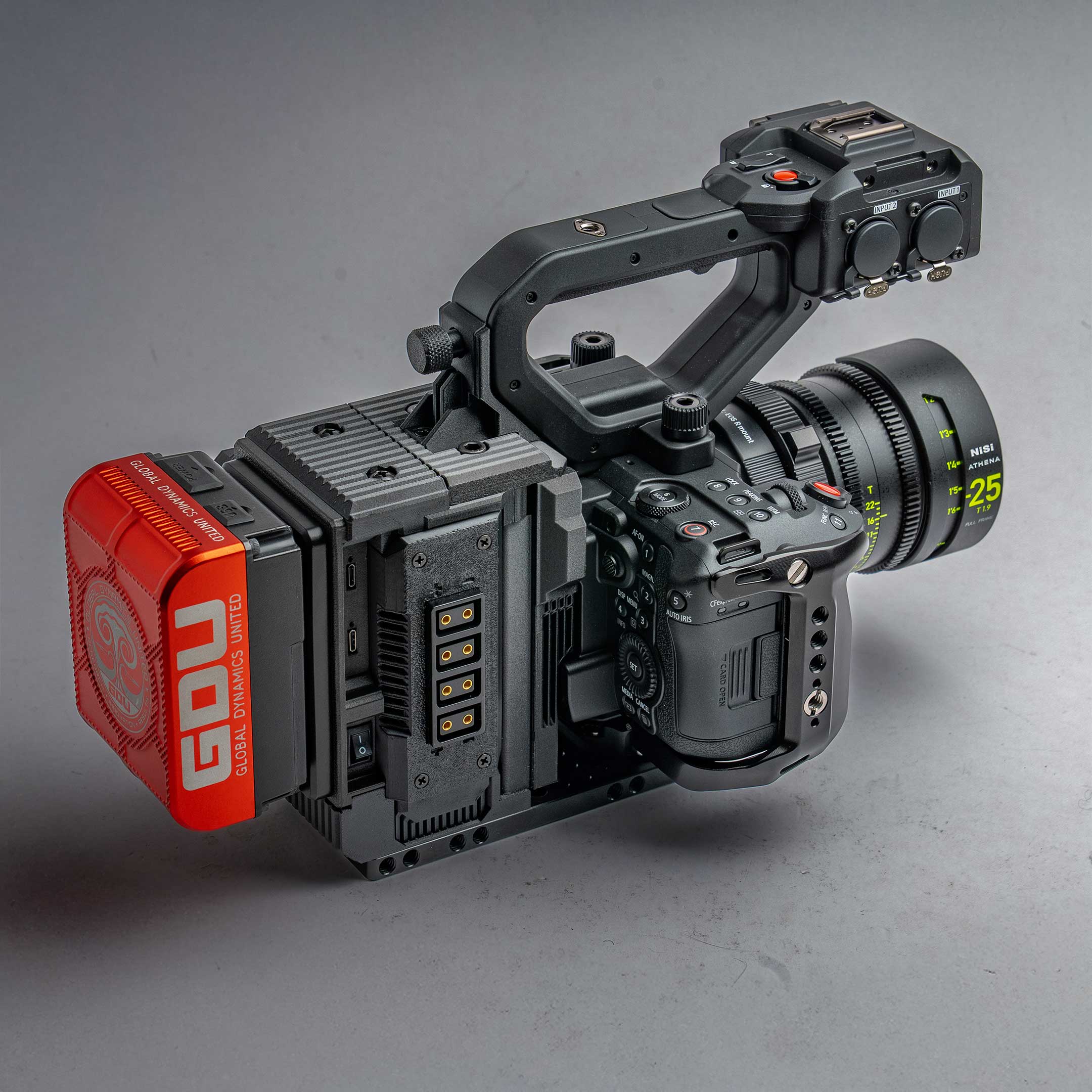

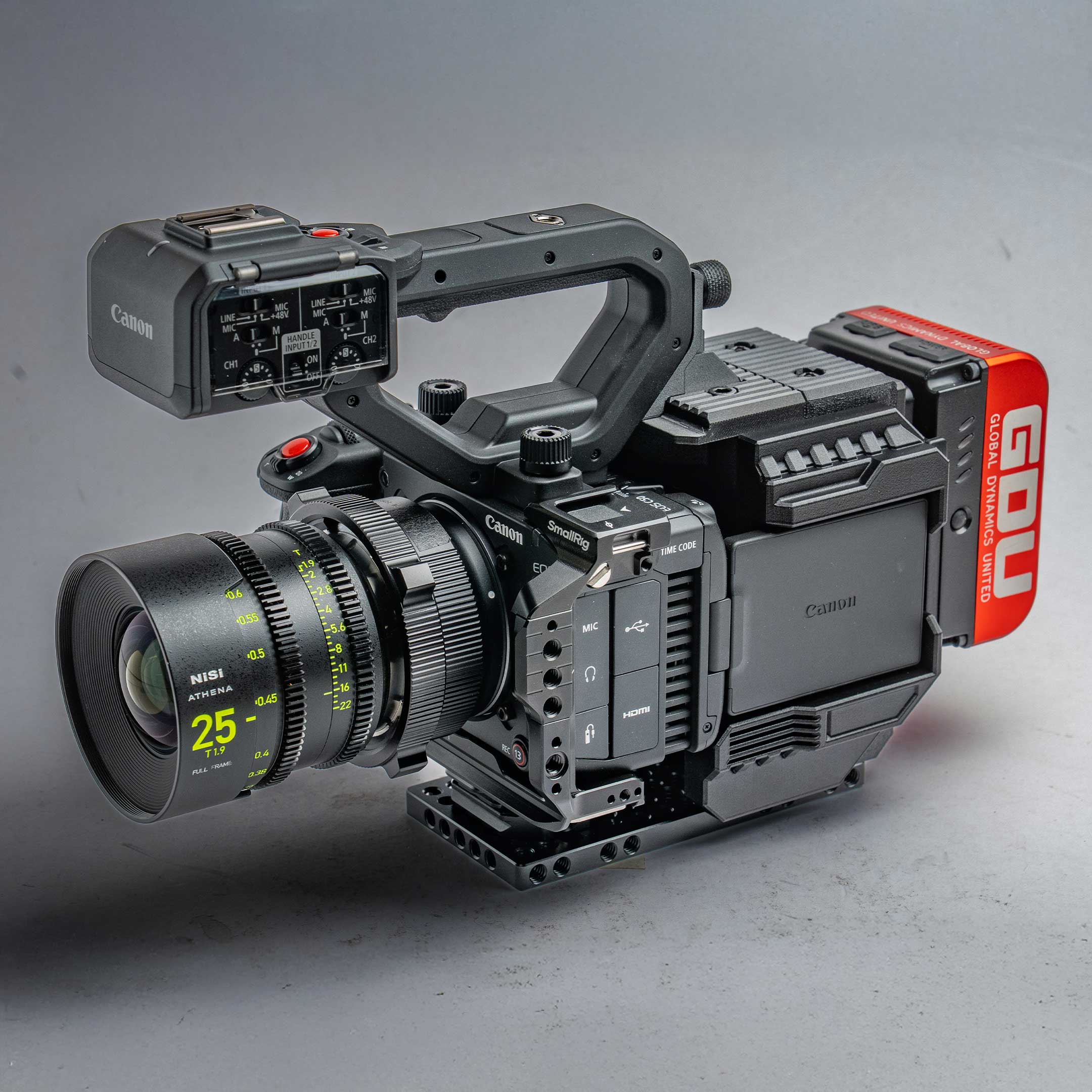

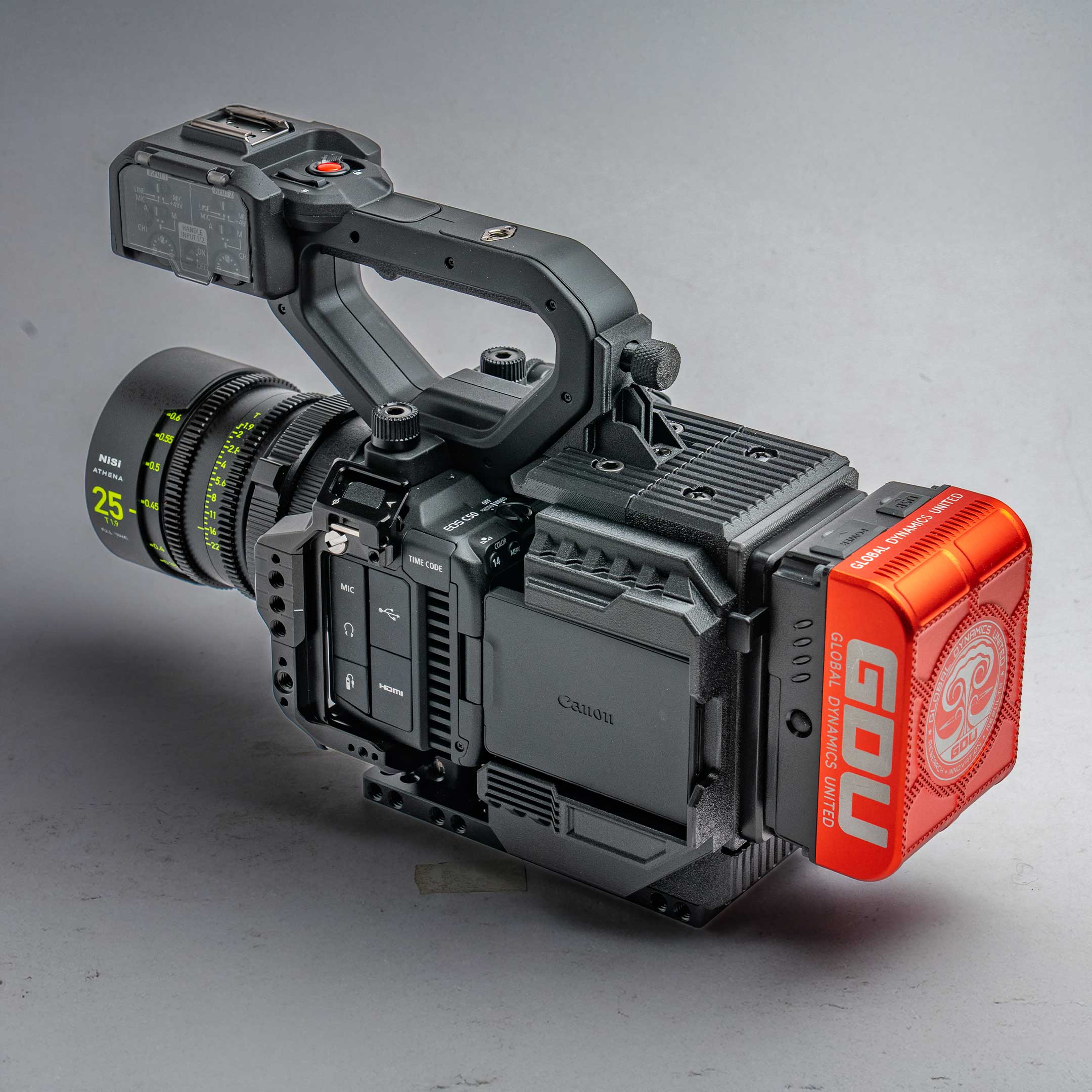

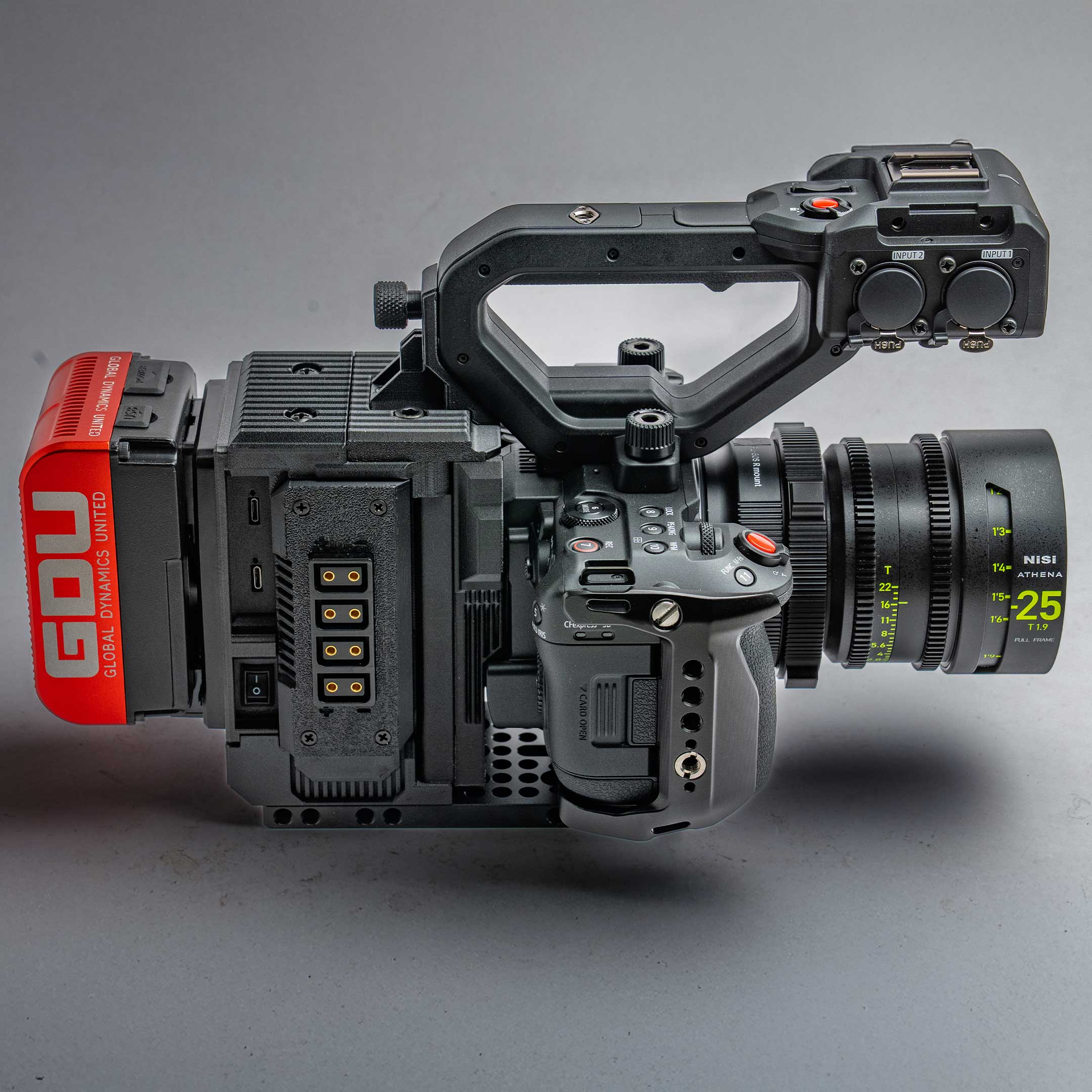

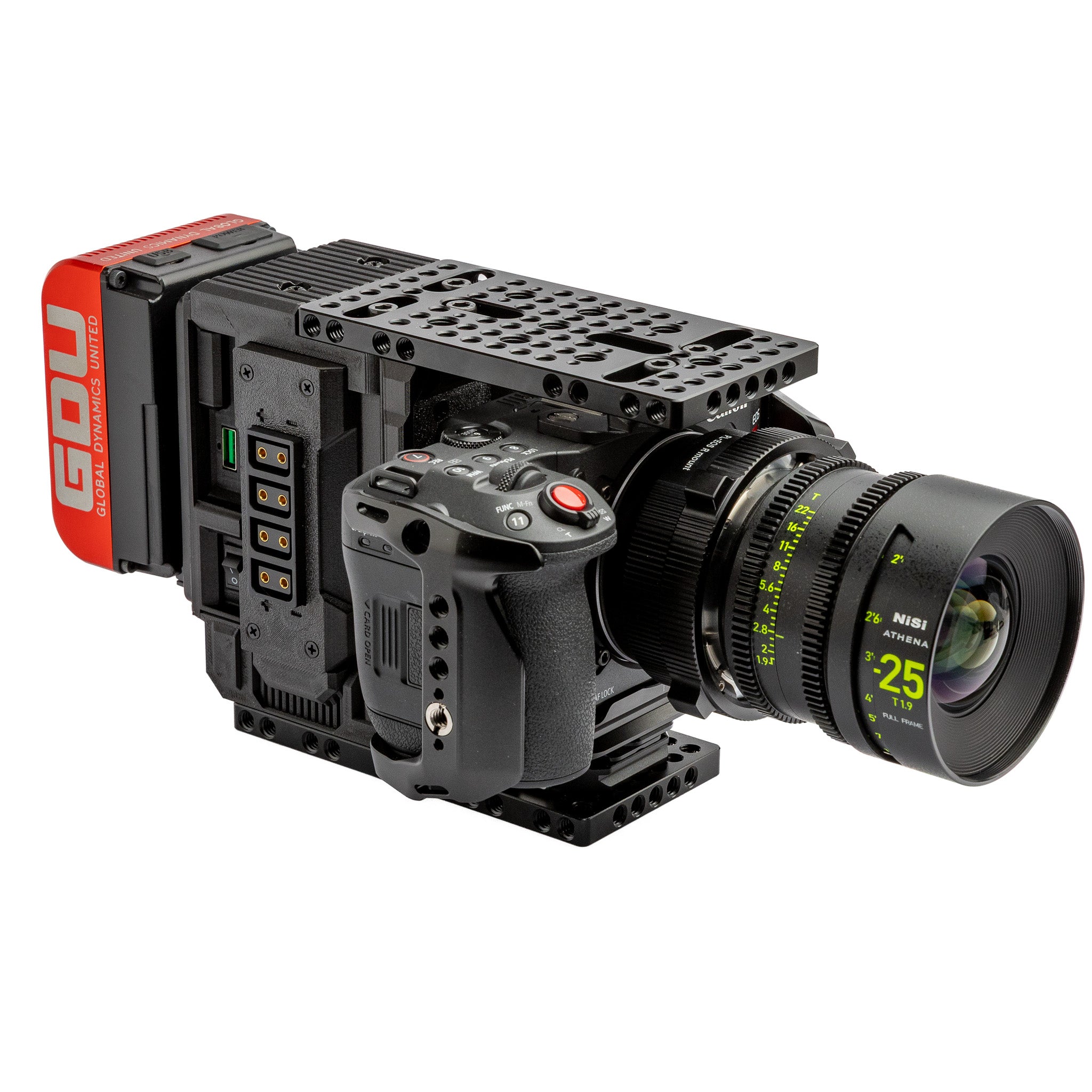

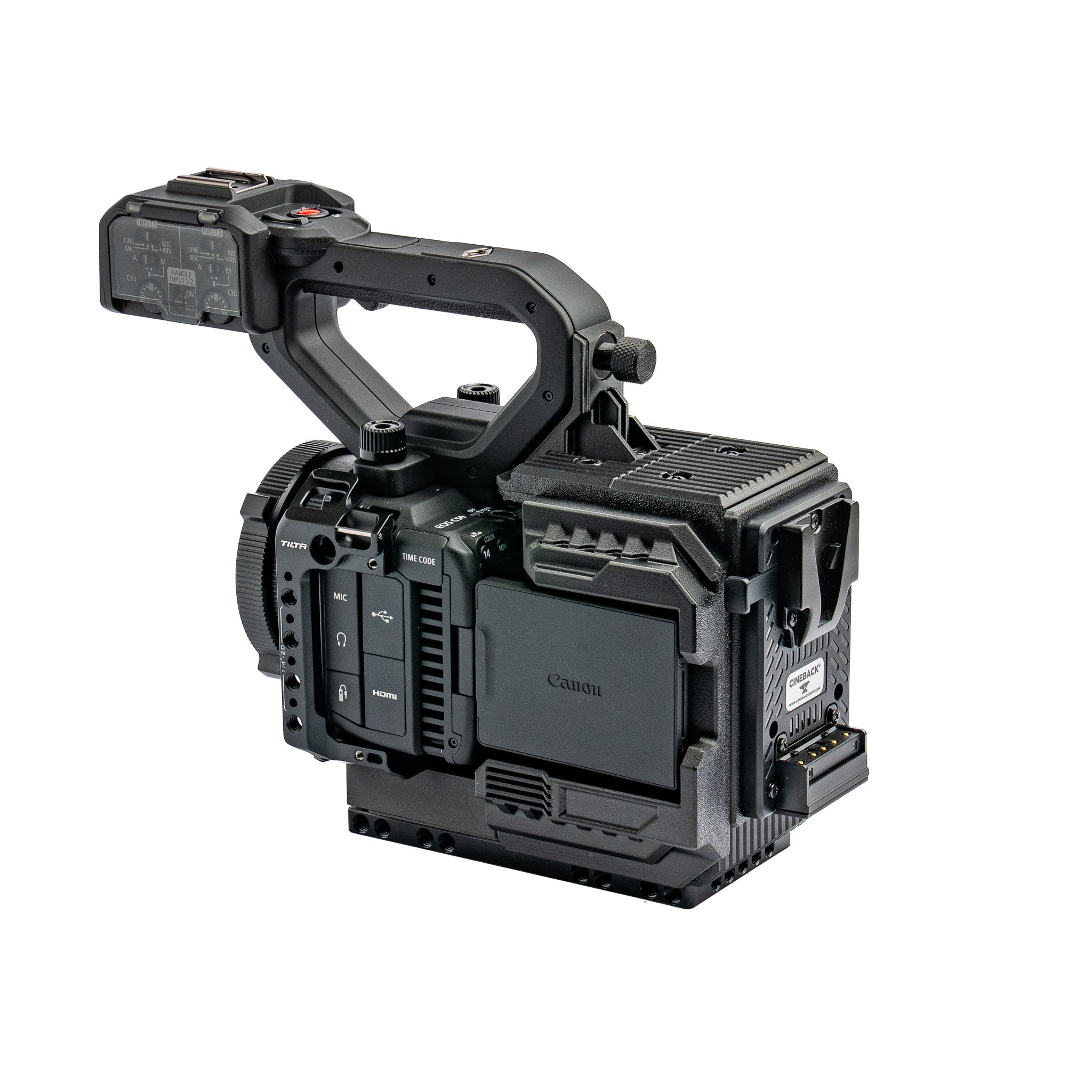

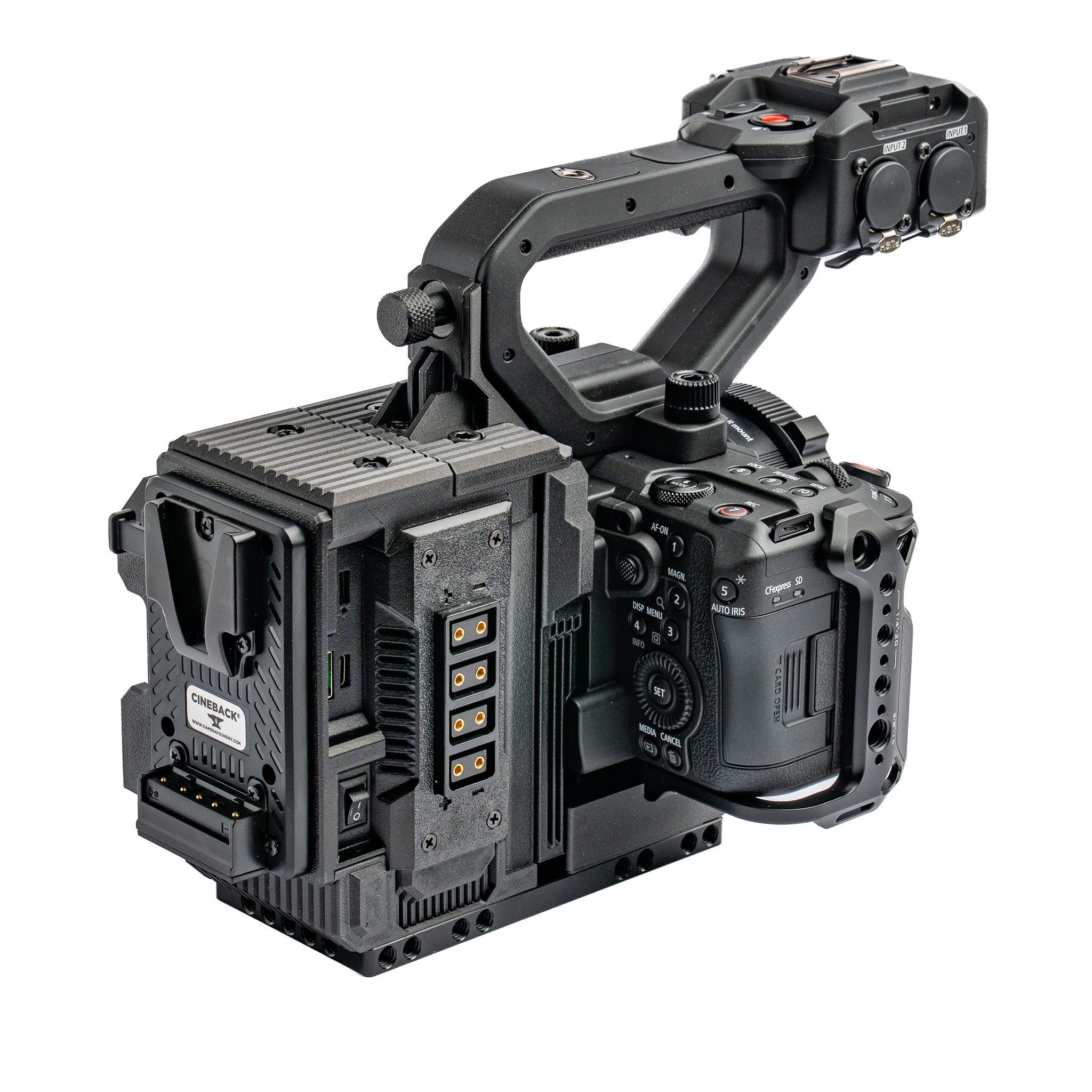

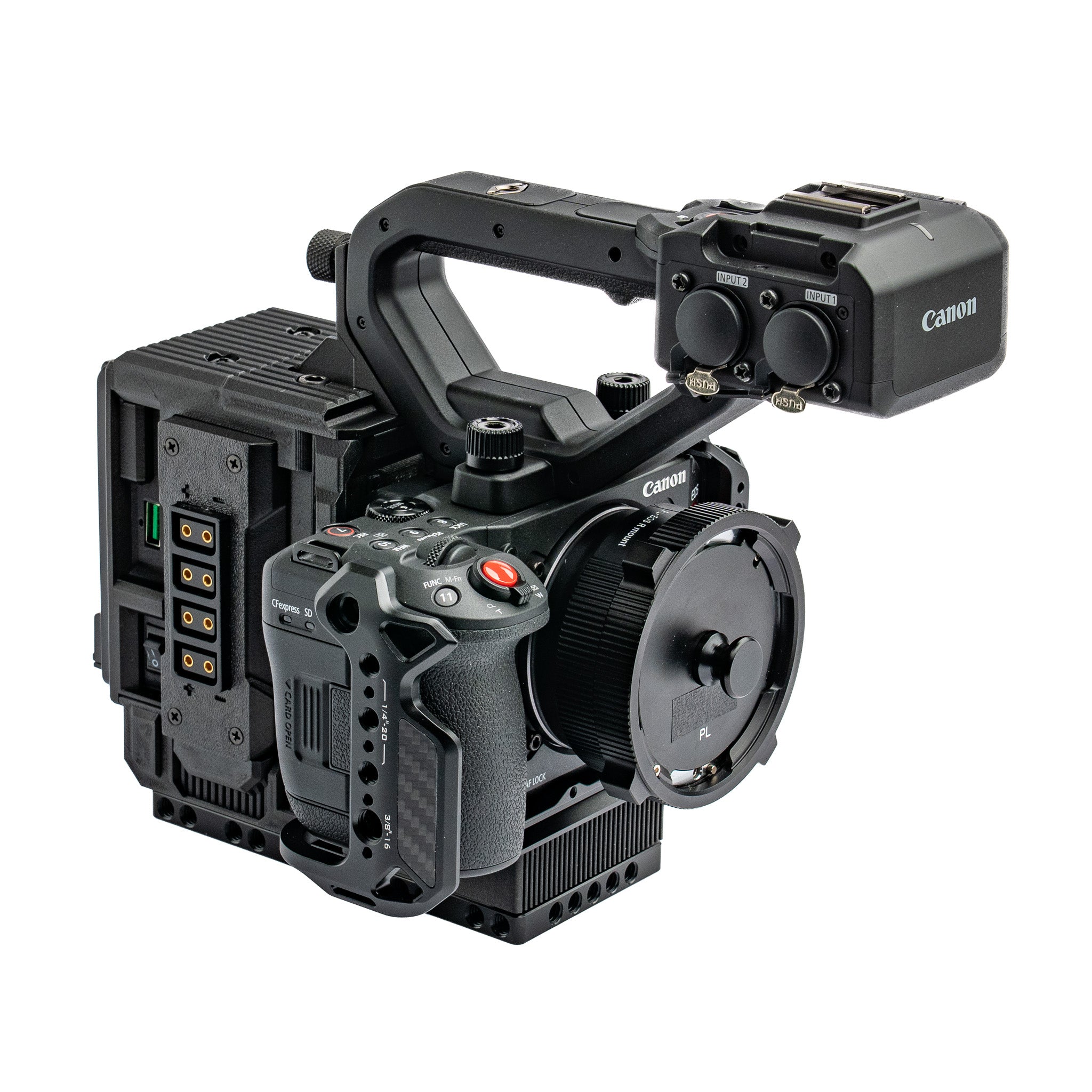

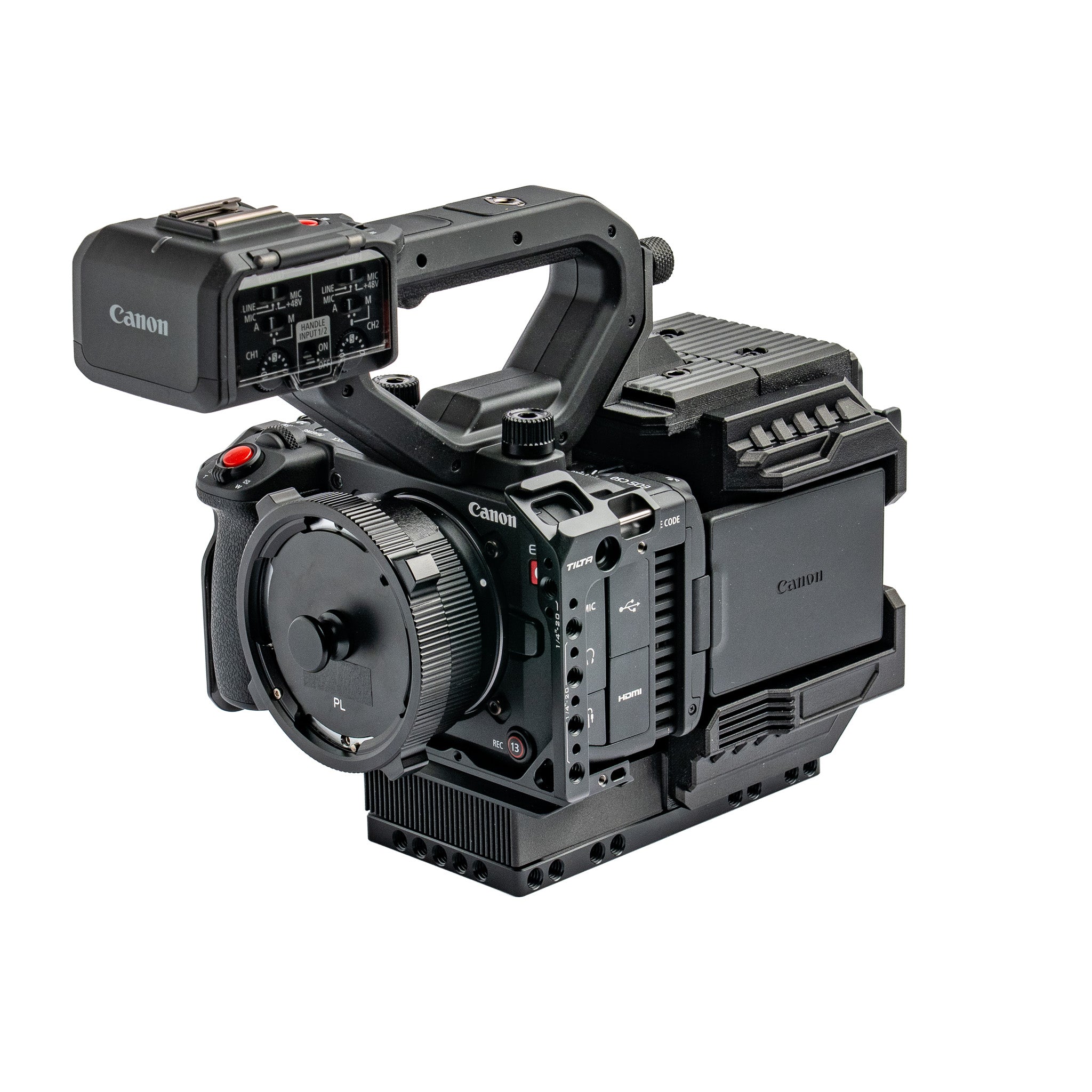

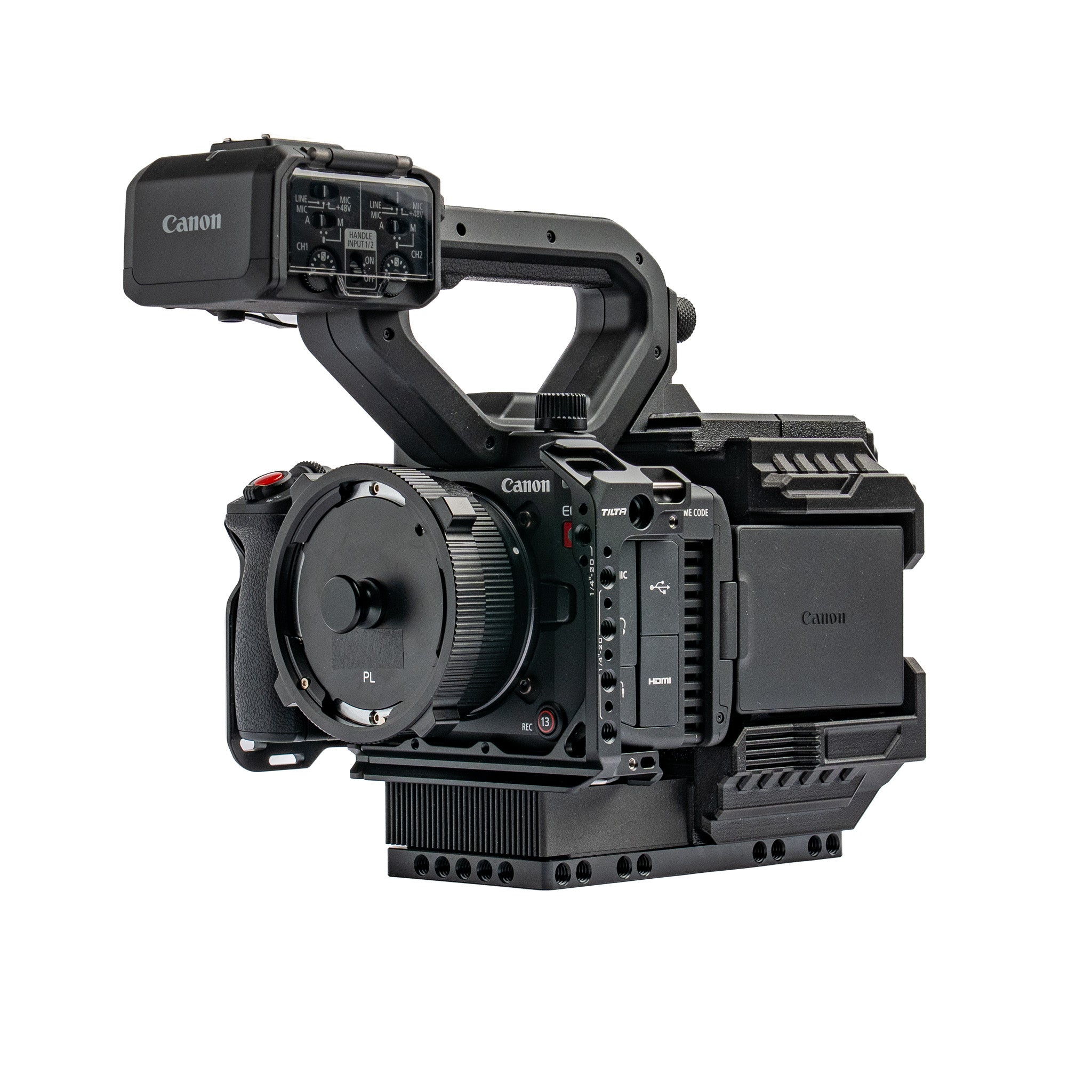

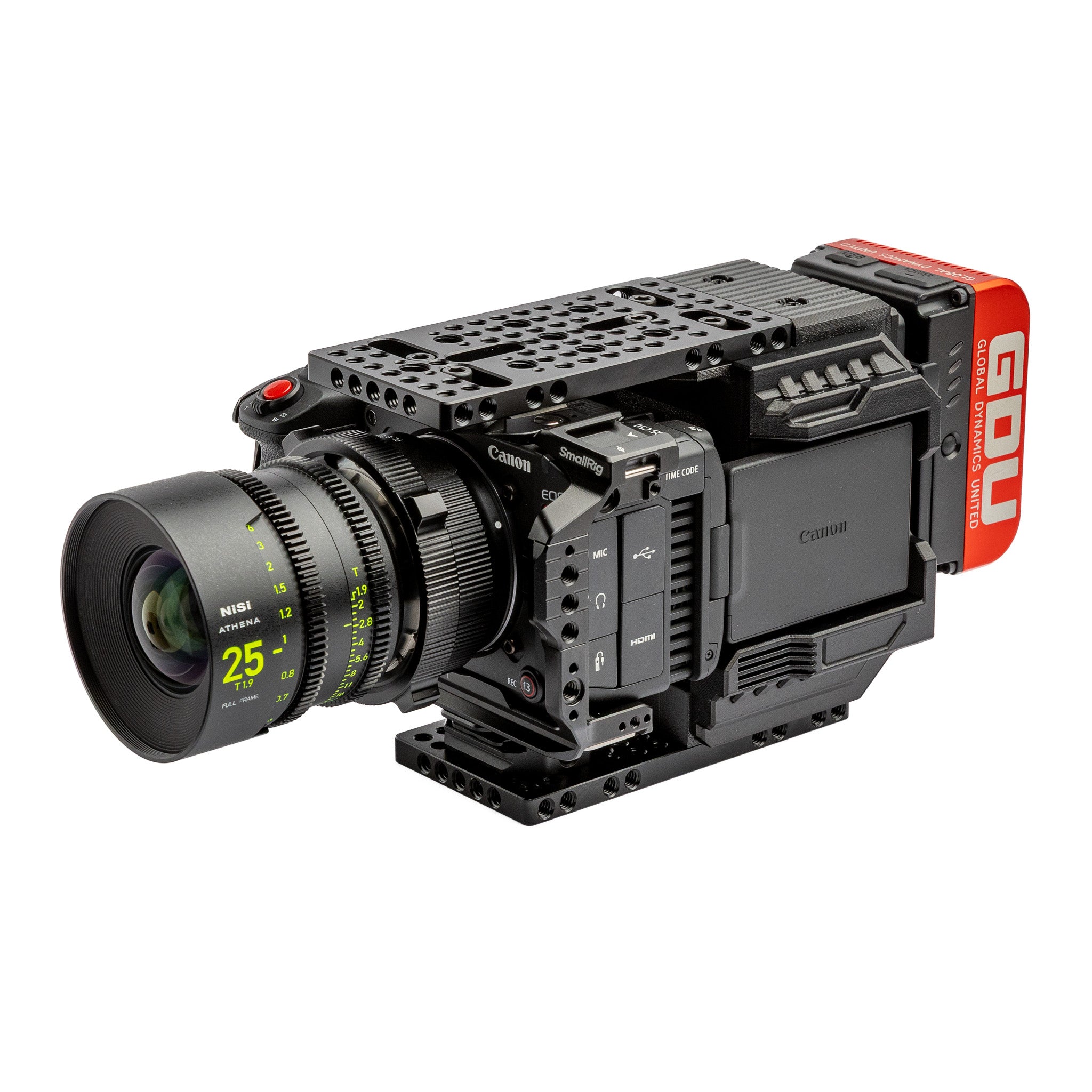

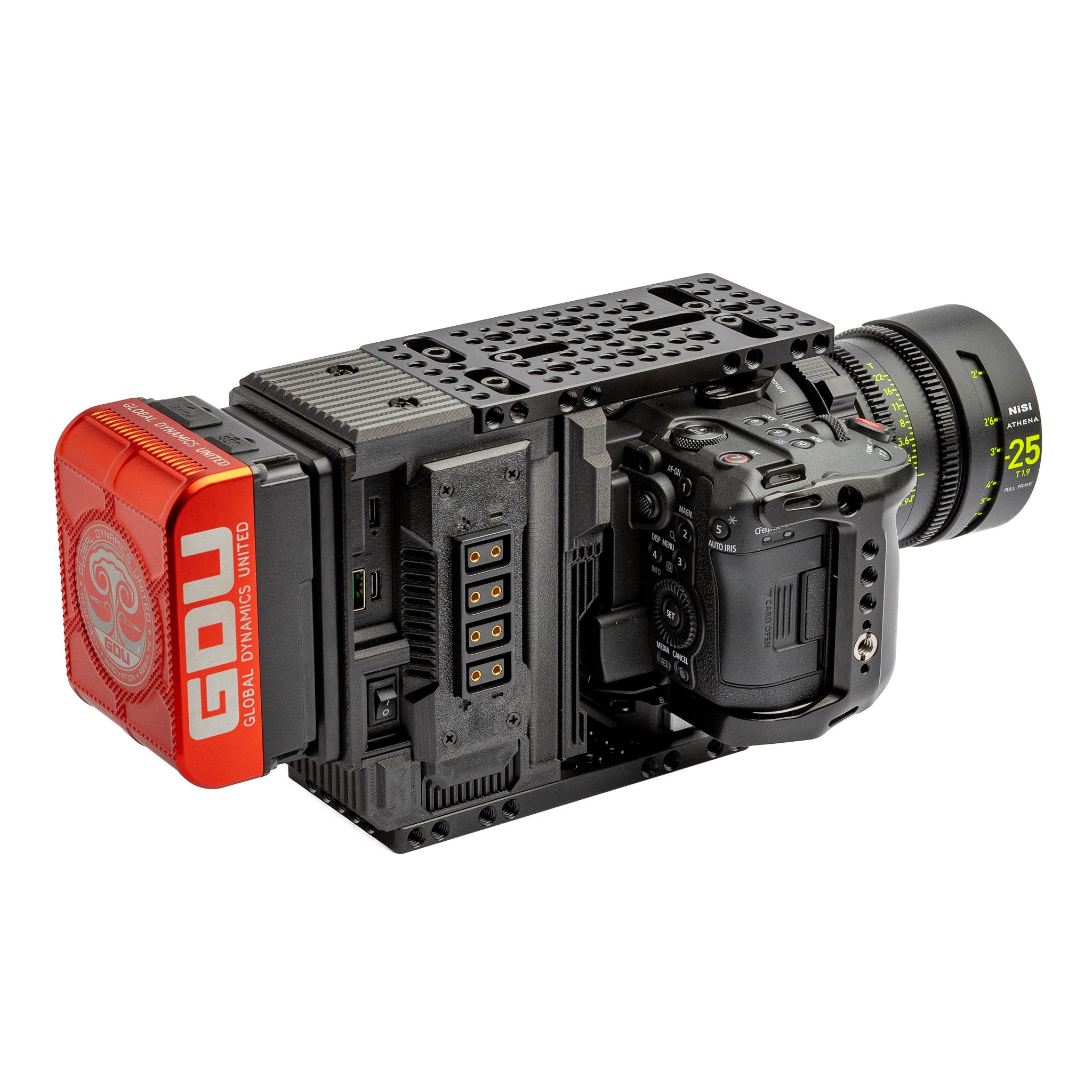

CineBack® for Canon C50

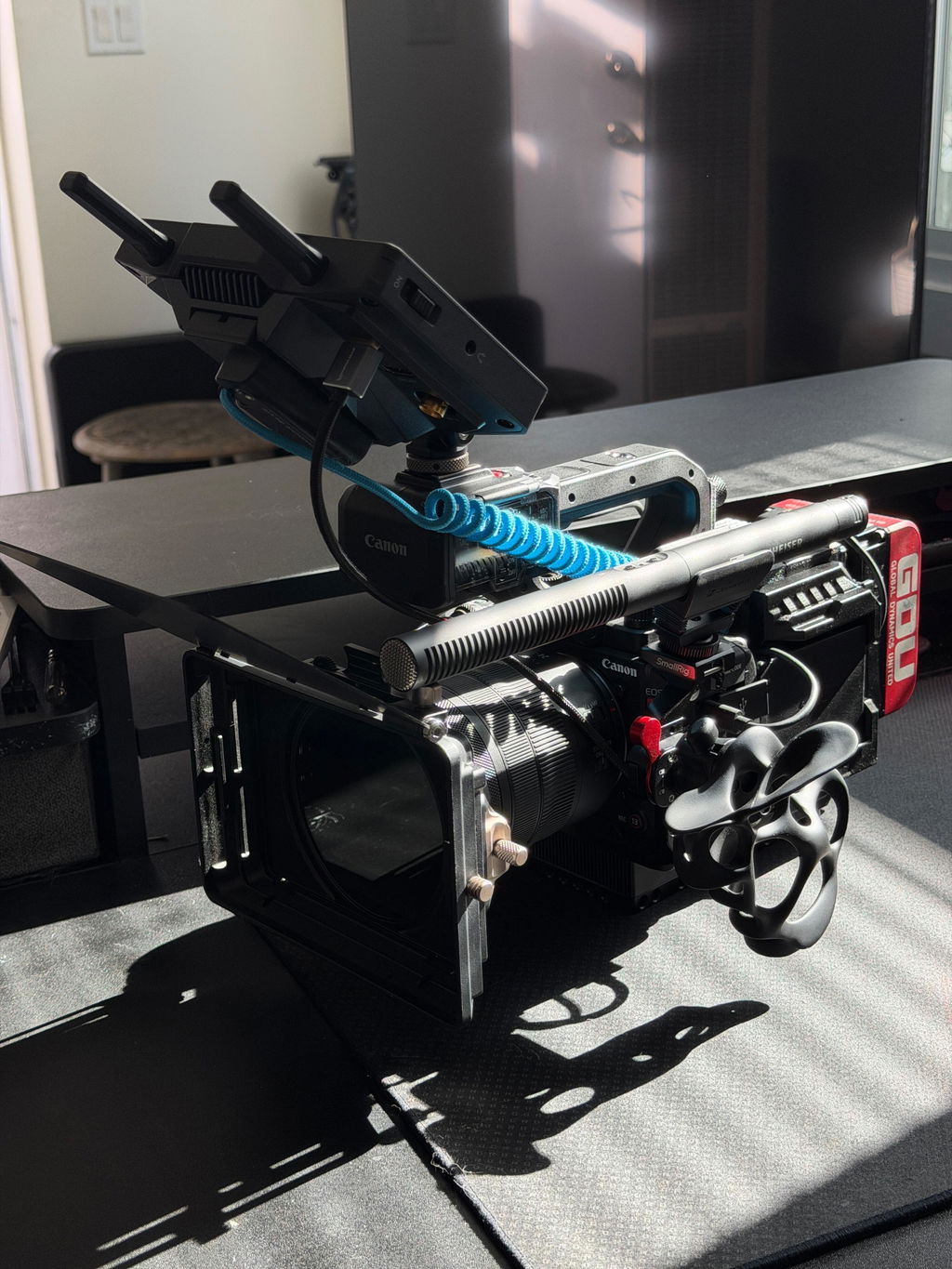

Turn your Canon C50 into a full size cinema camera with CineBack®!

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, v-mount or gold mont power, D-tap and USB-C PD outputs, cable management and other features that you can learn about in the video and description below.

See all other Canon CineBack® models here.

Just add one of the cages mentioned below and you have a full sized cinema camera!

CineBack® Canon C50 Features

• V-Mount or Gold Mount battery plate for longer run time

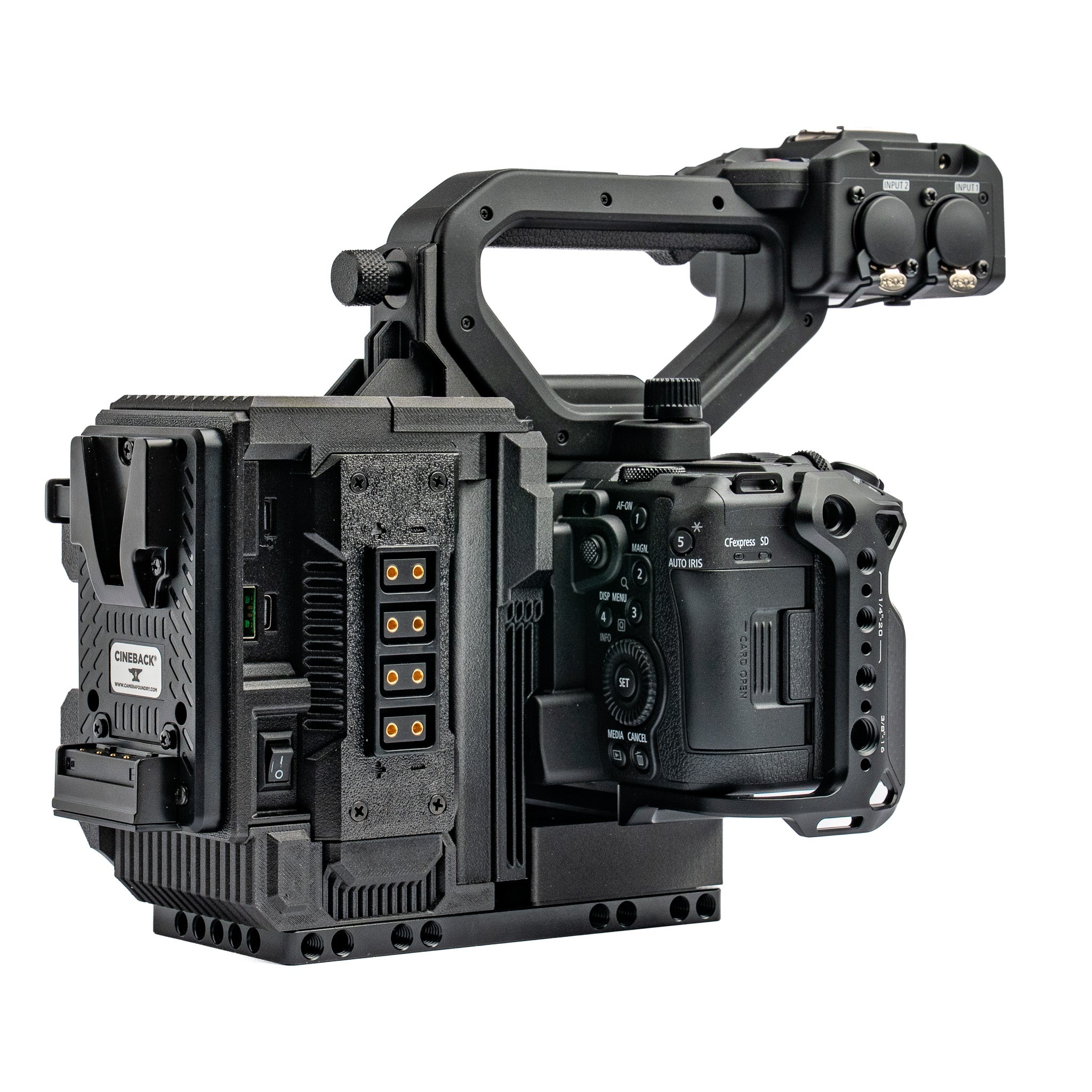

• Works with and without the XLR Top Handle
• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here)
• Additional USB Type A output

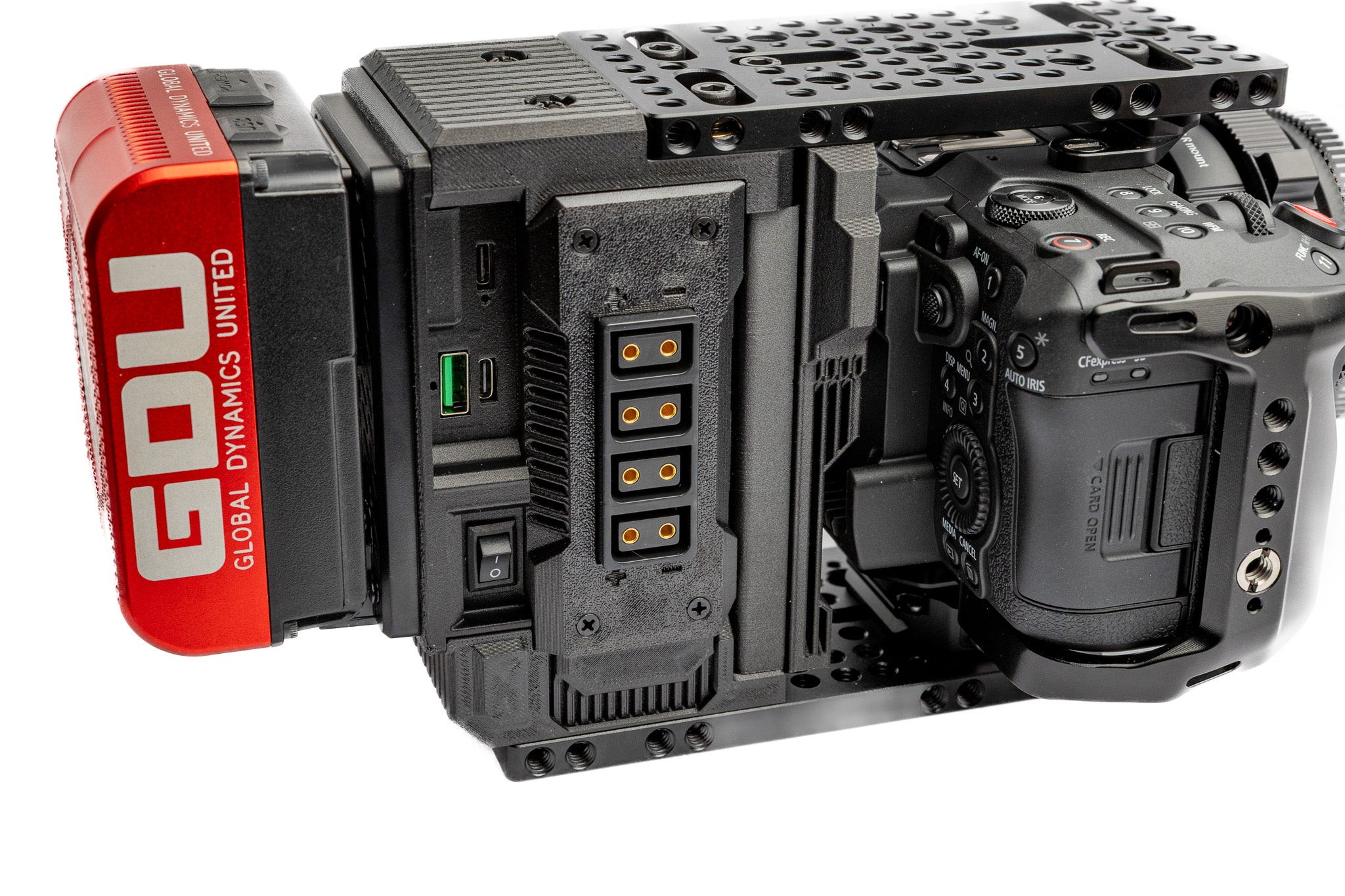

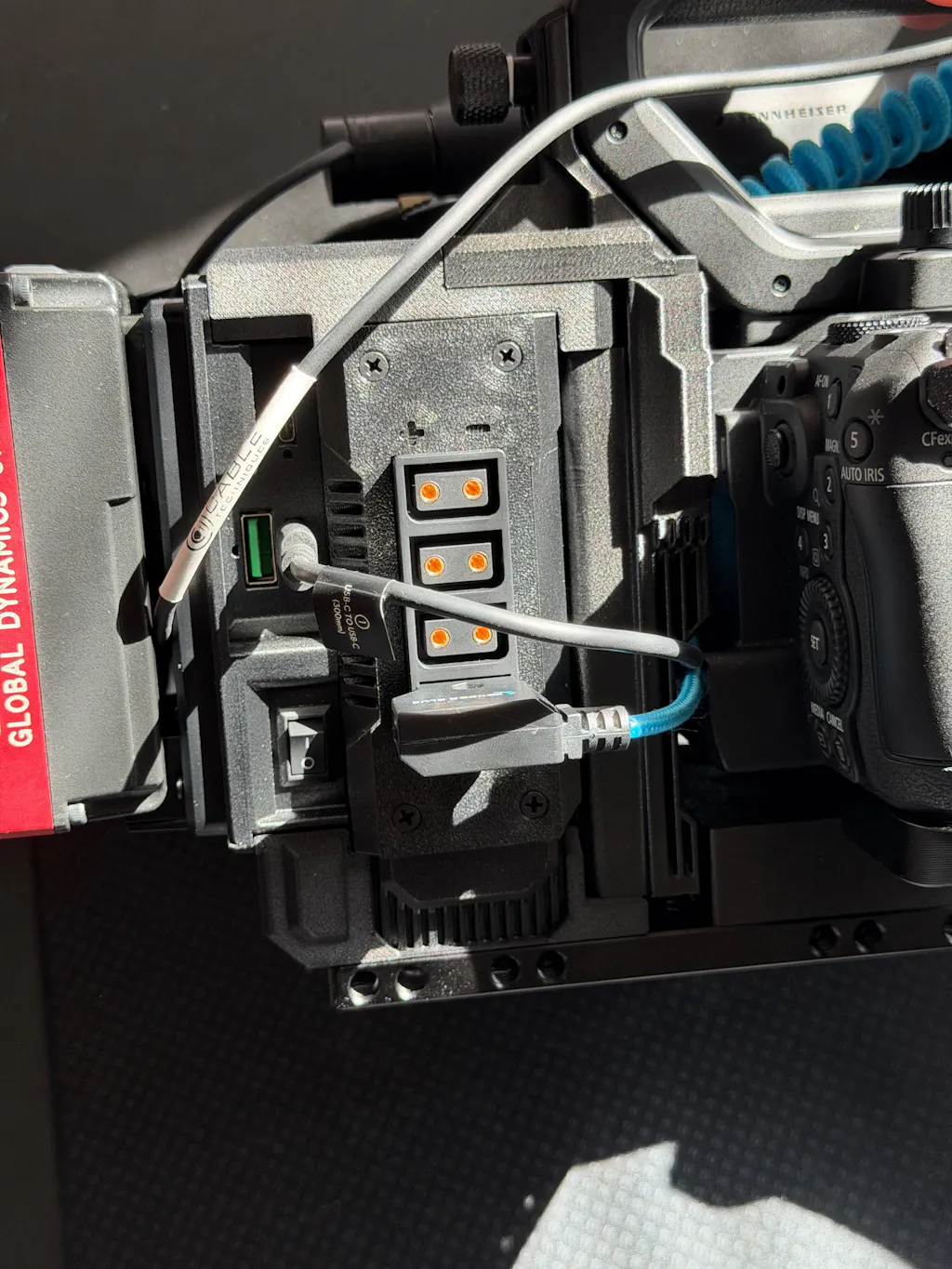

• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories
• Quick release compatible when you use the Falcam F38
• Cable management door and storage compartment and with cable routing built in (check out our USB-C right angle cables here)
• Power switch to completely cut power so there is no battery drain
• Screen side mount allowing you to use your camera screen in cine mode, open or closed
• Top and bottom cheese plates for mounting accessories and other rigging gear
• Modular with future accessories possible (see all CineBack® accessories here)

Required Gear

To get this version of CineBack® working, you will need one of the following cages:

• SmallRig Canon C50 Cage (Model 5656 or 5657).
• Tilta Full Camera Cage for Canon C50 (Model TA-T93-FCC-B)

Other Cages

Share your thoughts with us here on what cage you would like to see supported.

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices (input voltage should be higher than output voltage). 65W max (5V3A, 9V3A, 12V3A, 20V3.25A, etc.)
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
• Weight: TBD (no camera, battery or camera cage)
