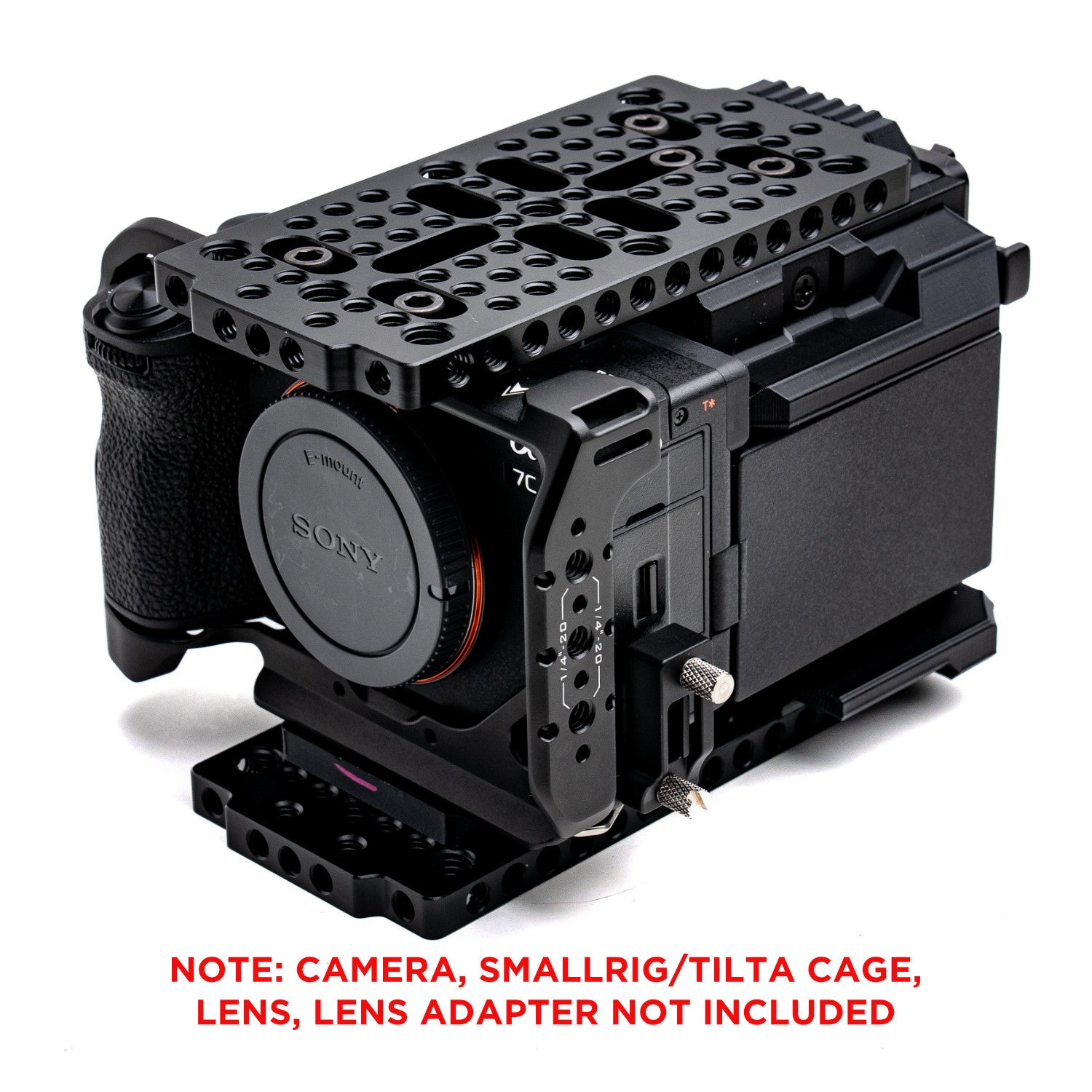

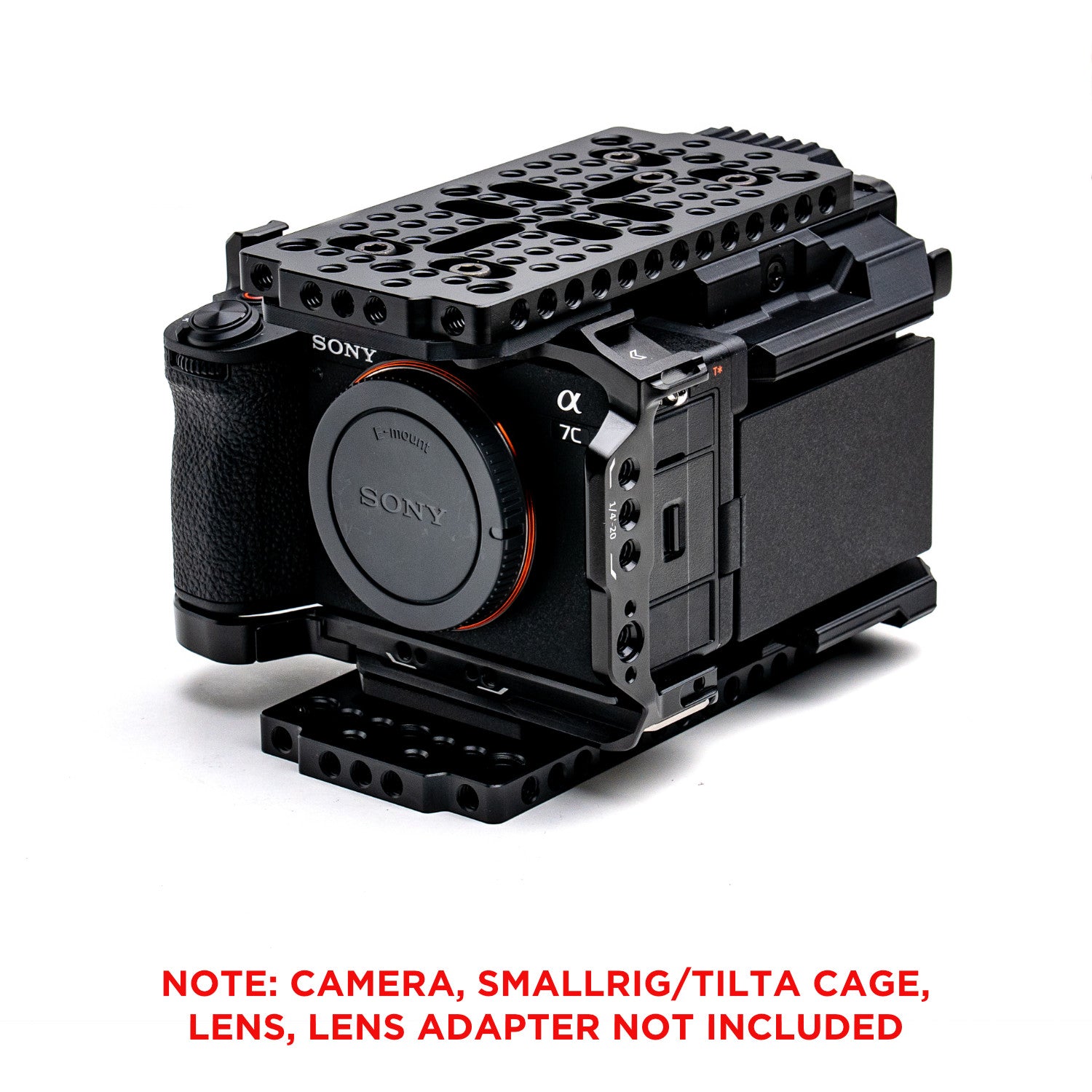

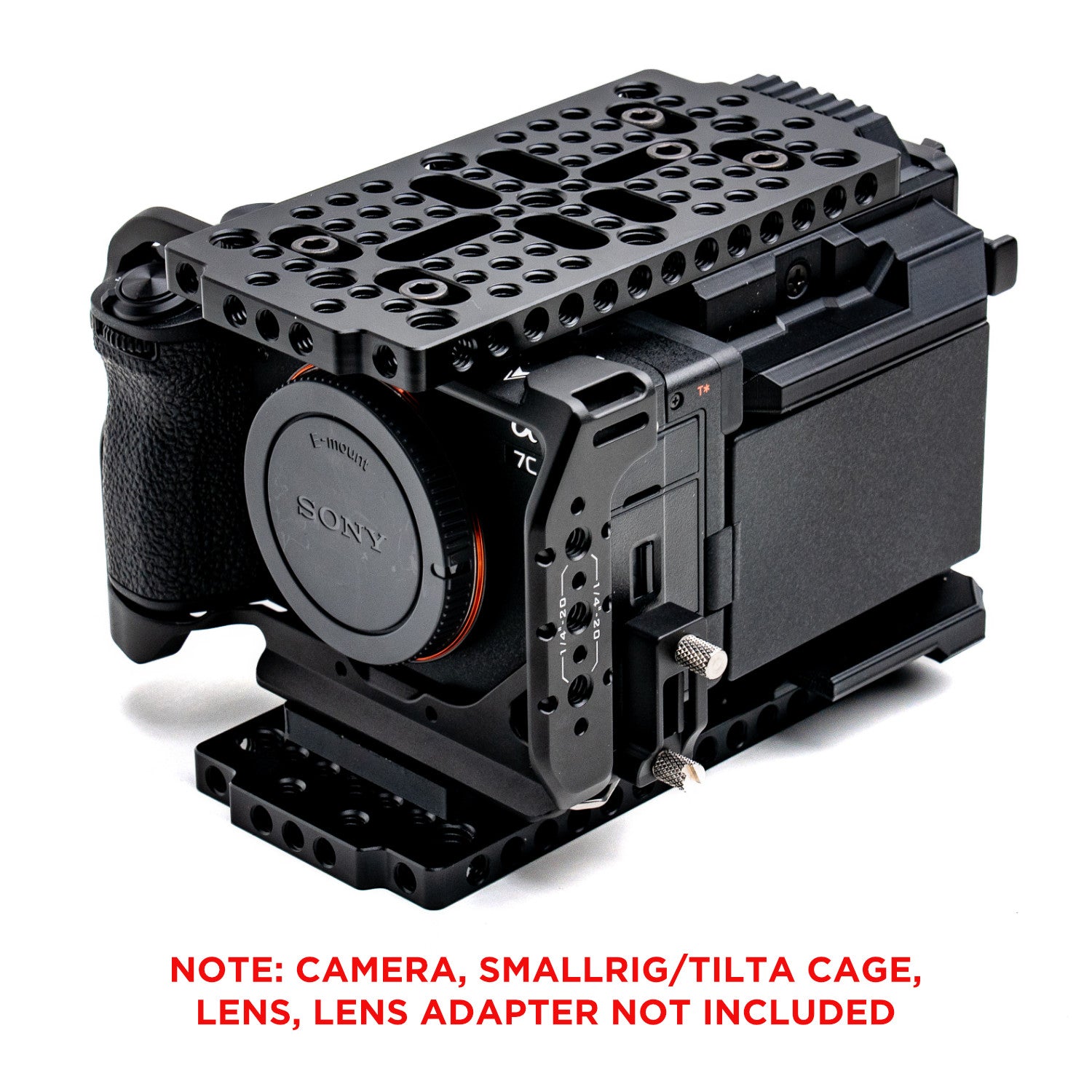

CineBack® V2 for Sony ZV and A Series Cameras

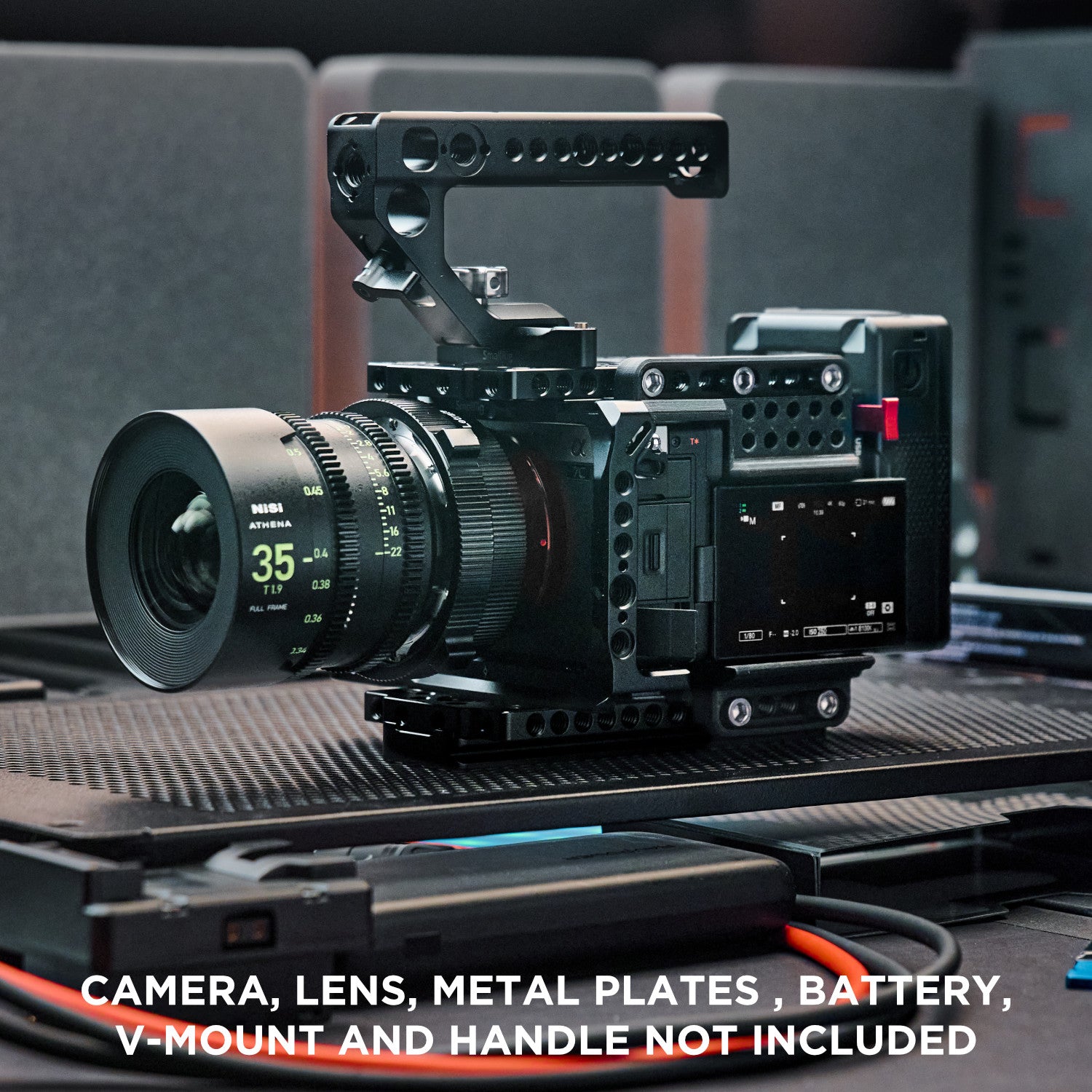

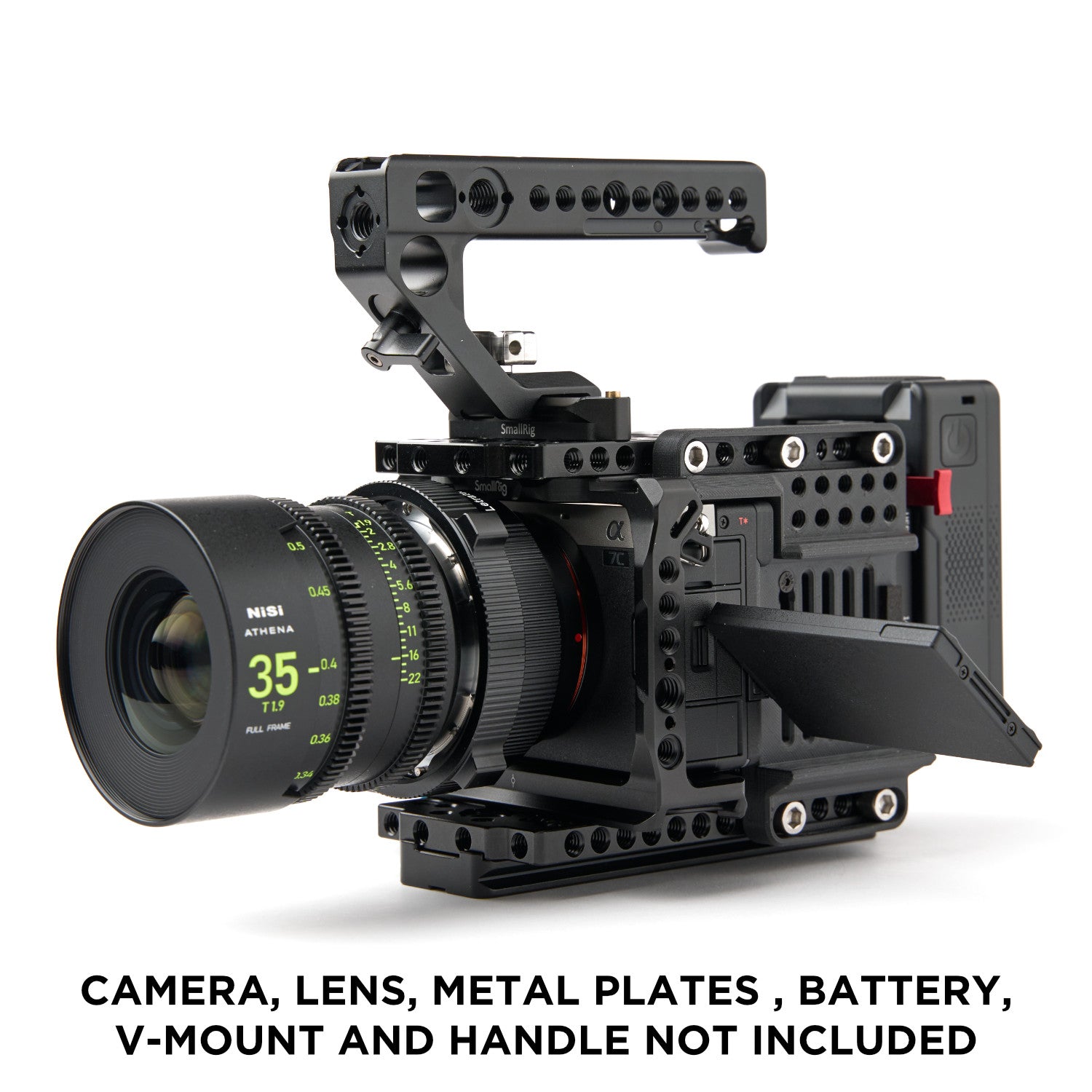

Turn your Sony mirrorless into a cinema camera with CineBack® V2!

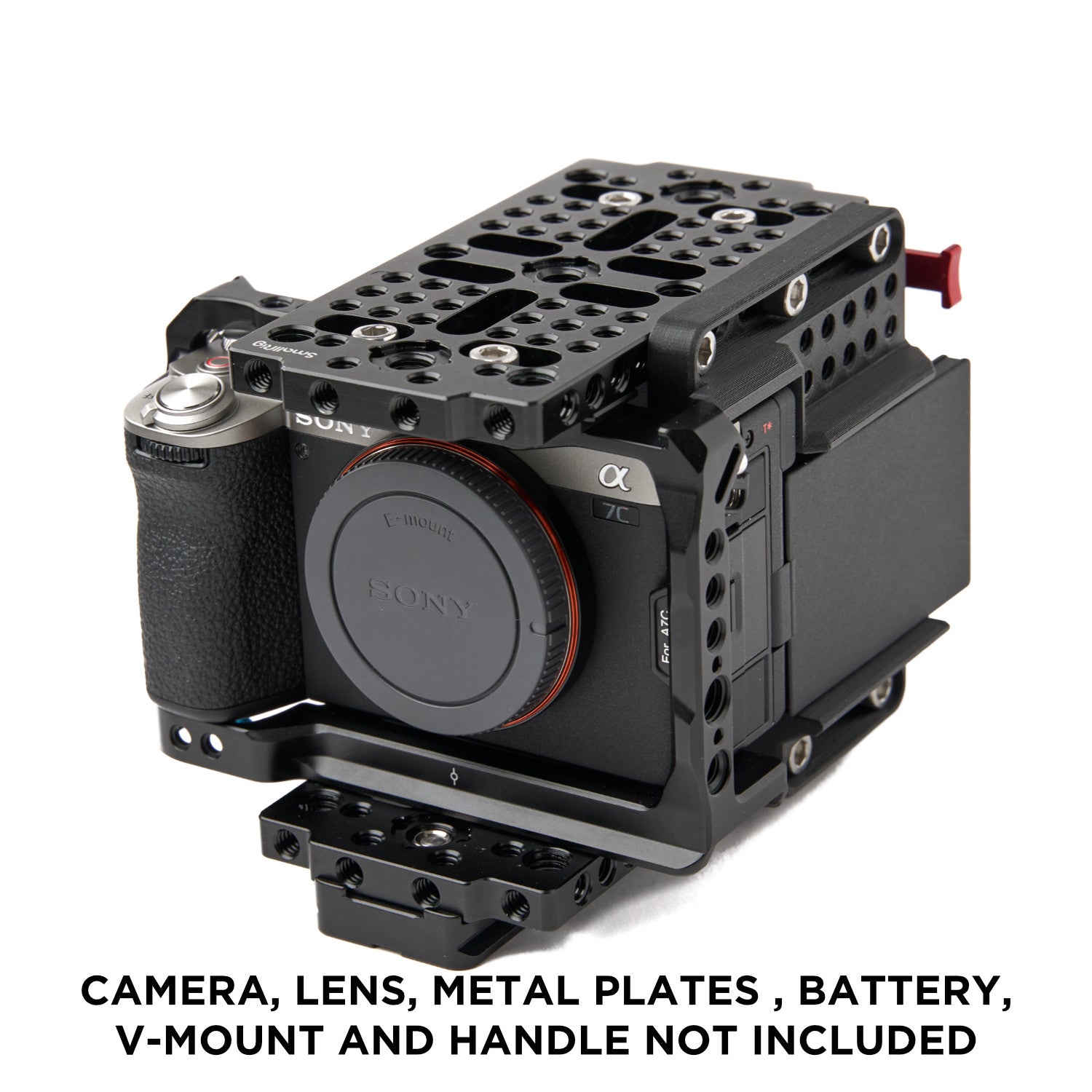

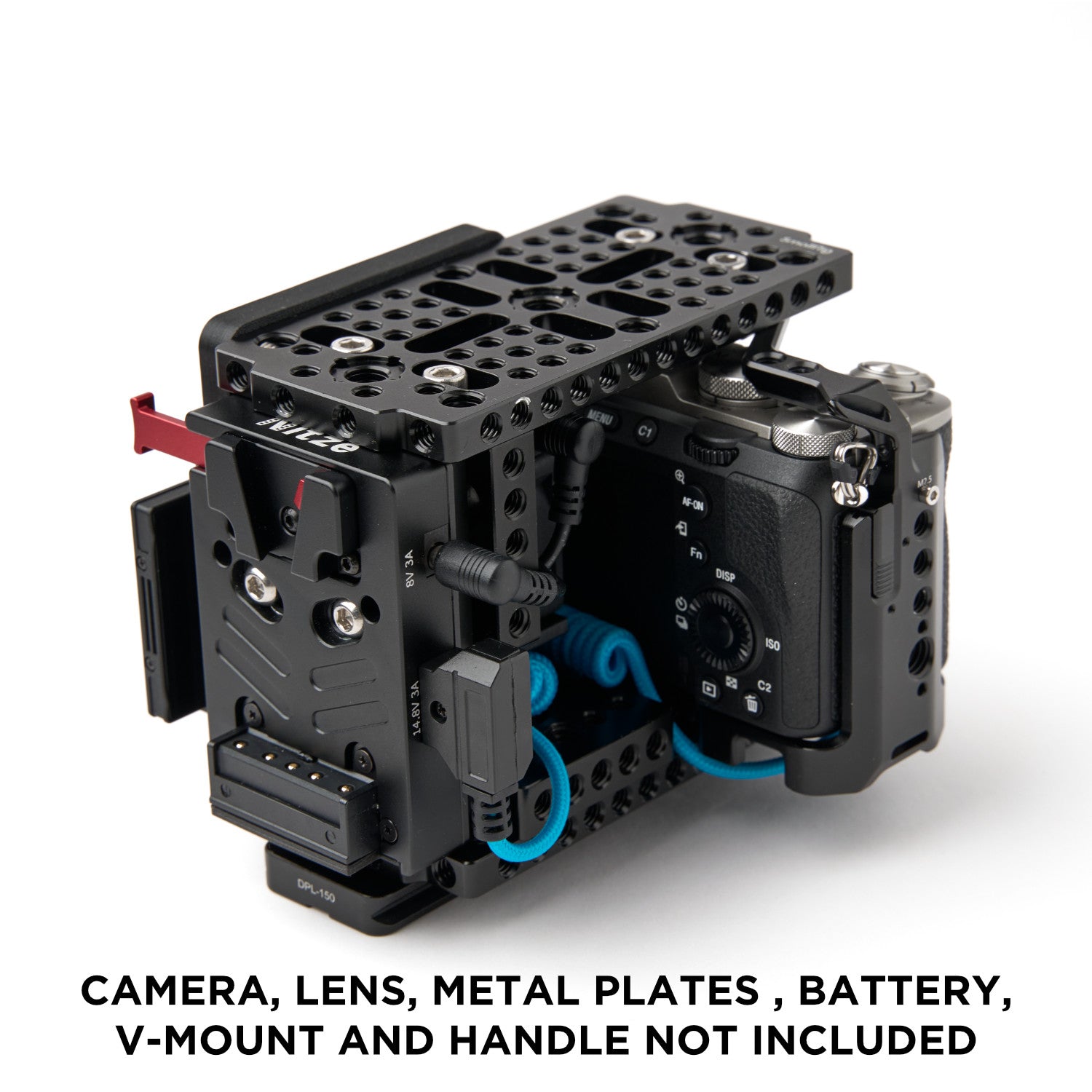

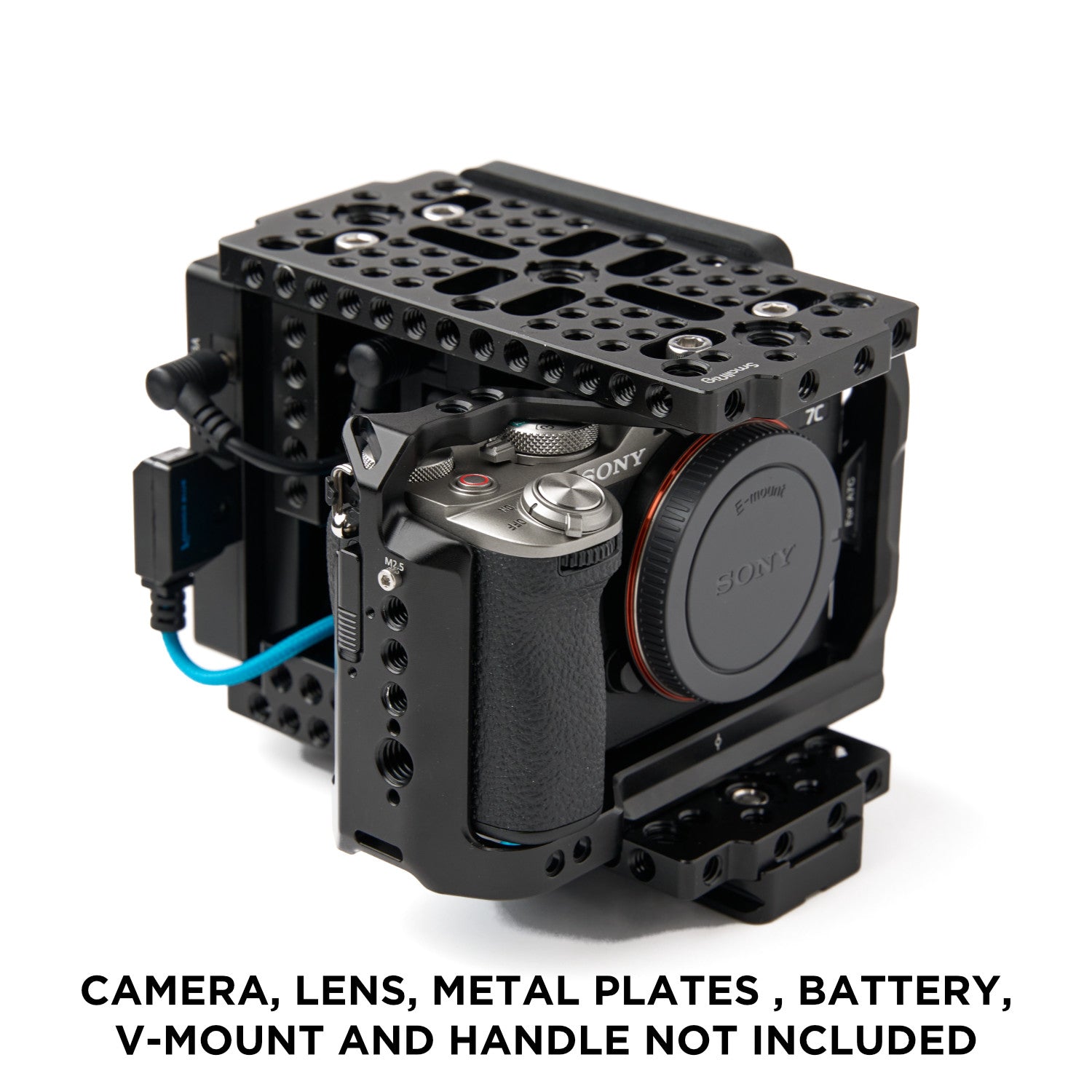

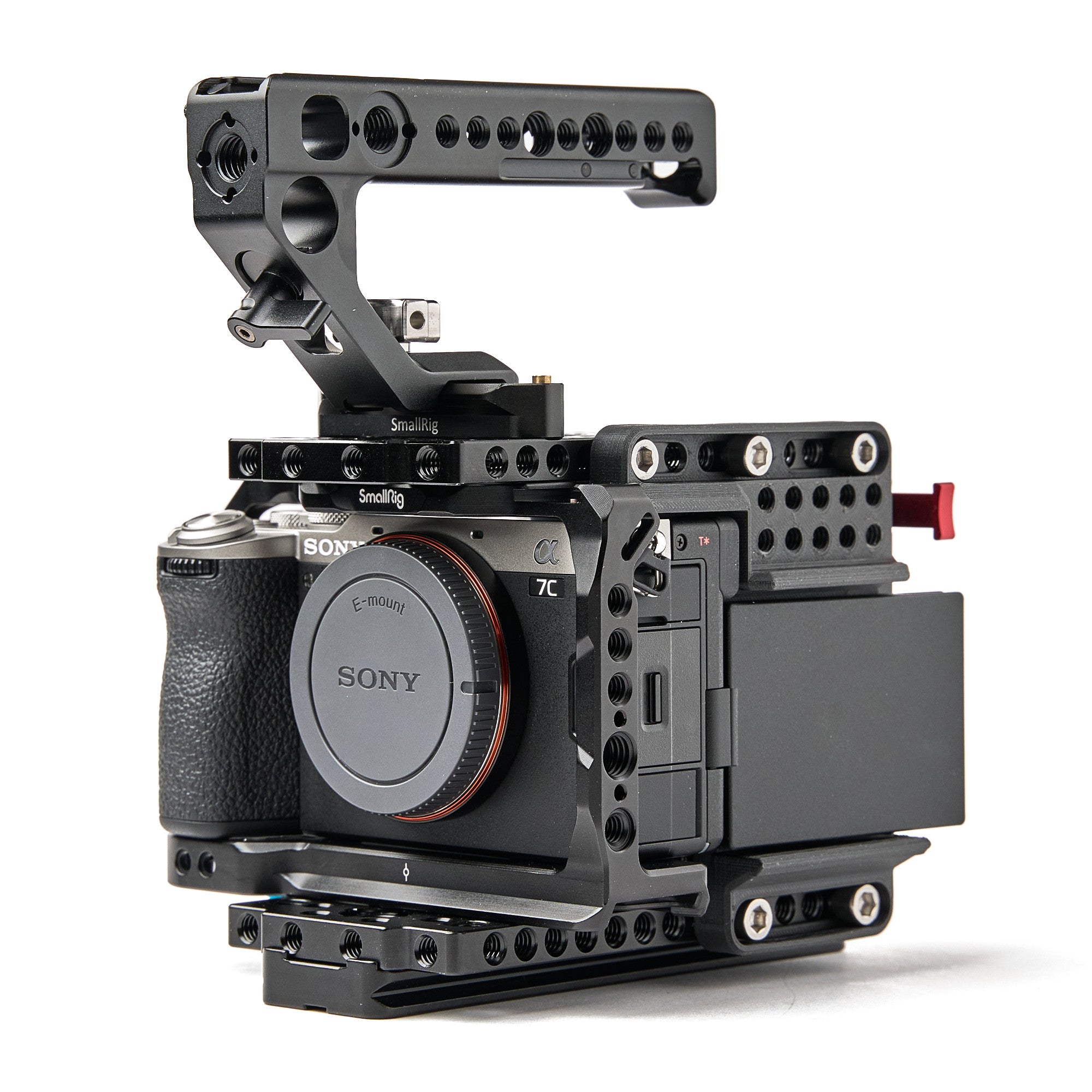

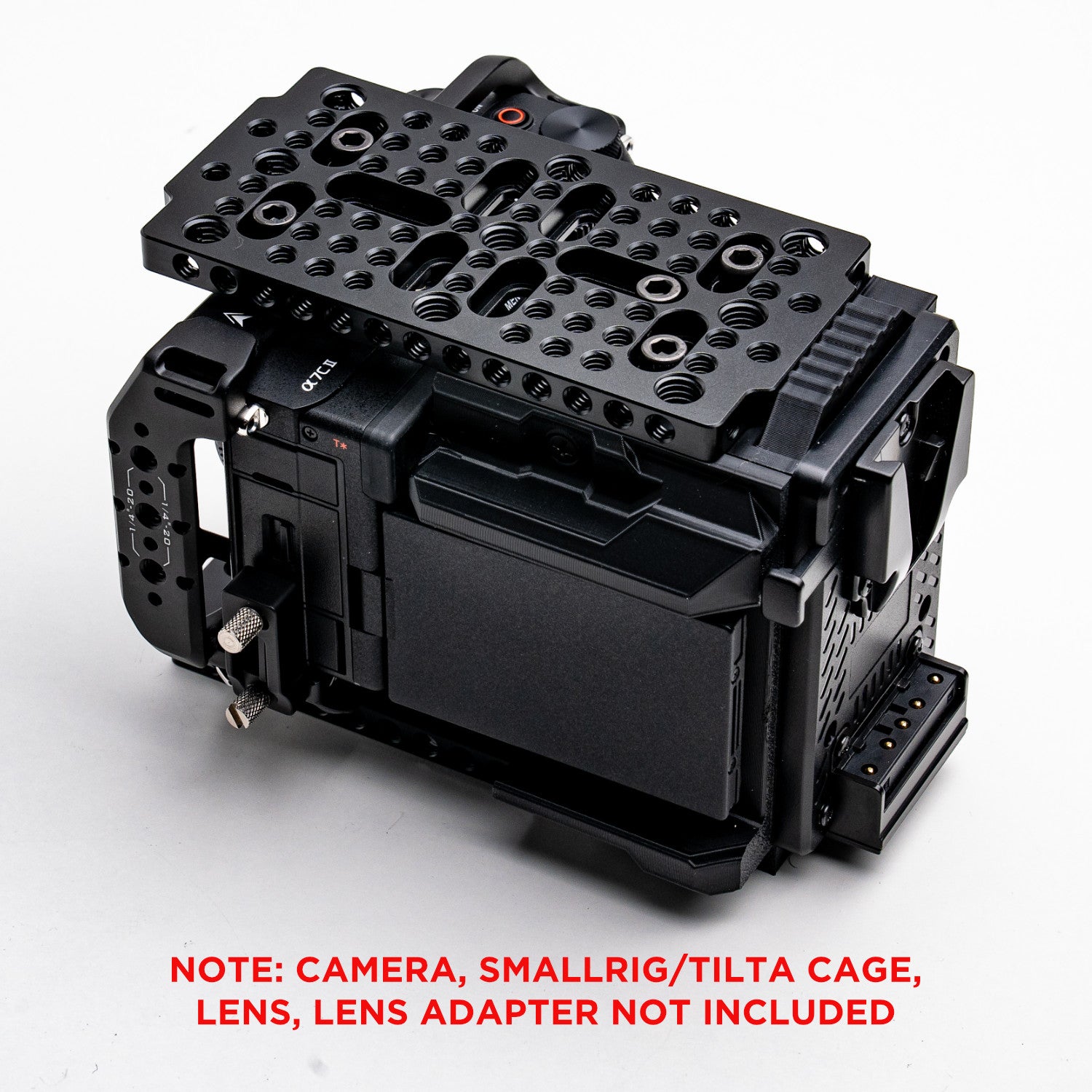

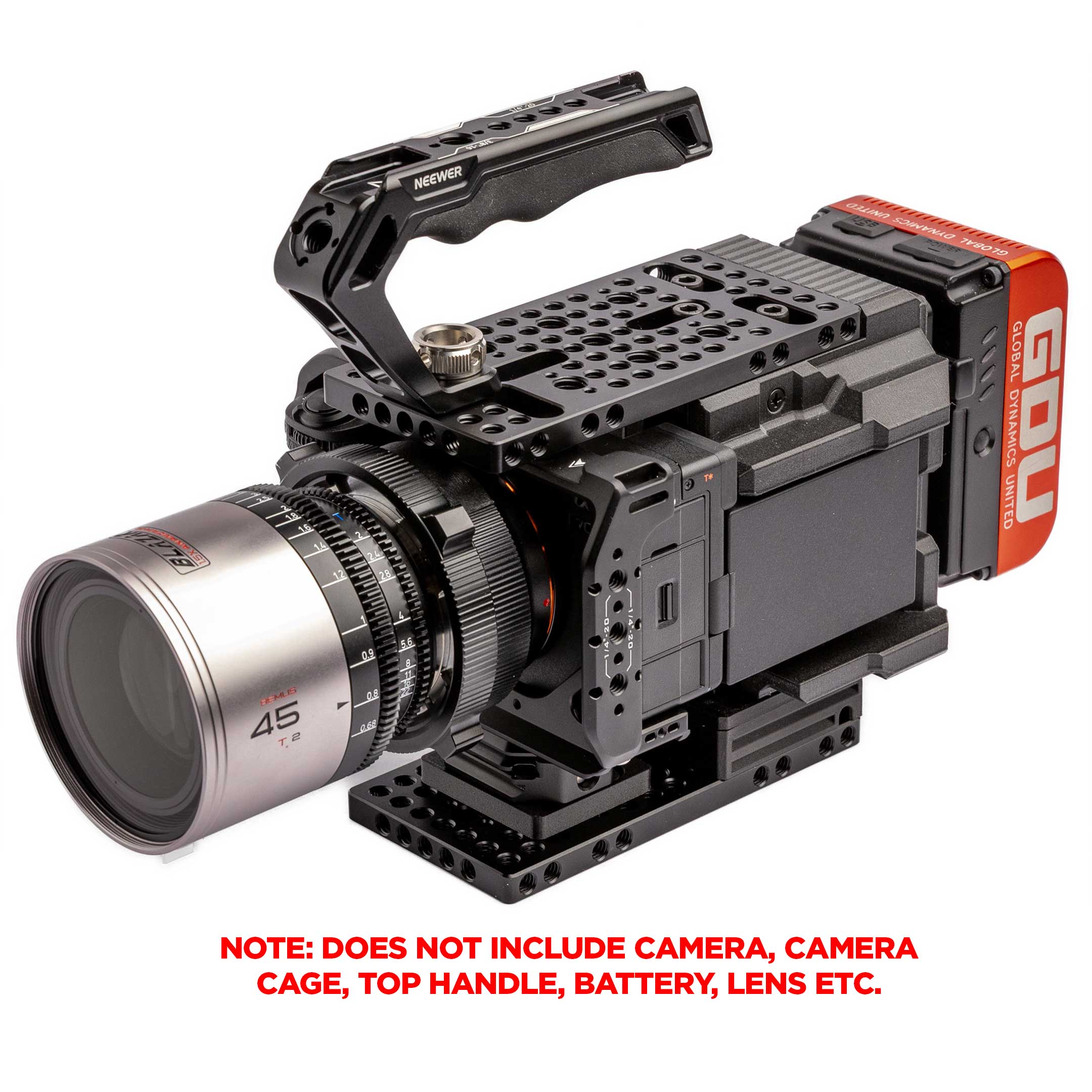

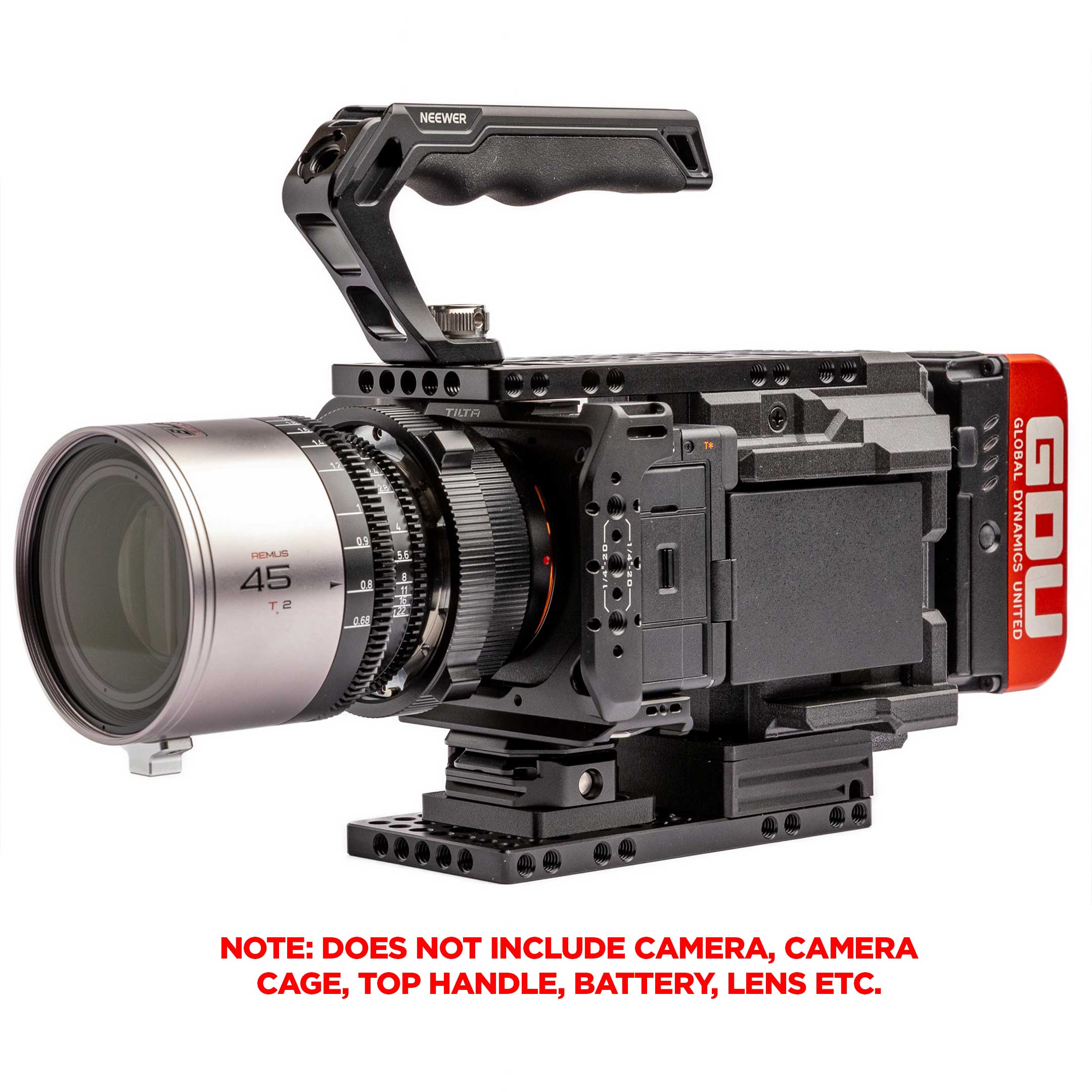

CineBack® is a camera rig that bolts onto the back of your camera giving you tons of mounting options, v-mount or gold mont power, D-tap and USB-C PD outputs, cable management and other features that you can learn about in the video and description below.

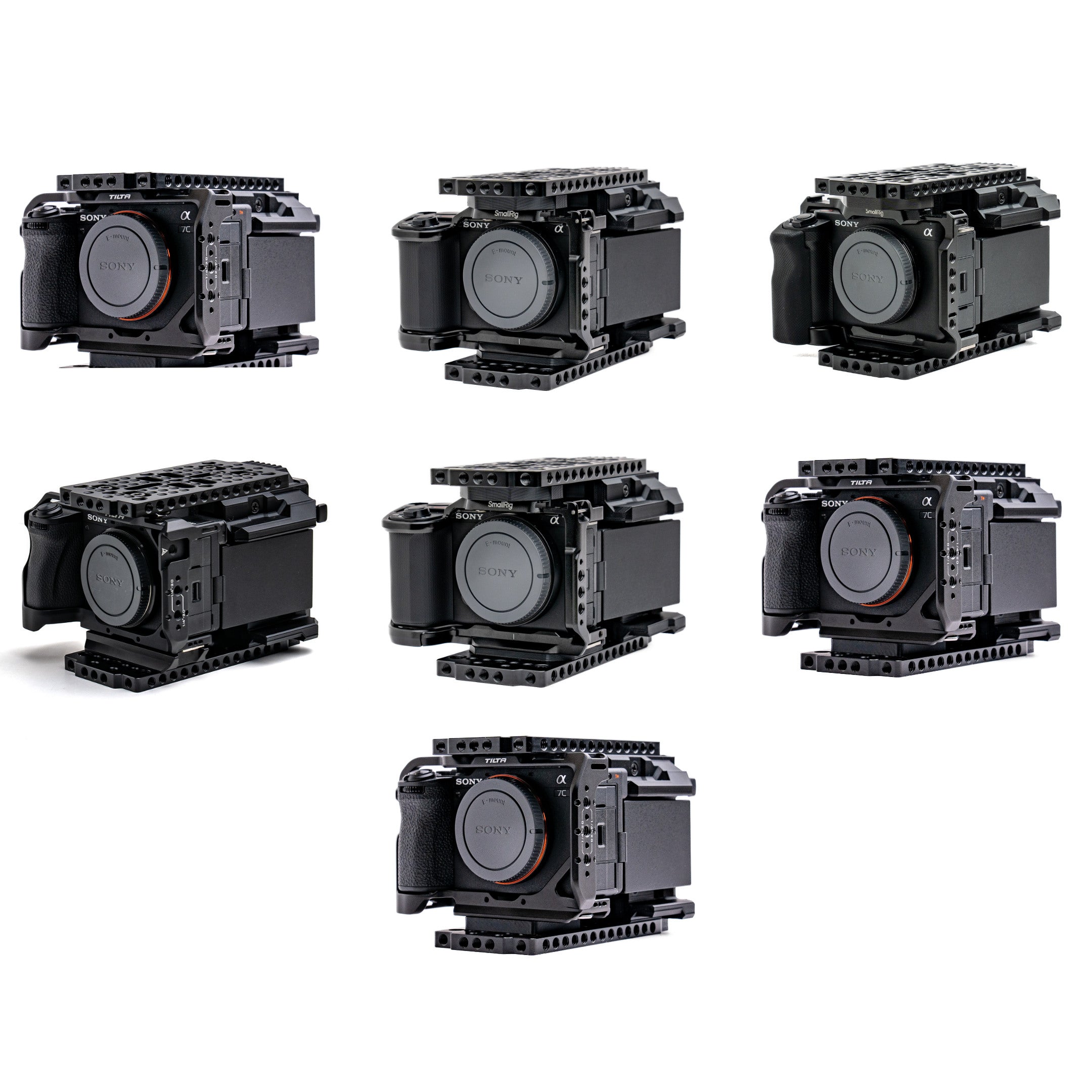

7 Sony Cameras in 1 CineBack® V2!

This CineBack® is also compatible with the Sony ZV-E1, ZV-E10, ZV-E10 II, a7C, a7c II, a7C R, and the a6700. Wrong Camera? View Other CineBack® Models Here!

Required Gear

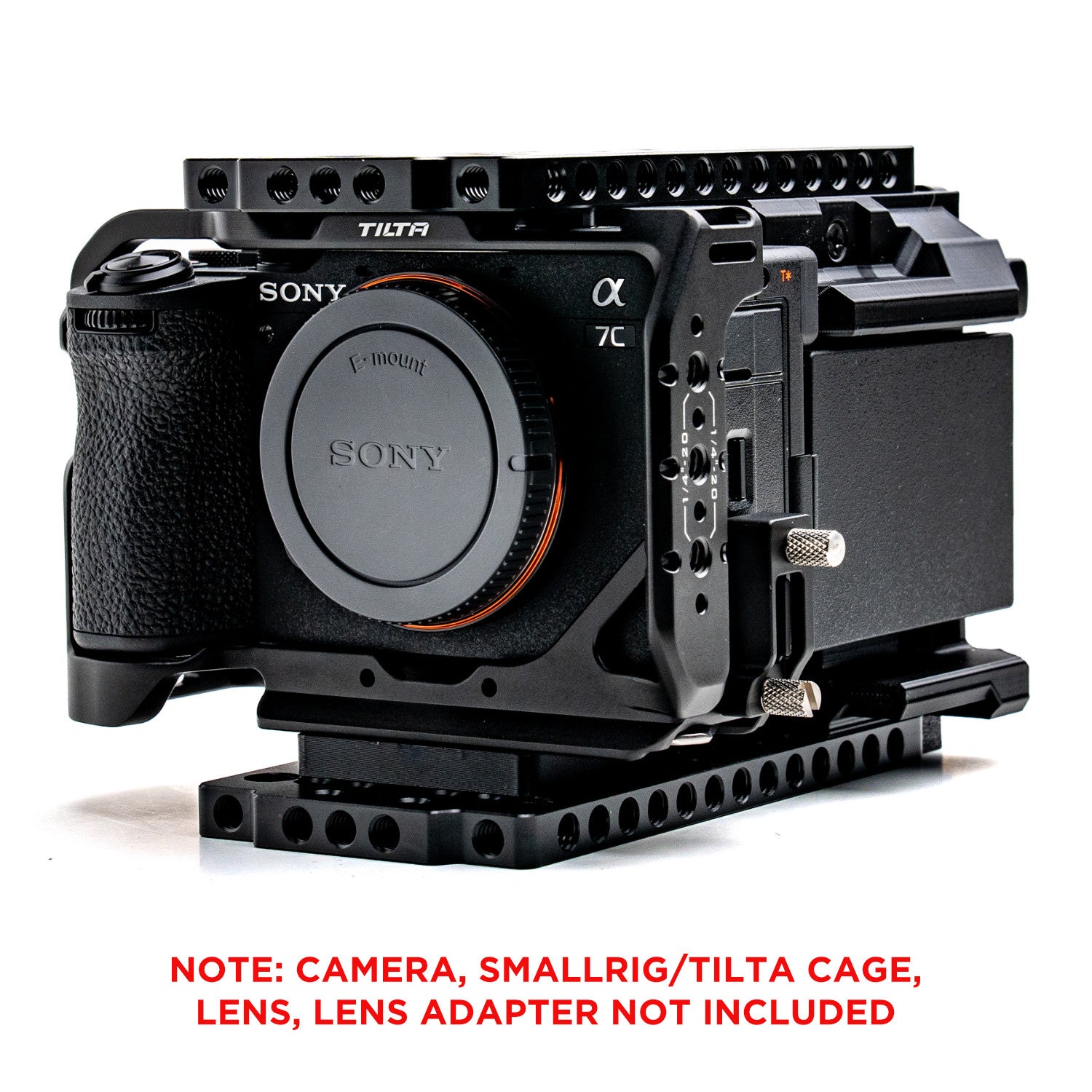

To get this version of CineBack® working, you will need a cage.

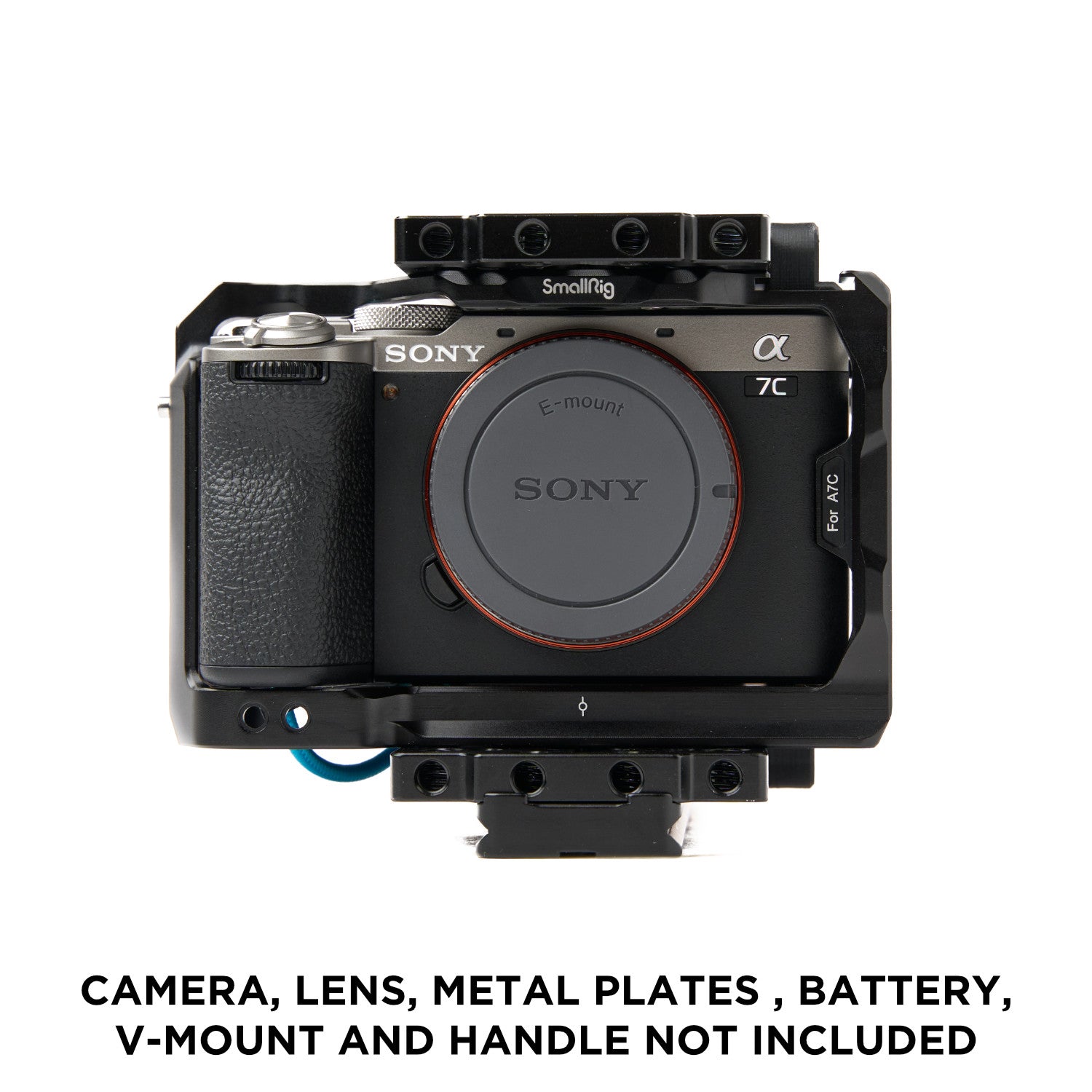

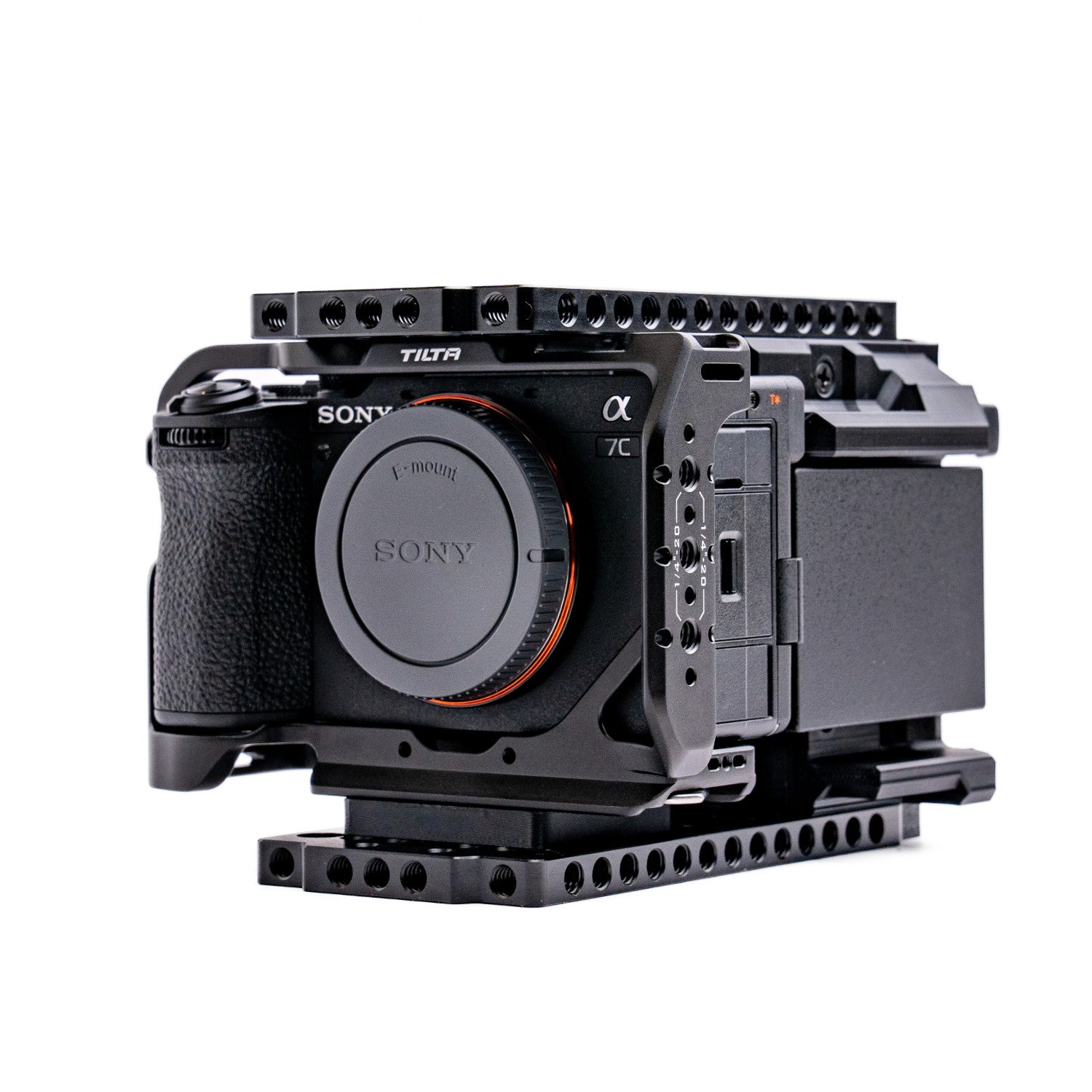

For the a7C II or  a7C R, you can use either the Tilta Full Camera Cage for a7C II / a7C R  or opt for the SmallRig a7C II and a7C R cage (model 4422).

If you have the original a7C, go with the SmallRig cage model 3212B.

If you have one of the other supposed cameras, choose from the list below to see supported cages:

ZV-E1 | ZV-E10 or ZV-E10 II | a7C, a7c II or a7C R (this page) | a6700

CineBack® V2 Features

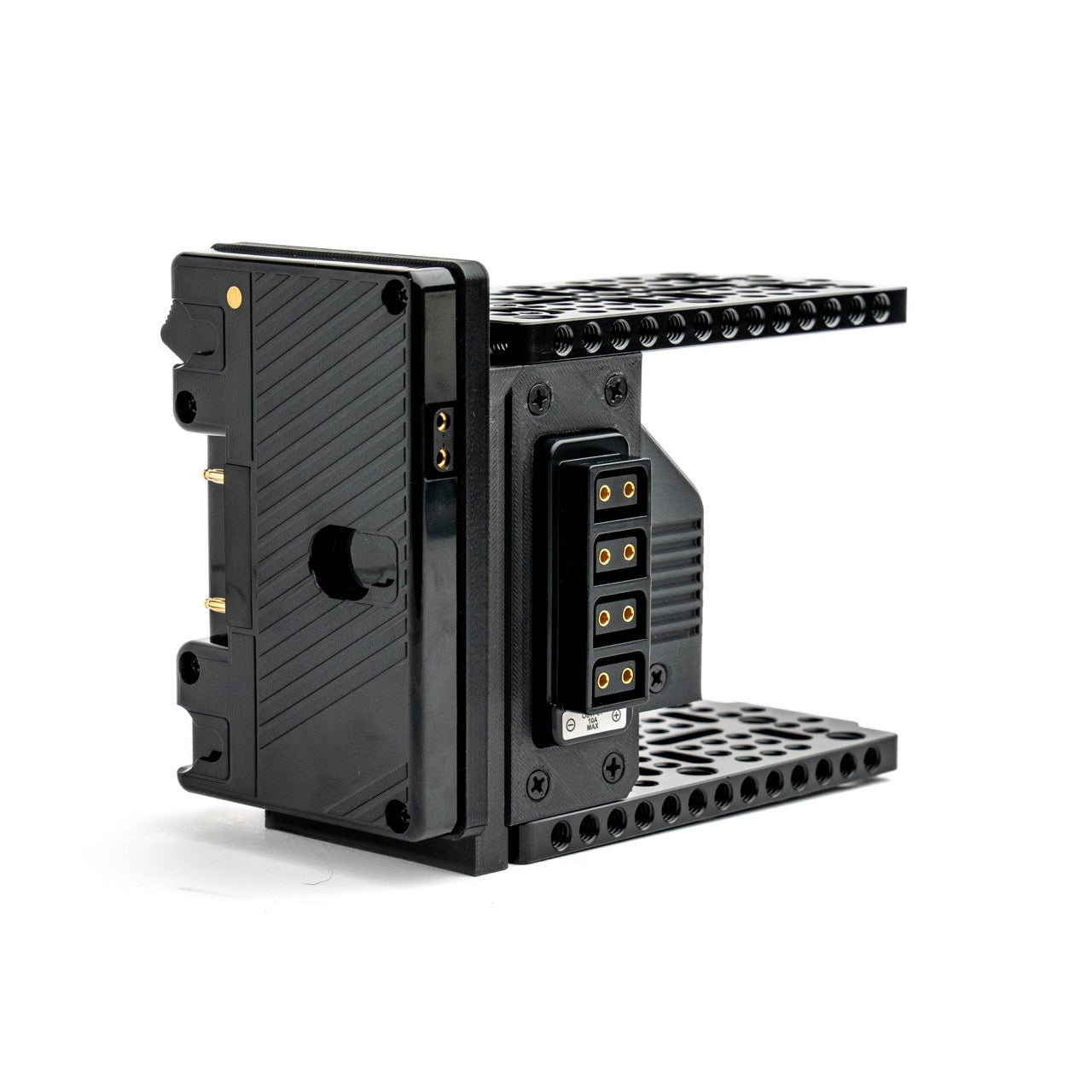

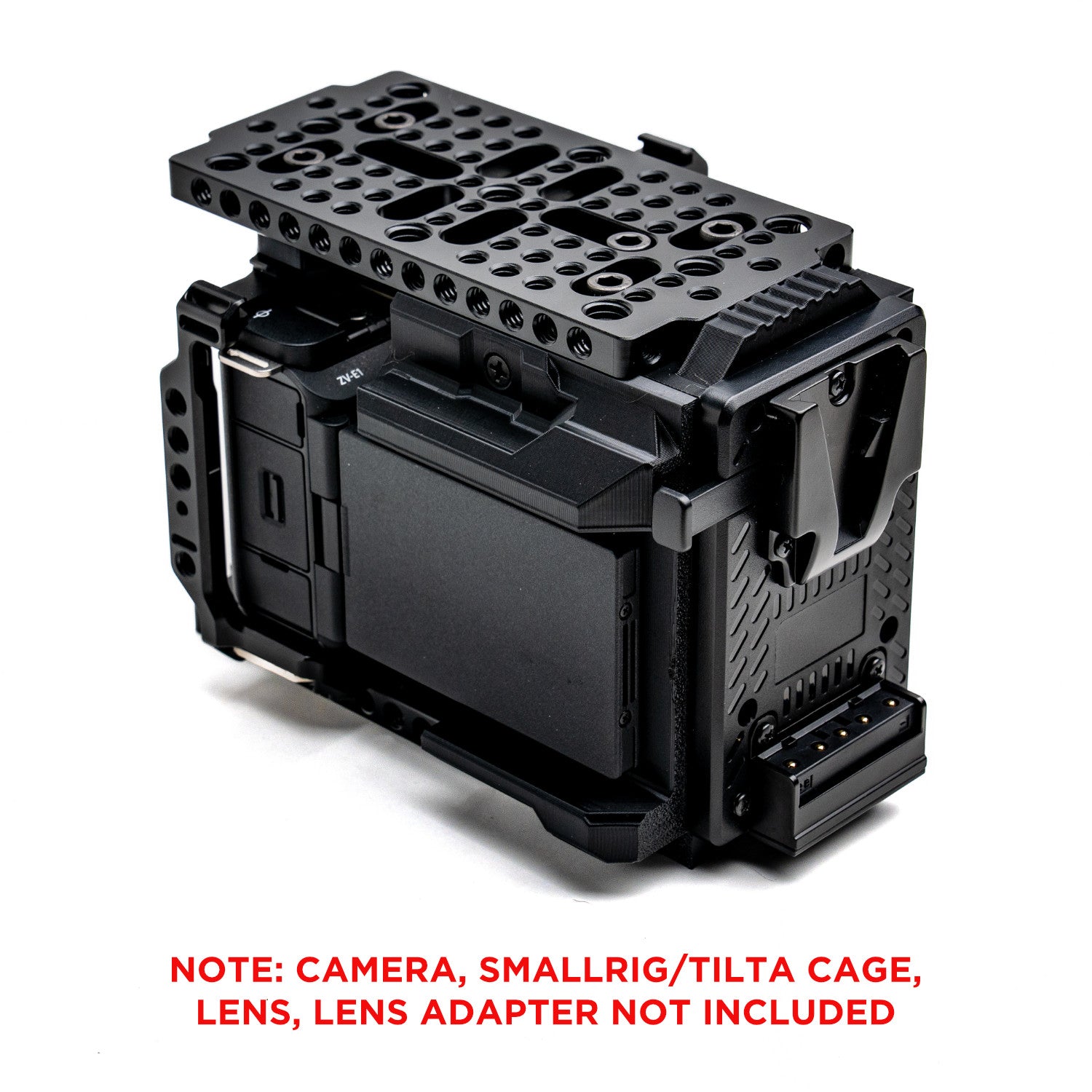

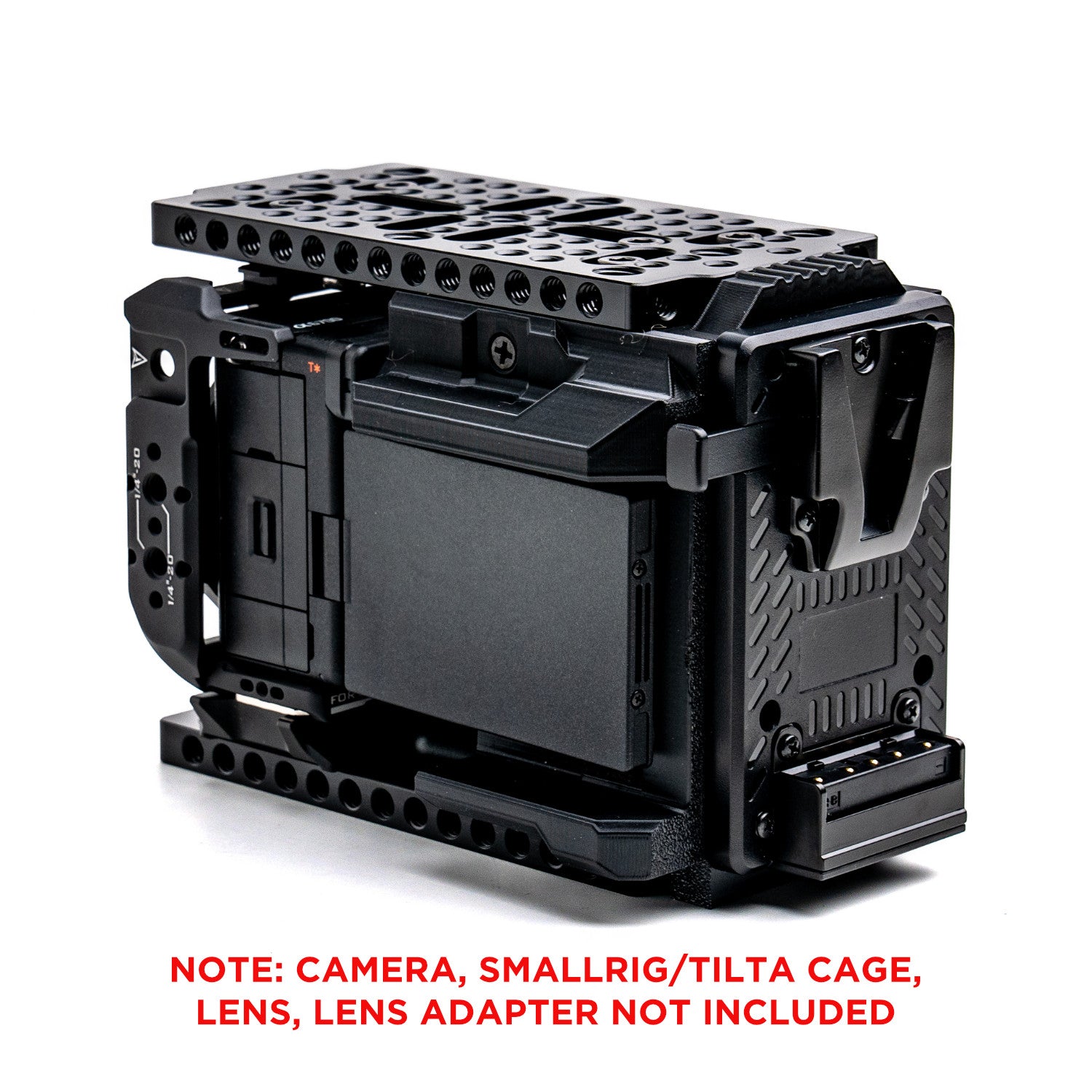

• V-Mount or Gold Mount battery plate for longer run time

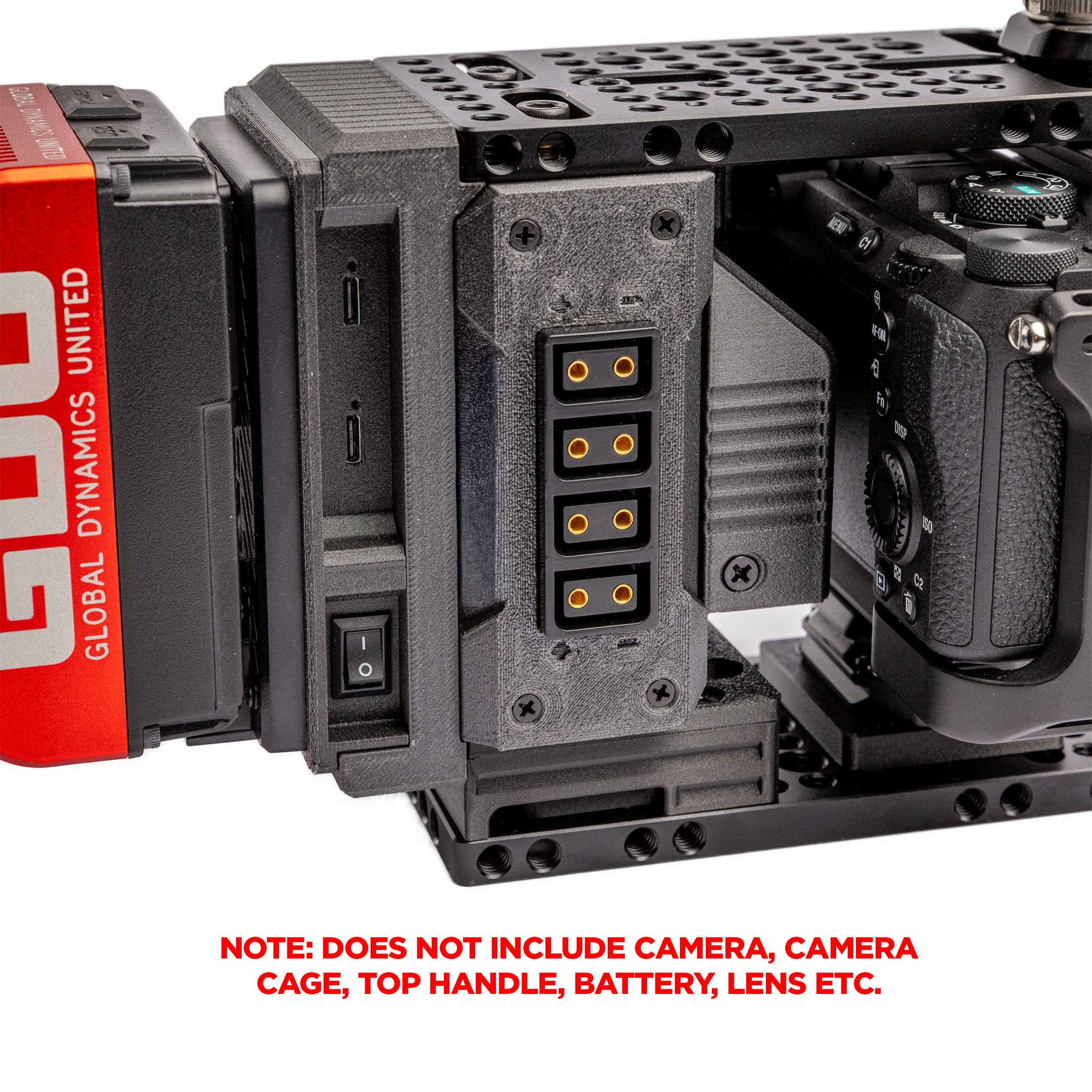

• Dual USB-C Power Delivery power jacks for powering your camera and other devices (right angle USB-C cables here)

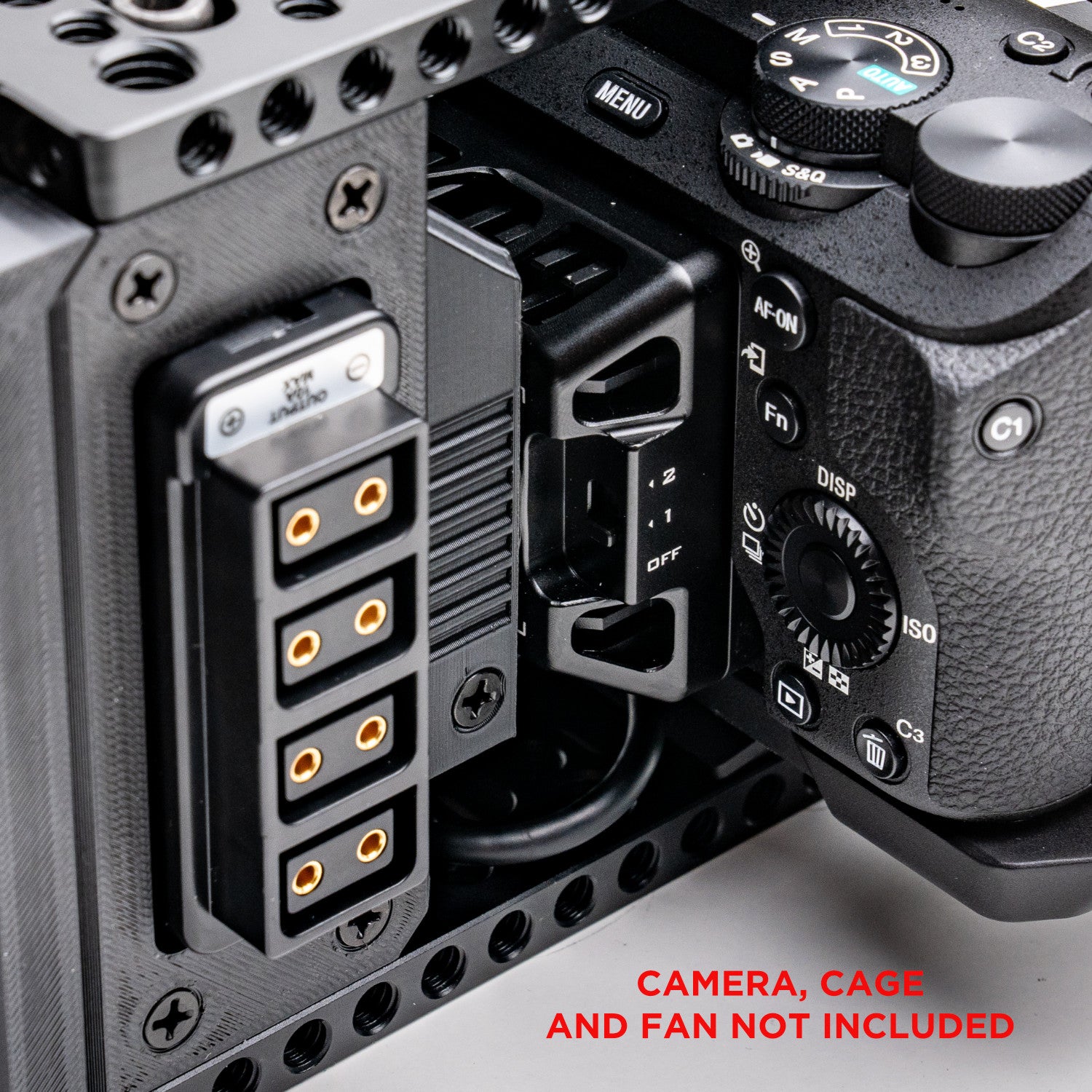

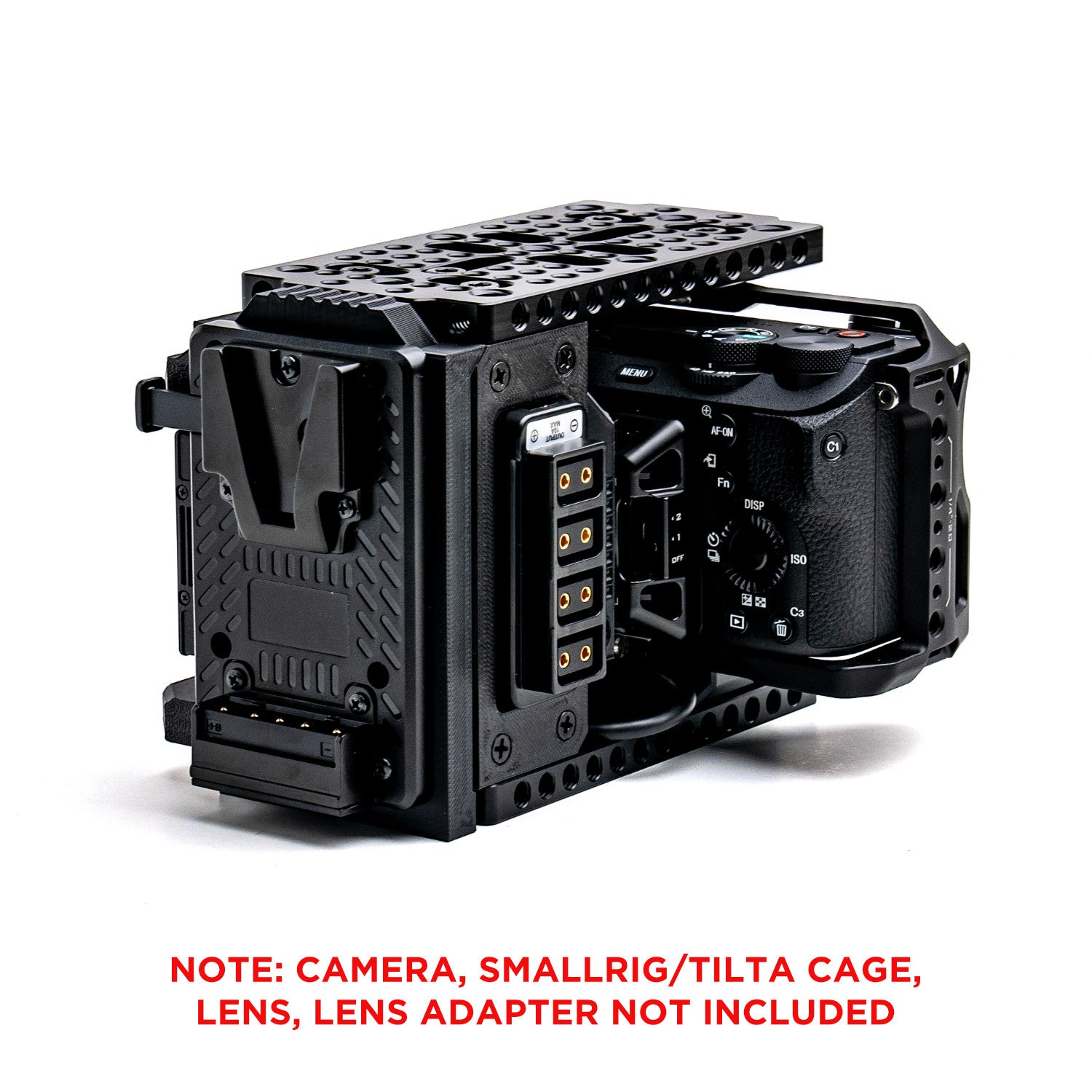

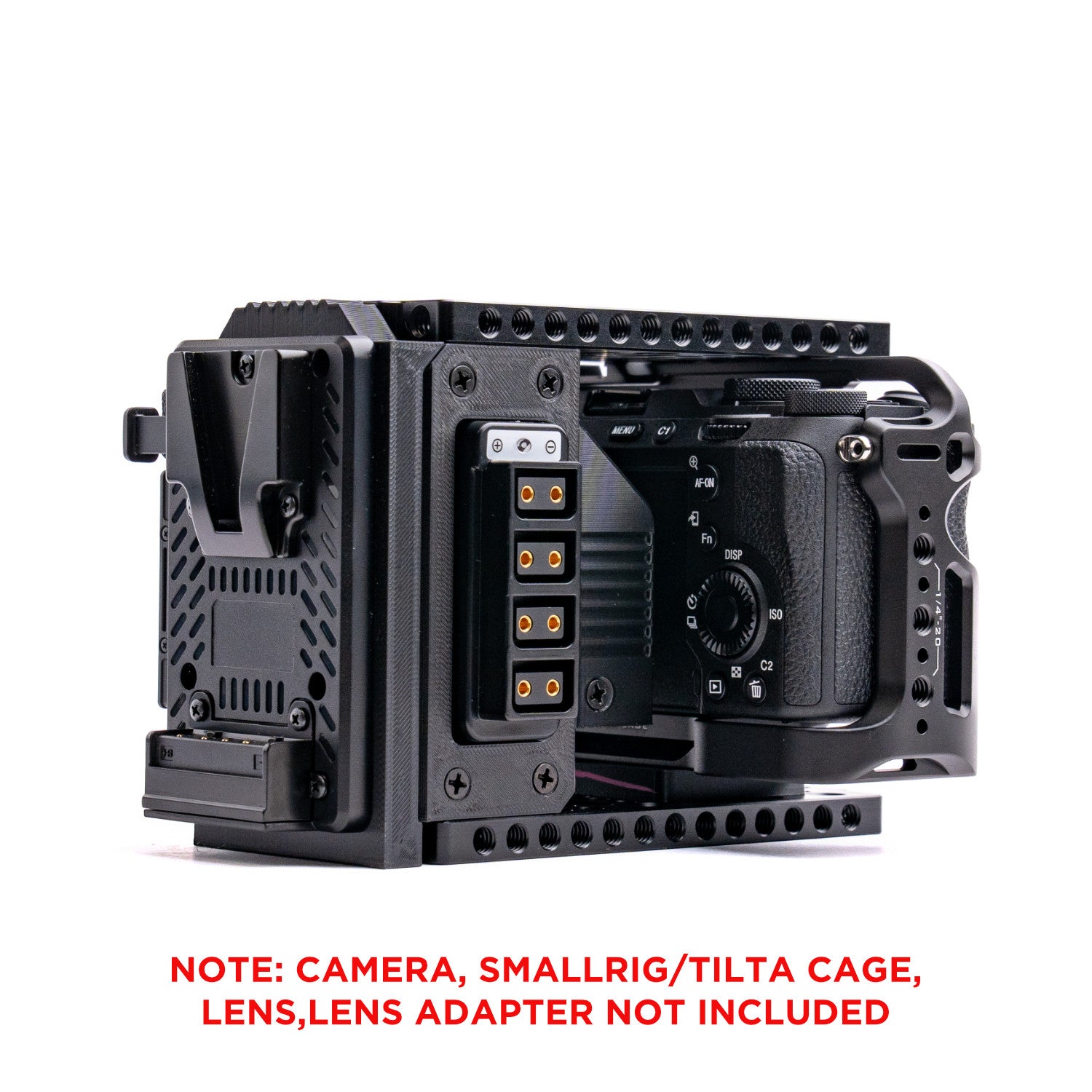

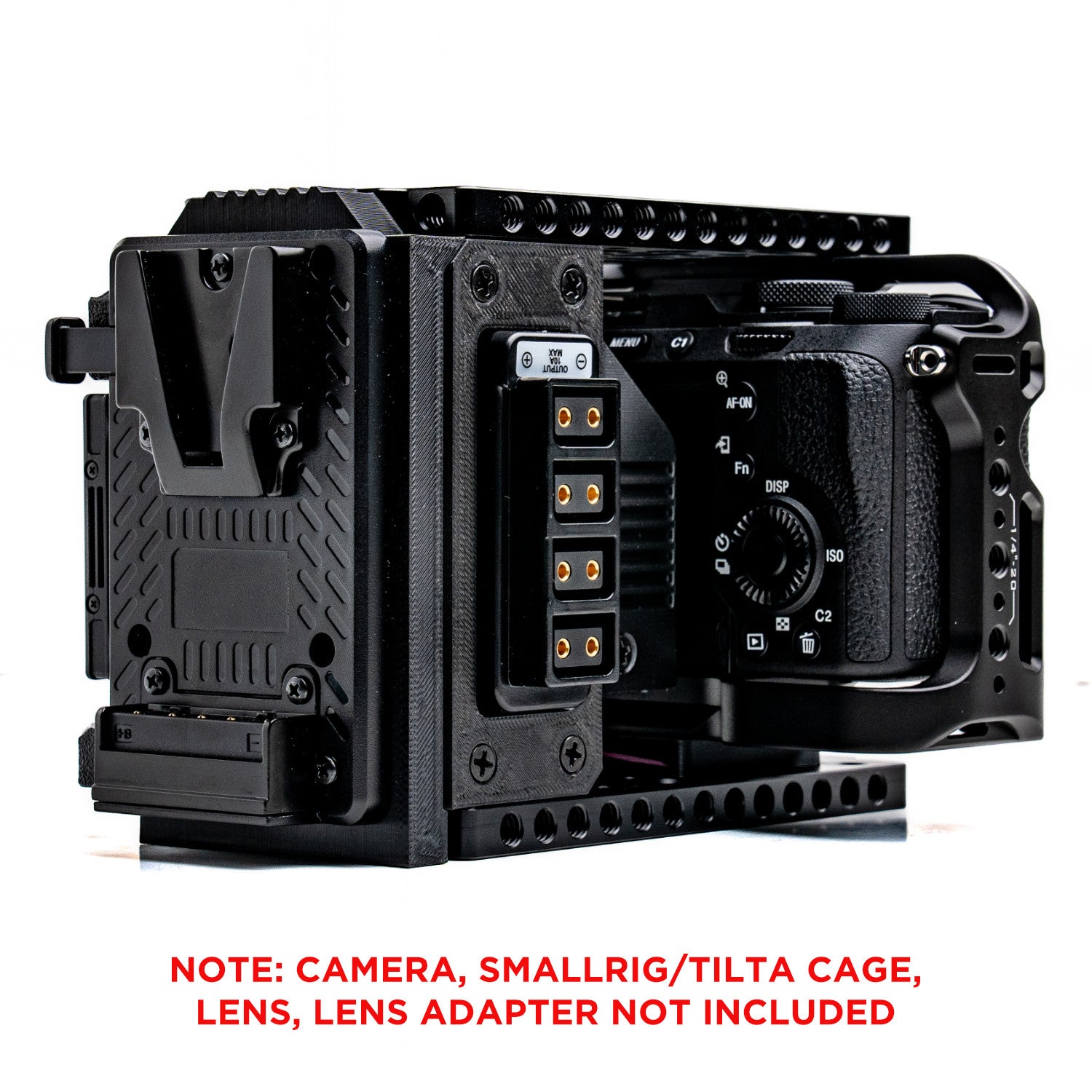

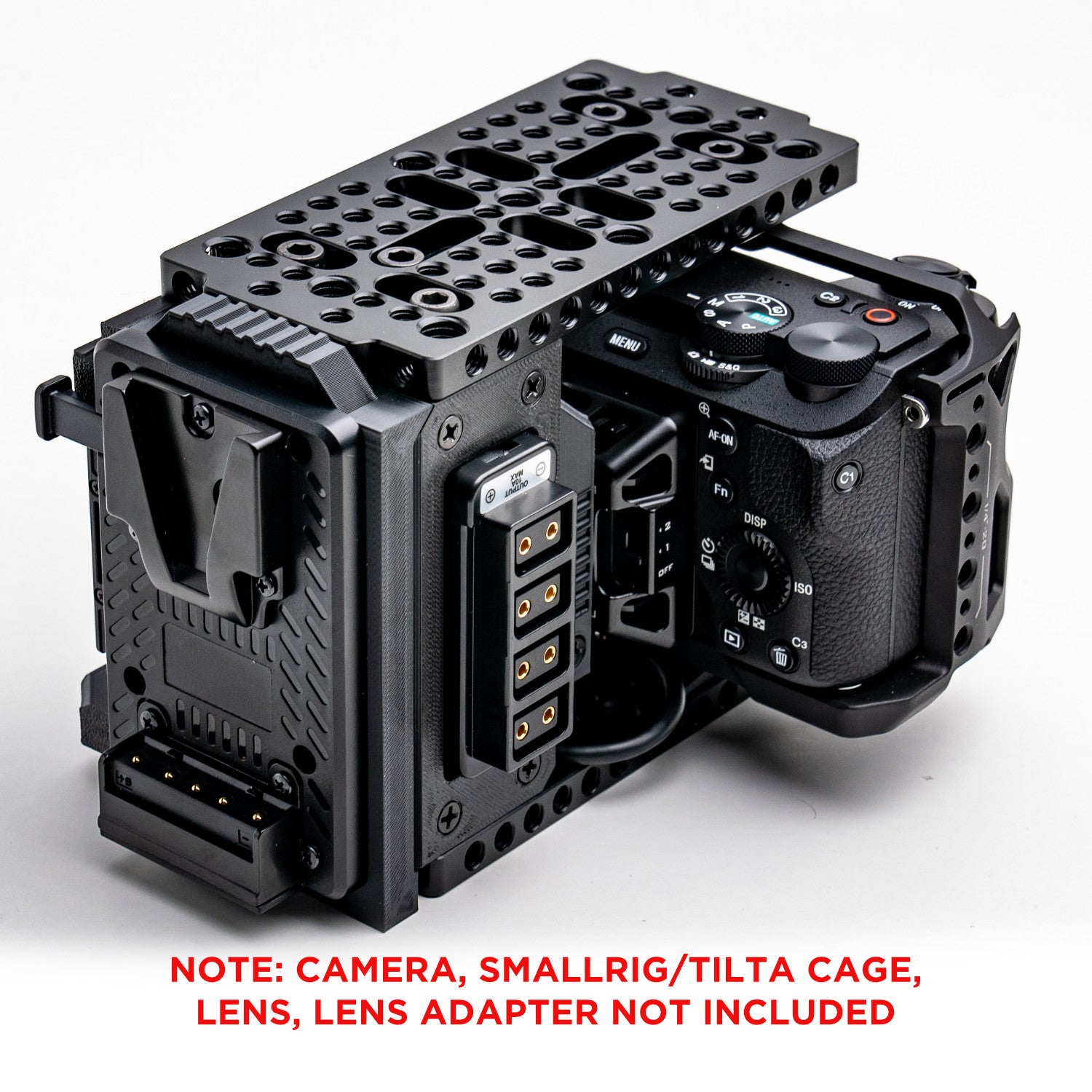

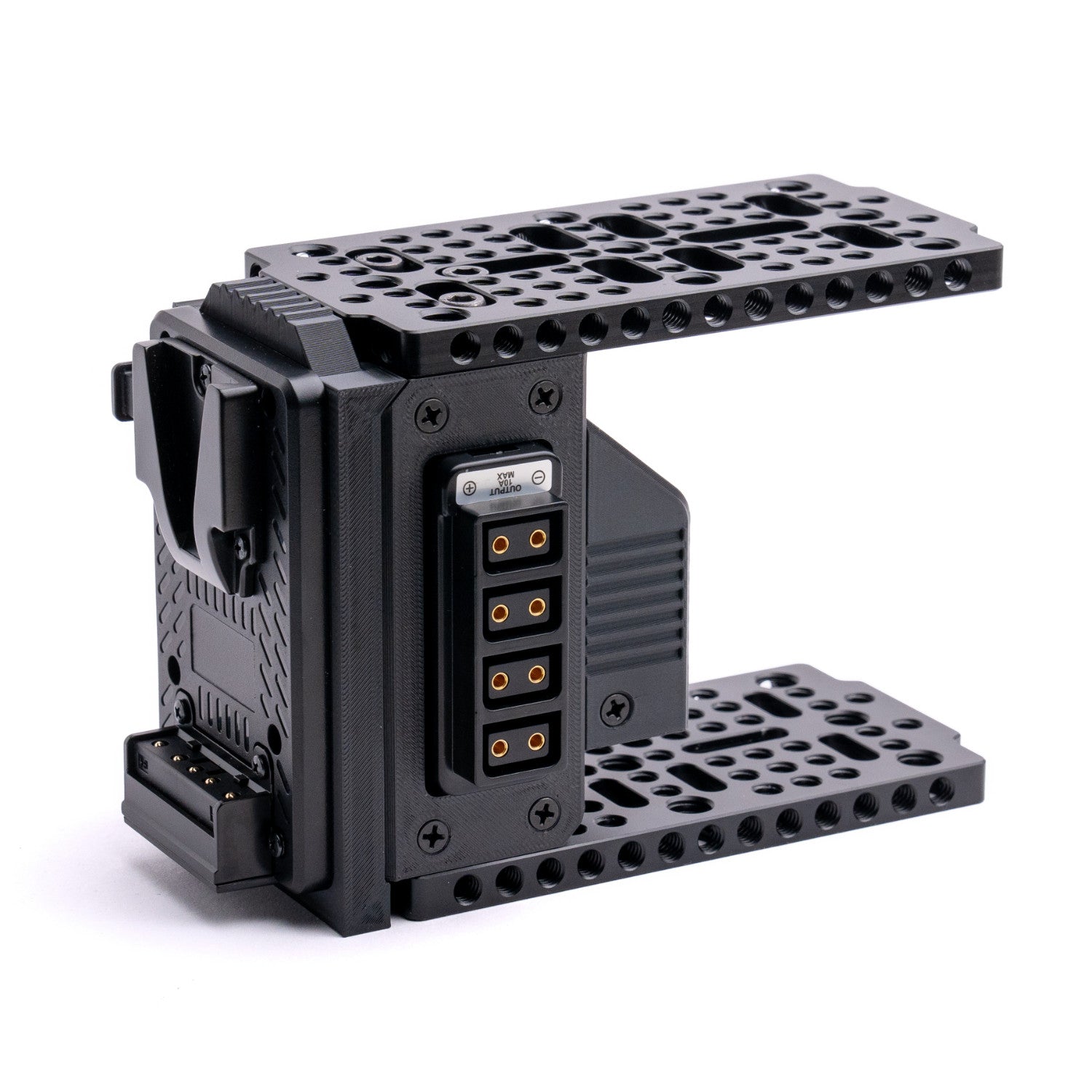

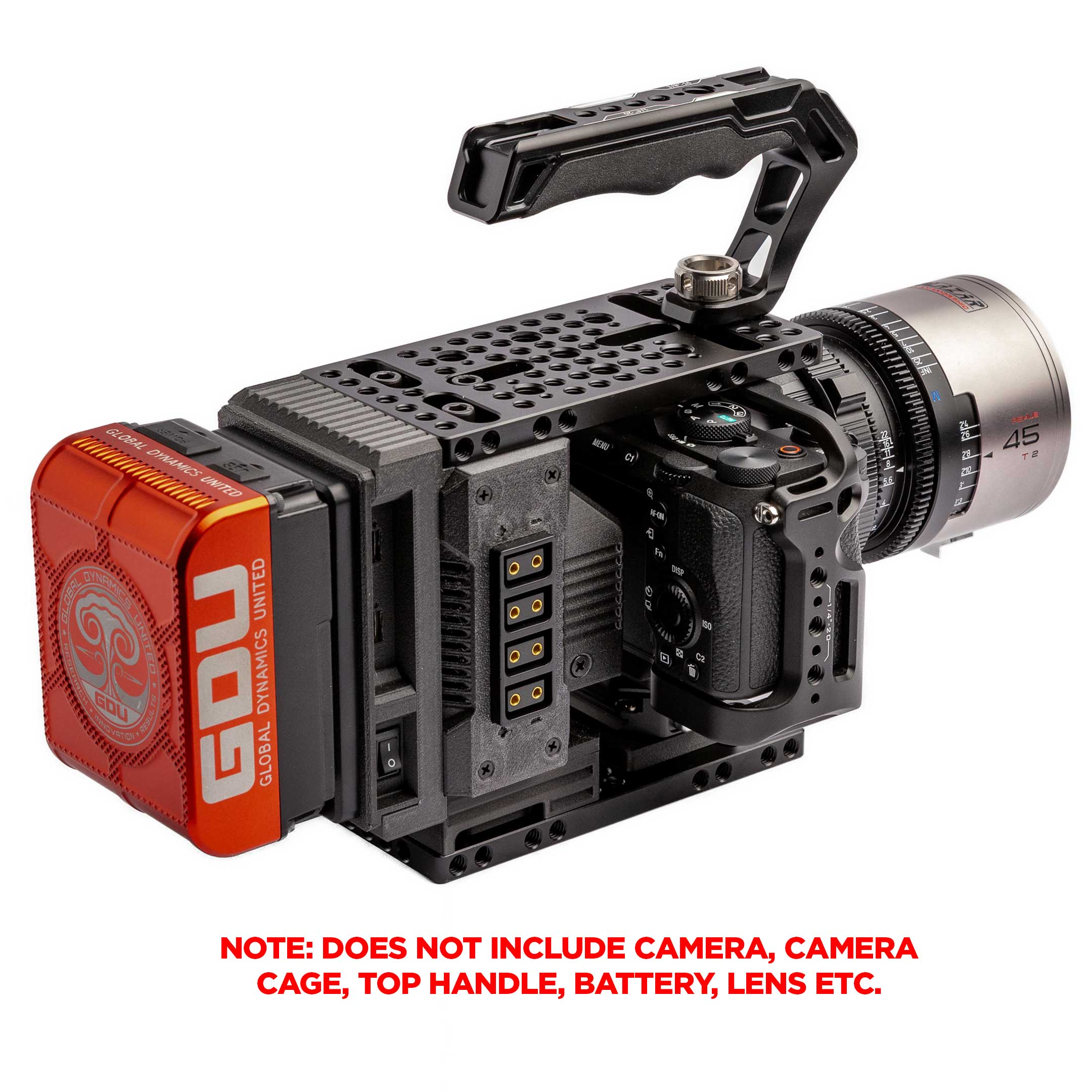

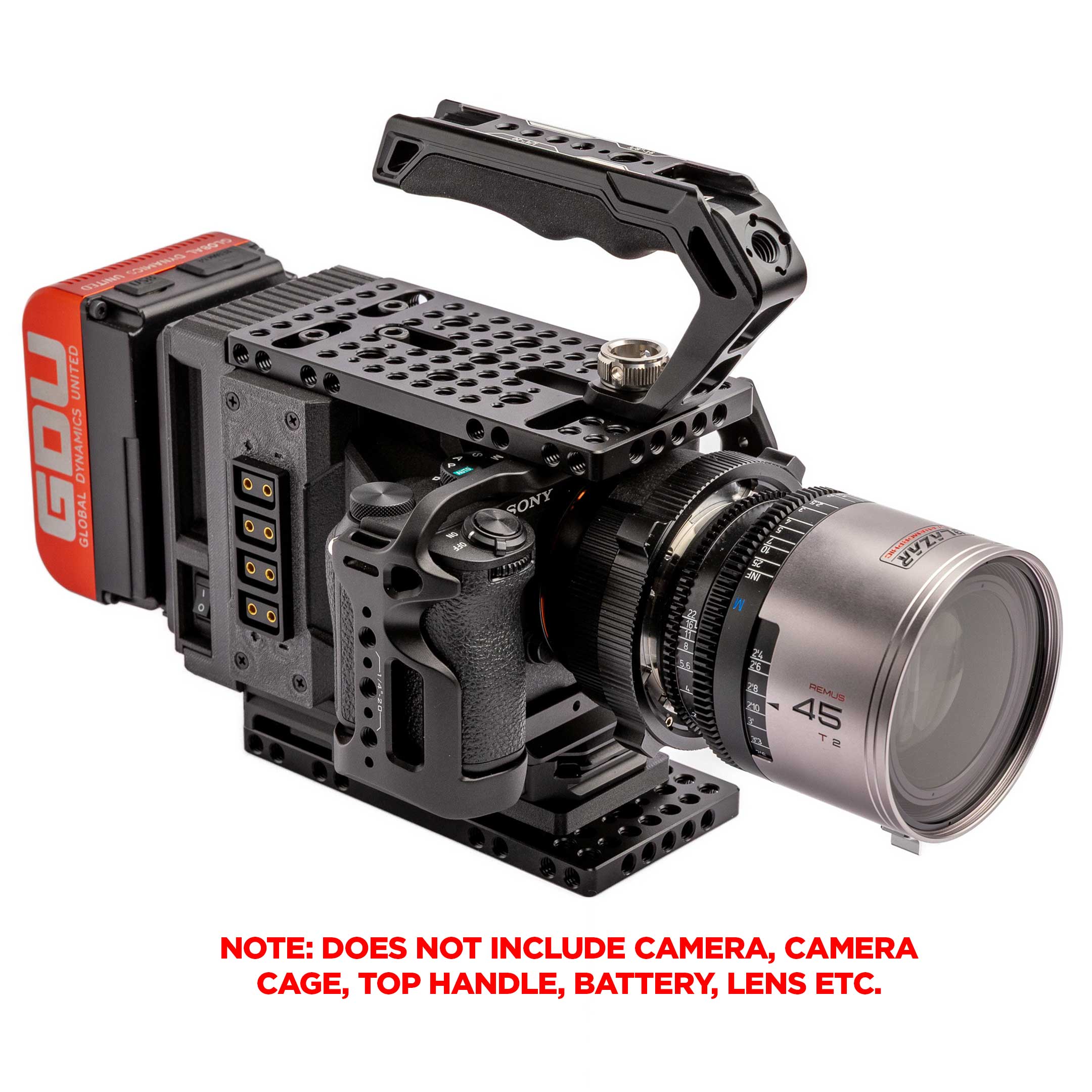

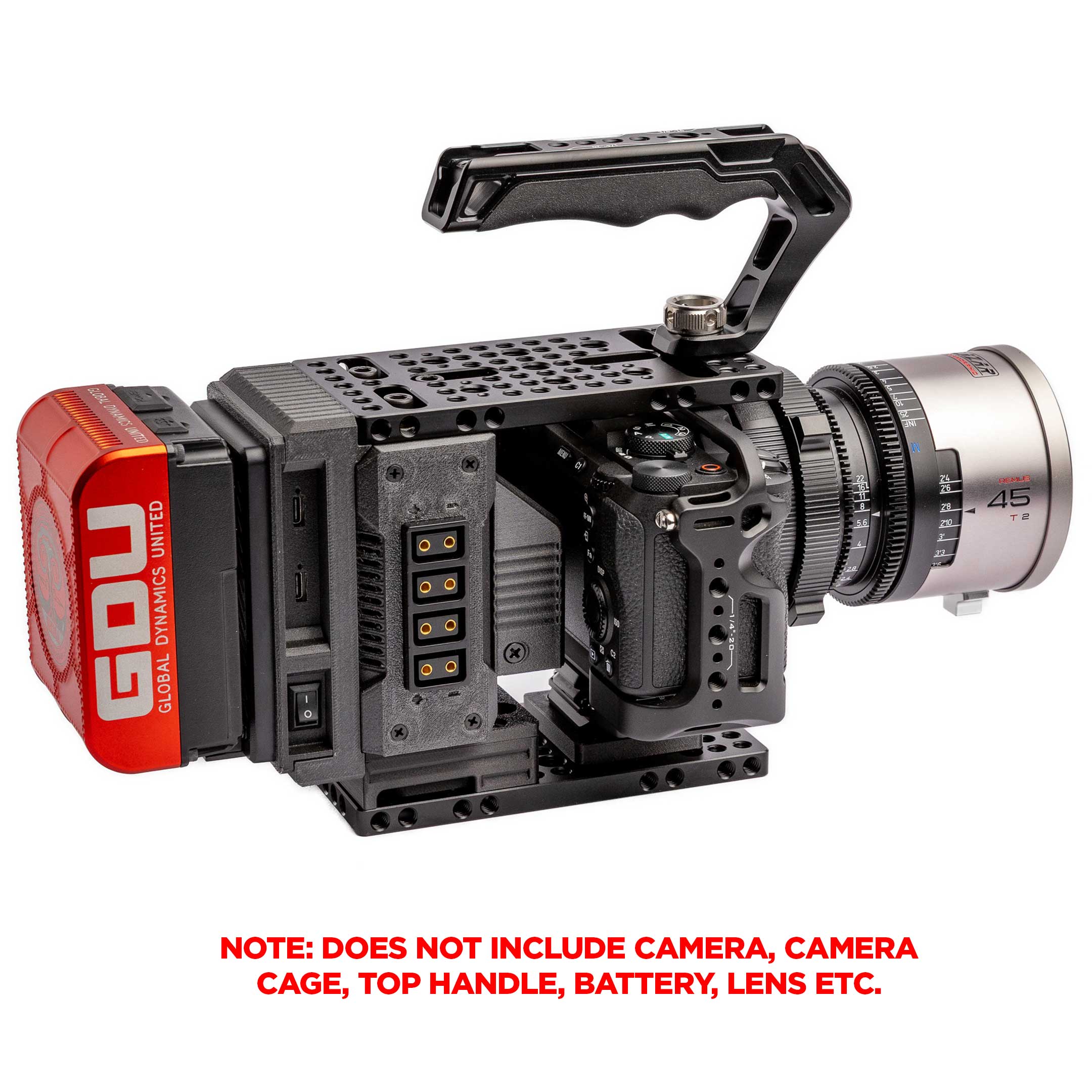

• Rotating D-Tap splitter with 4 outputs to power your camera and other accessories
• Compatible with the CineBack® Quick Release Module

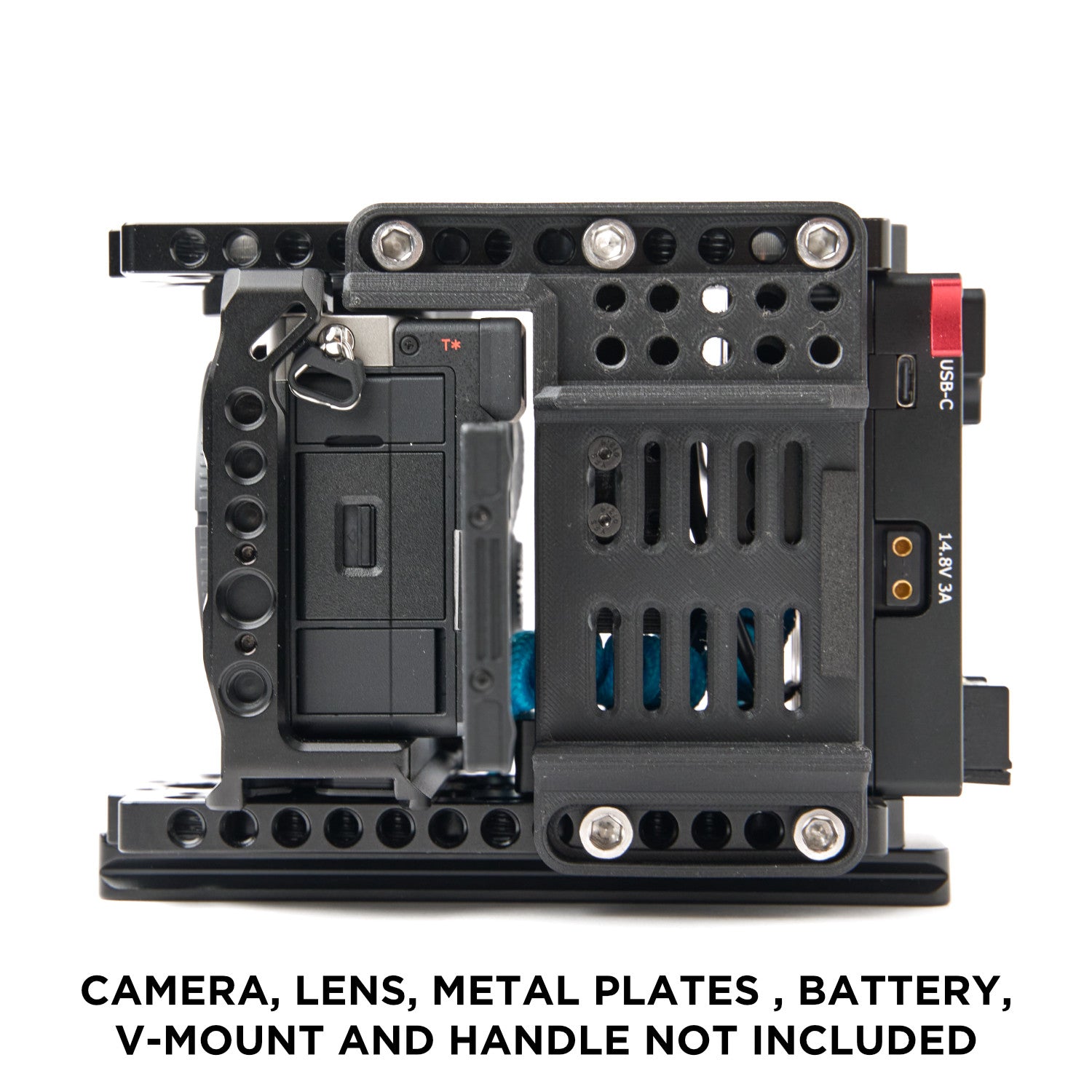

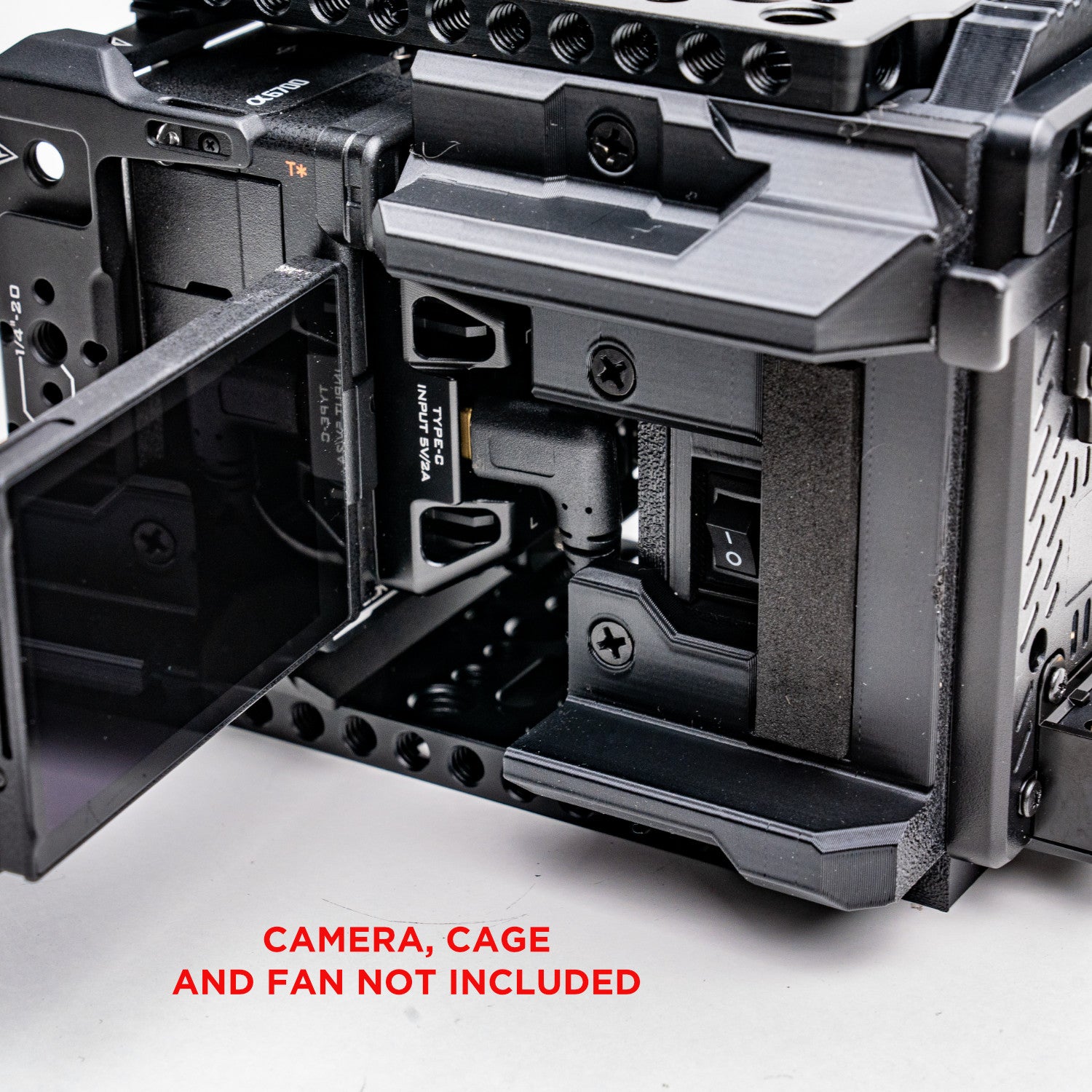

• Cable management and storage compartment and with cable routing built in (check out our USB-C right angle cables here)
• Power switch to completely cut power so there is no battery drain

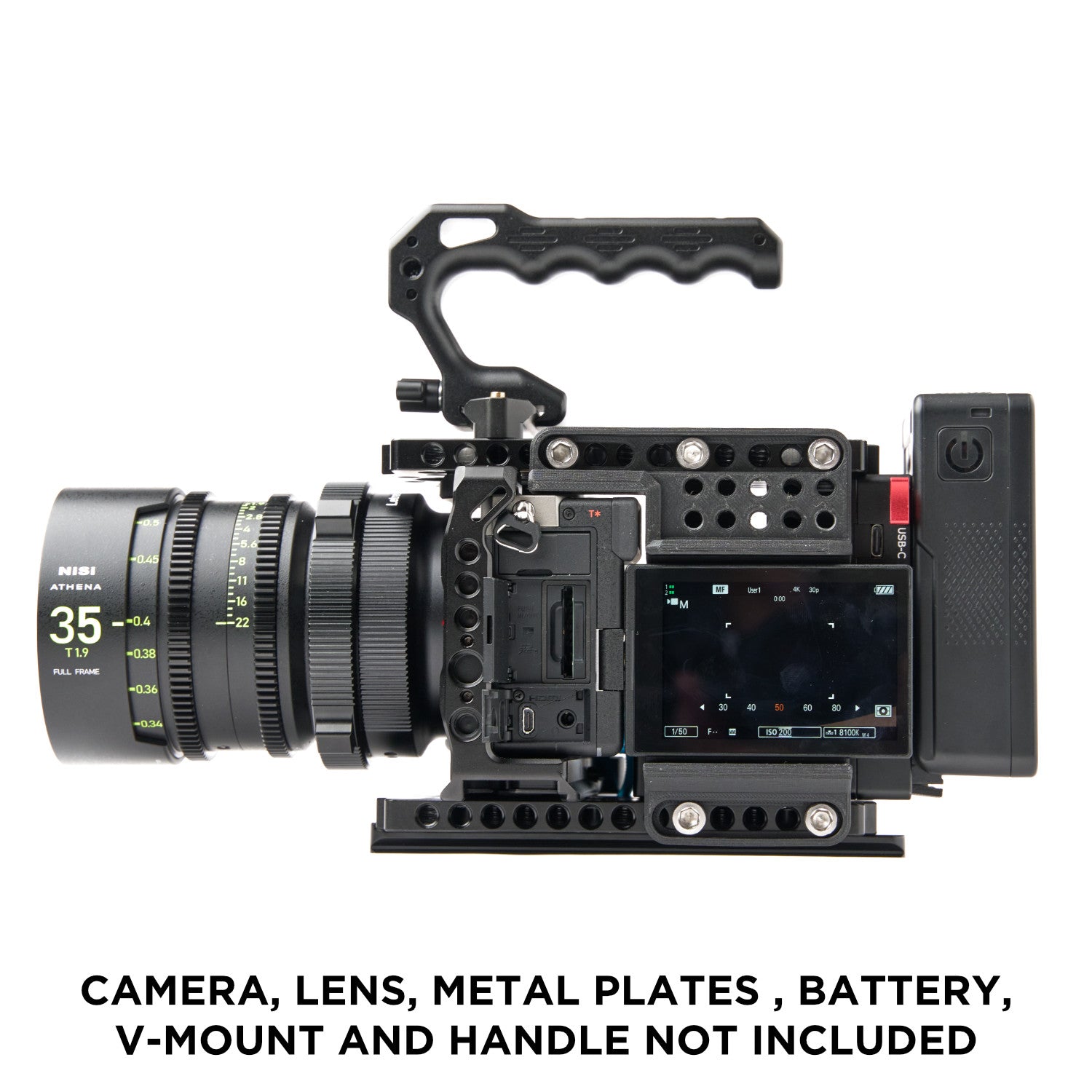

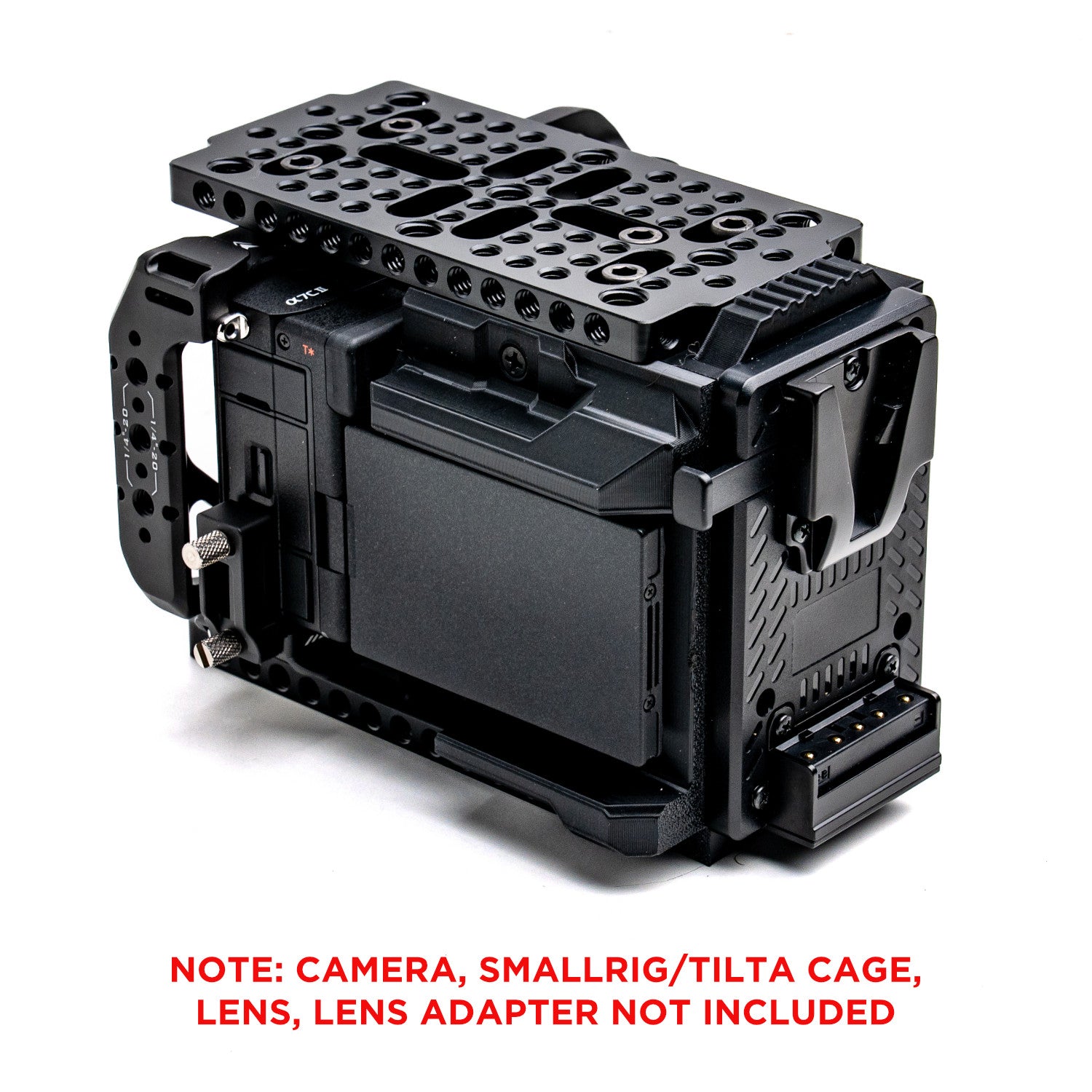

• Screen side mount allowing you to use your camera screen in cine mode, open or closed
• Top and bottom cheese plates for mounting accessories and other rigging gear
• Modular with future accessories possible (see all CineBack® accessories here)
• Compatible with the Tilta Cooling fan for a6700 (Fan only compatible with the Sony a6700)

Power Cables

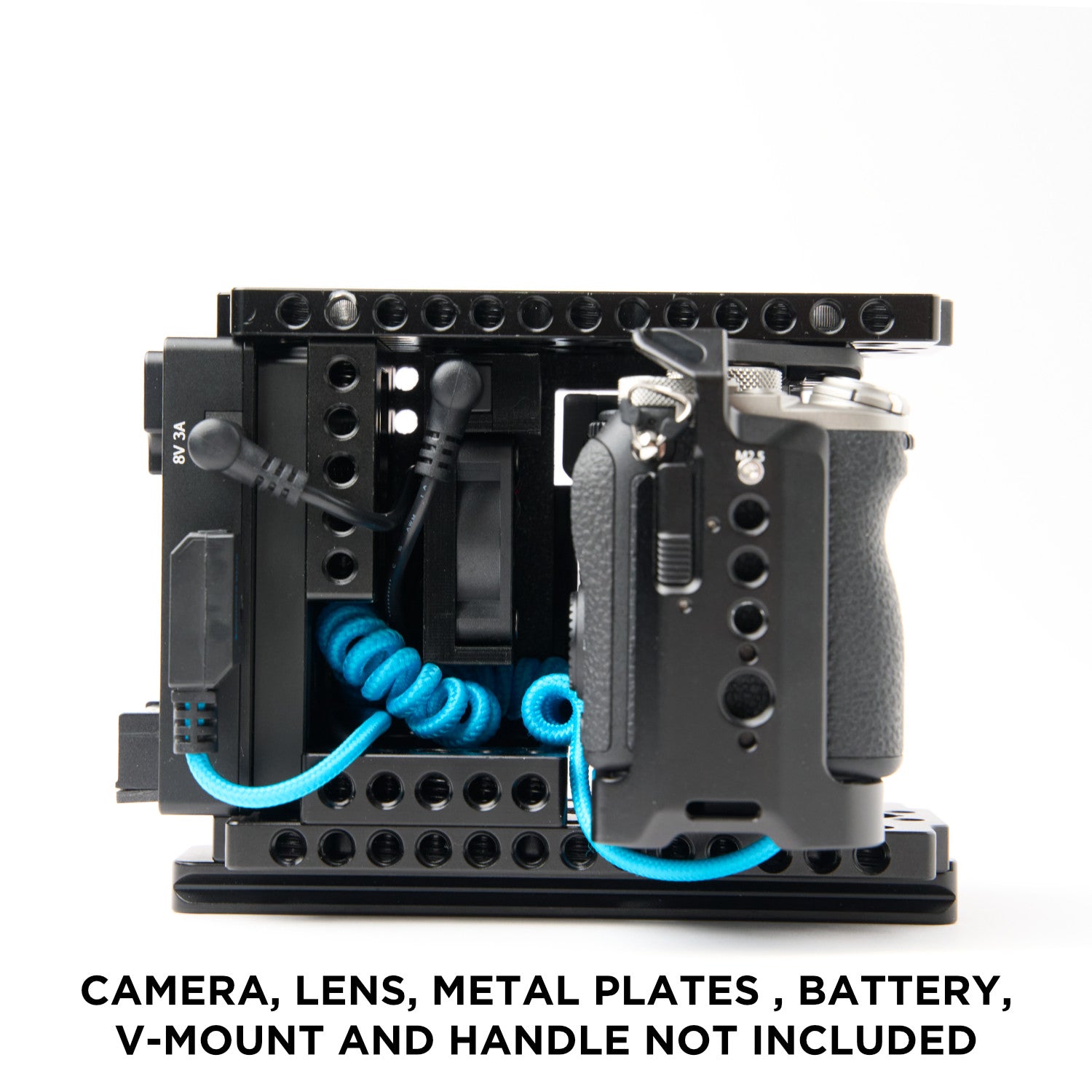

You can power the camera from via the USB-C Power Delivery jacks on the side using our right angle USB-C cables which are the perfect length for CineBack®. Alternatively yo can also use the D-Tap jacks on CineBack® with a D-Tap dummy battery to power your camera.

Quick Release Compatibility

• Quick Release Module - This spacer kit allows you to use the Falcam F38 Quick Release Plate.
• Falcam F38 Quick Release Combo  - Use this with the Quick Release Kit mentioned above to add quick release functionality to your CineBack®

Specifications

• USB-C Jack (Each)
• Output: Automatically adjusts between 3.3V~12V when connected to USB-C PD (Power Delivery) compatible devices
• 36W max with standard 14-16V v-mount batteries and 65W max with 26V v-mount batteries
• Output over-current protection
• Short-circuit protection
• Over-temperature protection
• D-Tap 4x Splitter
• Output: Whatever voltage you connect to the V-Mount or Gold Mount. Often 14.8v
• 10A Max output current.
